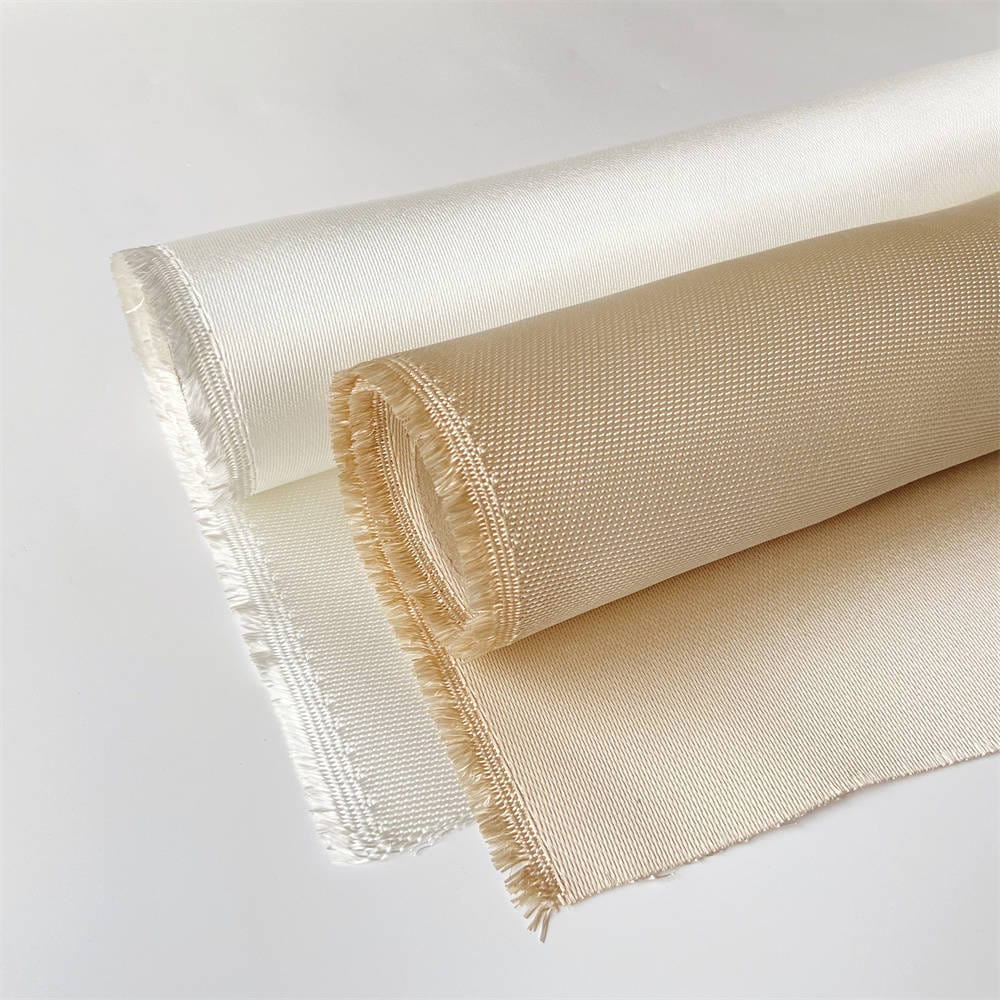

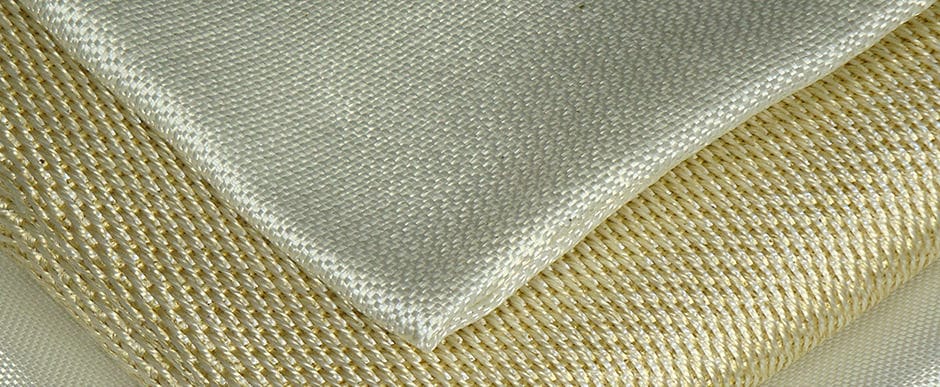

High Silica Fabric
1. Product Overview
High silica fabric is a specialized high-performance industrial textile woven from high-purity silica fibers containing a minimum of 96% SiO₂. It is engineered to withstand extreme continuous temperatures up to 982°C (1800°F) and short-term thermal surges without melting, shrinking, or losing structural integrity. With low thermal conductivity and exceptional chemical stability, it provides a reliable, high-temperature protective barrier against severe radiant heat, welding spatter, and molten metal splash in demanding industrial and aerospace environments.
2. Core Technical Parameters
-
Base Substrate: High-purity silica fibers (Minimum 96% SiO₂)
-
Operating Temperature: Continuous resistance up to 982°C (1800°F)
-
Key Characteristics: Extreme heat resistance, low thermal conductivity, excellent chemical stability, low smoke emission, minimal thermal shrinkage, high flexibility and conformability
3. Common Applications
-
Heavy-duty welding blankets, stress-relieving thermal pads, and molten metal splash protection curtains
-
Aerospace thermal barriers, exhaust insulation, and rocket launch pad protection shields
-
High-temperature industrial furnace curtains, insulating blankets, and molten metal transport system linings
-
Automotive heat shields, firewalls, and protective covers in high-temperature engine zones
