0.8mm Matte Grey Double Sided Silicone Coated Fiberglass Fabric
1. Product Overview

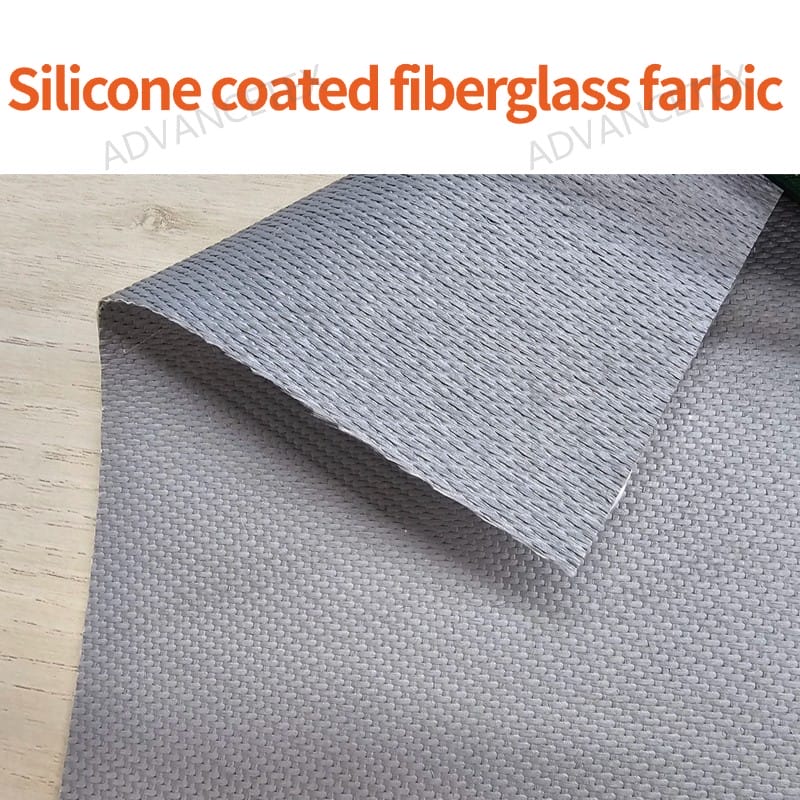

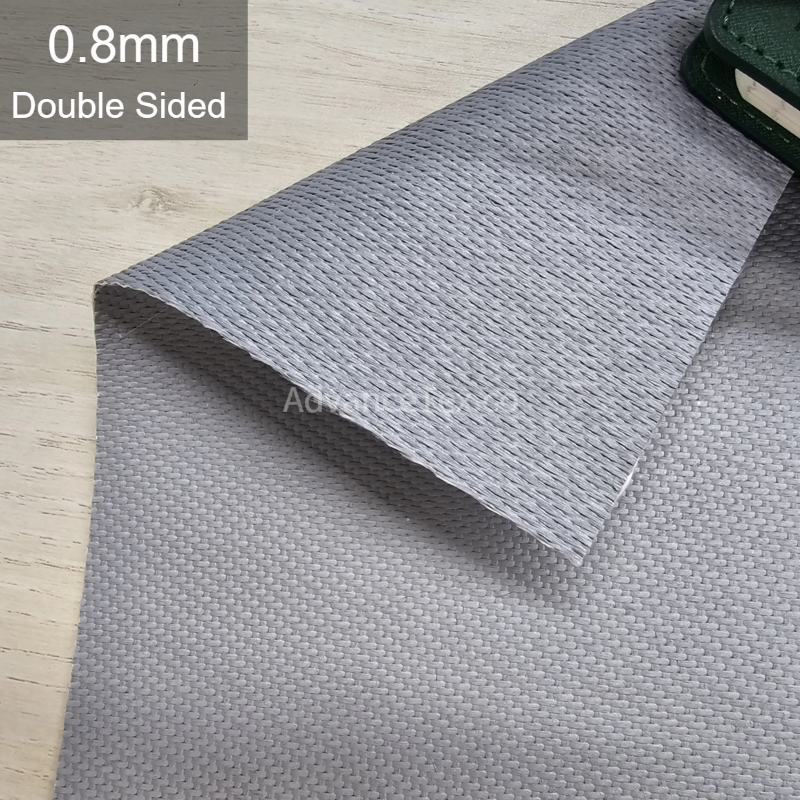

0.8mm matte grey double-sided silicone coated fiberglass fabric is an engineered composite constructed from a high-density woven E-glass substrate encapsulated symmetrically on both sides with liquid silicone rubber. The 0.8mm thickness provides exceptional tensile strength, puncture resistance, and tear durability under continuous mechanical vibration and stress. The non-reflective matte grey finish eliminates glare in brightly lit power generation plants, marine engine rooms, and industrial processing zones. Bilateral encapsulation seals the fiberglass filaments completely to prevent fiber fraying and airborne particulate shedding, forming a non-porous barrier against water, steam, hydraulic oils, and chemical vapors.
2. Core Technical Parameters
-
Base Fabric: High-density woven E-glass (fiberglass) filament cloth
-
Coating Structure: Double-sided liquid silicone rubber (Bilateral matte non-reflective finish)
-
Surface Color: Industrial Matte Grey (both sides)
-
Nominal Thickness: 0.8mm
-
Operating Temperature: -50°C to +260°C (Intermittent/Peak up to +280°C)
-
Key Characteristics: Non-reflective matte texture, high tensile and tear strength, dual-sided moisture and oil barrier, flame retardant, weather and ozone resistant, non-fraying sealed edge, flexible stitchability
3. Common Applications
-
Outer and inner jacketing for heavy-duty removable thermal insulation blankets, covers, and turbine jackets
-
High-temperature fabric expansion joints and flexible duct connectors operating under severe vibration and dynamic mechanical stress
-
Industrial fire containment curtains, smoke barriers, and spark-deflecting welding drop blankets
-
Flange protection spray shields, high-temperature equipment covers, and die-cut heat-resistant sealing gaskets
