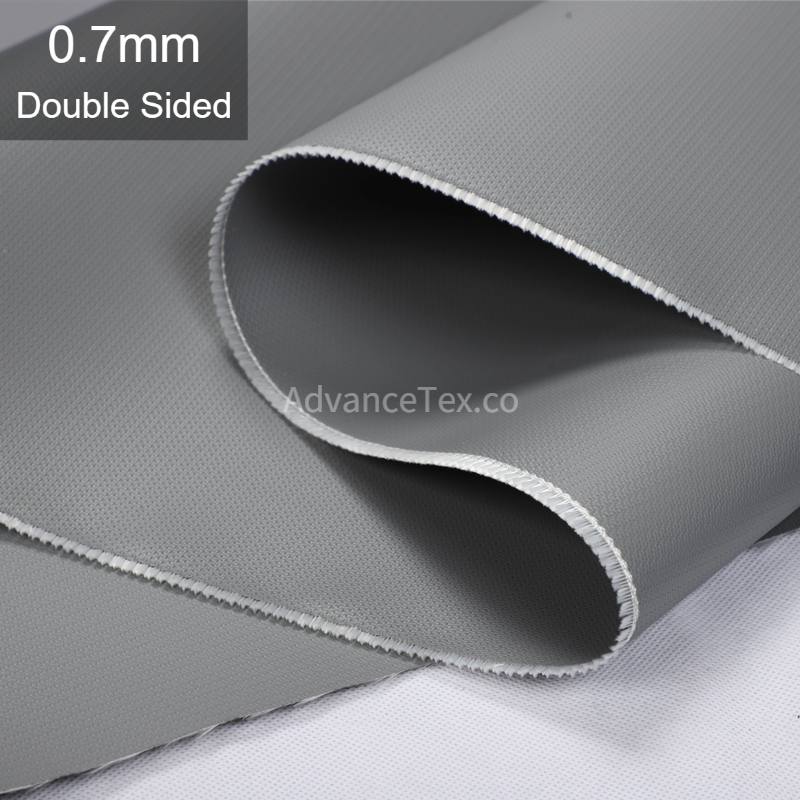

0.7mm Matte Grey Double Sided Silicone Coated Fiberglass Fabric
1. Product Overview
0.7mm matte grey double-sided silicone coated fiberglass fabric is an engineered industrial composite constructed from a high-density woven E-glass substrate coated symmetrically on both sides with liquid silicone rubber. The 0.7mm construction provides superior mechanical tensile and tear strength for high-stress applications. The non-reflective matte grey finish eliminates surface glare in brightly lit work areas, engine rooms, and plant environments. Bilateral encapsulation seals the fiberglass filaments completely to eliminate fiber shedding and edge fraying, delivering an impermeable barrier against water, steam, industrial oils, and chemical vapors while retaining flame-retardant performance and flexible sewability.
2. Core Technical Parameters
-
Base Fabric: Woven E-glass (fiberglass) filament cloth
-
Coating Structure: Double-sided liquid silicone rubber (Bilateral matte non-reflective finish)
-
Surface Color: Industrial Matte Grey (both sides)
-
Nominal Thickness: 0.7mm
-
Operating Temperature: -50°C to +260°C (Intermittent/Peak up to +280°C)
-
Key Characteristics: Non-reflective matte texture, high tensile and tear strength, dual-sided moisture and oil barrier, flame retardant, weather and ozone resistant, non-fraying sealed edge, flexible sewability
3. Common Applications
-
Outer and inner jacketing for heavy-duty removable thermal insulation blankets, covers, and turbine jackets
-
Acoustic barrier panels, compressor sound-attenuation jackets, and engine room noise baffles requiring anti-glare facings
-
High-temperature fabric expansion joints and flexible duct connectors operating under continuous mechanical stress and vibration
-
Industrial fire curtains, smoke containment barriers, and die-cut heat-resistant sealing gaskets
