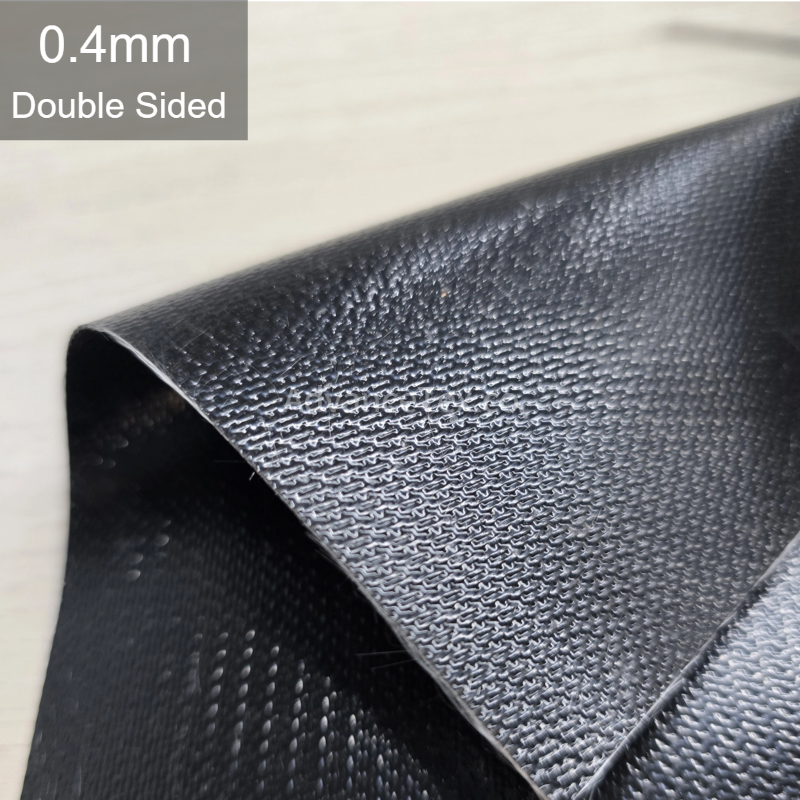

0.4mm Twill Weave Glossy Black Double Sided Silicone Coated Fiberglass Fabric
1. Product Overview
0.4mm twill weave glossy black double-sided silicone coated fiberglass fabric is an engineered industrial composite constructed from a high-tensile twill weave E-glass substrate coated on both sides with liquid silicone rubber. The diagonal twill weave pattern provides higher tear strength and greater directional conformability than standard plain weave, allowing the fabric to wrap snugly around complex geometries, valves, and flange elbows without wrinkling. The double-sided glossy black finish forms a non-porous, wipe-clean barrier against moisture, oils, lubricants, and chemical splashes while providing reliable flame retardancy.
2. Core Technical Parameters
-
Substrate Weave: High-density twill weave E-glass (fiberglass) cloth
-
Coating Structure: Double-sided liquid silicone rubber (bilateral glossy finish)
-
Surface Color: Glossy Industrial Black (both sides)
-
Nominal Thickness: 0.4mm
-
Operating Temperature: -50°C to +260°C (Intermittent/Peak up to +280°C)
-
Key Characteristics: High mechanical tear resistance, excellent drapability and contour conformability, dual-sided vapor/liquid barrier, flame retardant, weather and ozone resistant, flexible sewability
3. Common Applications
-
Removable thermal insulation jackets and mattress covers for complex piping, turbine casings, pumps, and valves
-
Marine and heavy equipment exhaust manifold heat shields and flexible insulation covers
-
High-temperature fabric expansion joints and flexible duct connectors requiring high tear strength and dynamic flexing
-
Industrial fire curtains, equipment splash aprons, and die-cut heat-resistant sealing gaskets
