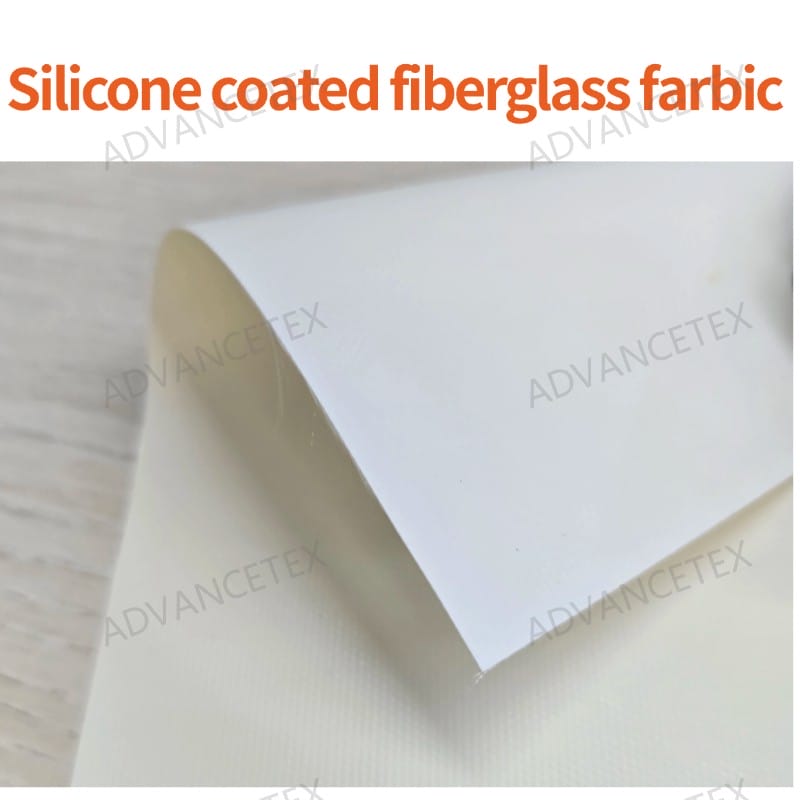

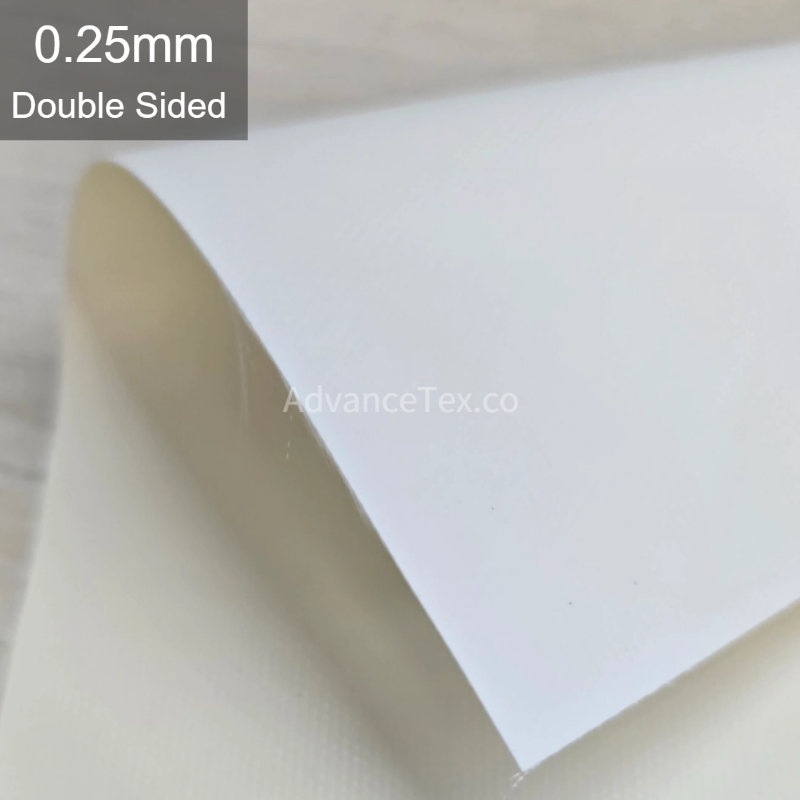

0.25mm White Double Sided Silicone Coated Fiberglass Fabric
1. Product Overview
0.25mm white double-sided silicone coated fiberglass fabric is an engineered industrial composite made by uniformly coating liquid silicone rubber onto both sides of a woven E-glass fabric substrate. The symmetrical coating seals the fiberglass matrix completely, preventing fiber shedding while delivering exceptional flexibility, seam stitchability, and an impermeable barrier against steam, water, oils, and mild chemicals. Its clean white surface is particularly suited for hygienic environments where visual inspection and contamination control are essential.
2. Core Technical Parameters
-
Base Fabric: Woven E-glass (fiberglass) filament cloth
-
Coating Structure: Double-sided liquid silicone rubber
-
Surface Color: White (both sides)
-
Nominal Thickness: 0.25mm
-
Operating Temperature: -50°C to +260°C (Intermittent/Peak up to +280°C)
-
Key Characteristics: Fiber-locking cleanroom surface, moisture and vapor barrier, chemical/oil resistant, flame retardant, high dielectric strength, easily sewn and fabricated
3. Common Applications
-
Removable thermal insulation jackets, valve covers, and mattress jackets in food, beverage, and pharmaceutical facilities
-
Flexible duct connectors, expansion joints, and vibration dampers for cleanroom HVAC systems
-
Commercial building smoke barrier curtains, fire containment screens, and draft curtains
-
Heat-resistant protective sleeves, flange covers, and die-cut non-metallic sealing gaskets
