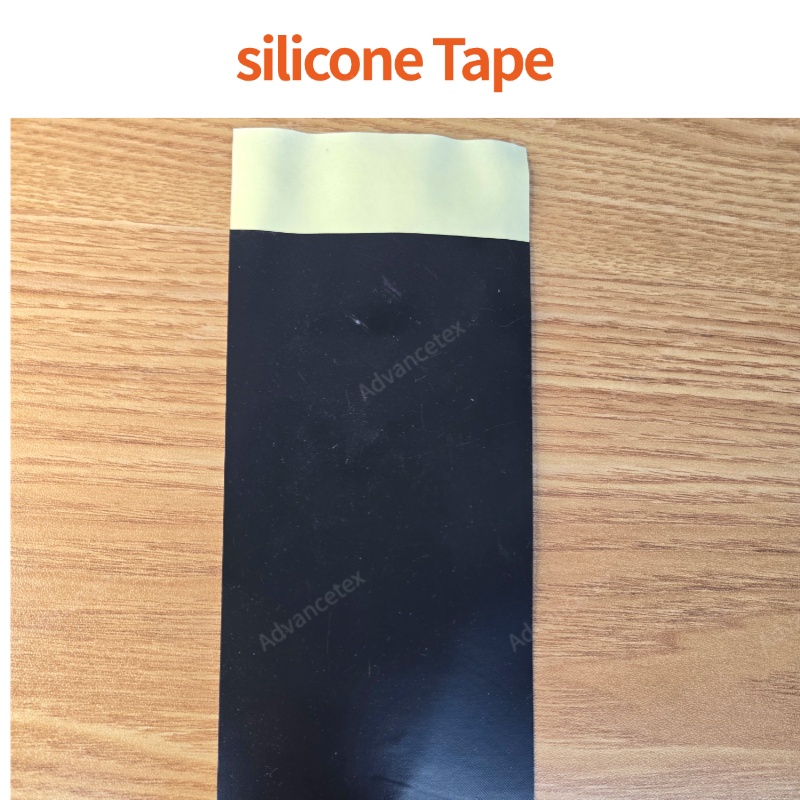

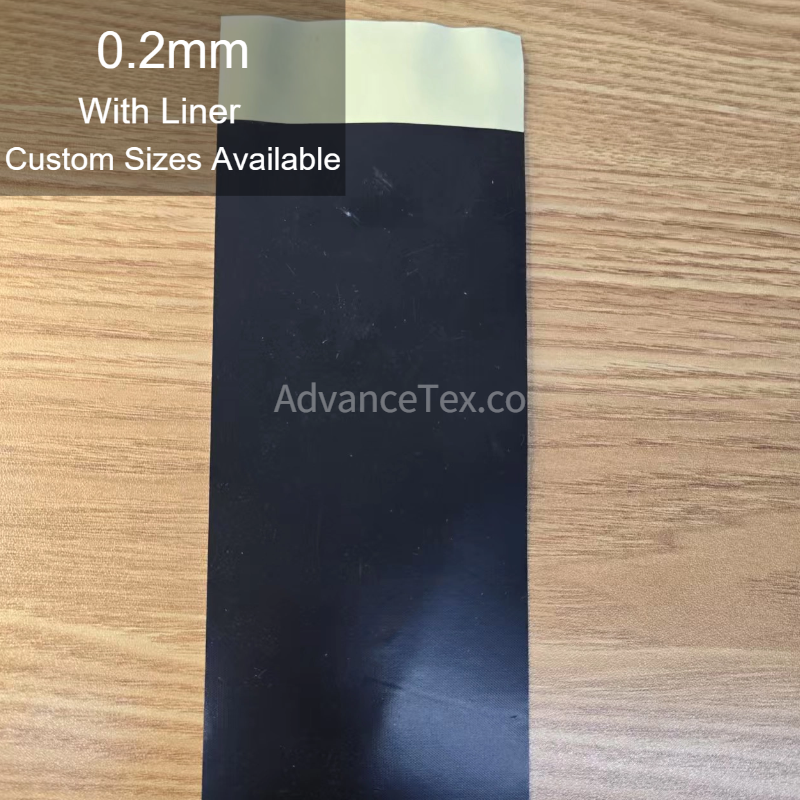

0.2mm Black Silicone Coated Fiberglass Tape (Yellow Liner)
1. Product Overview

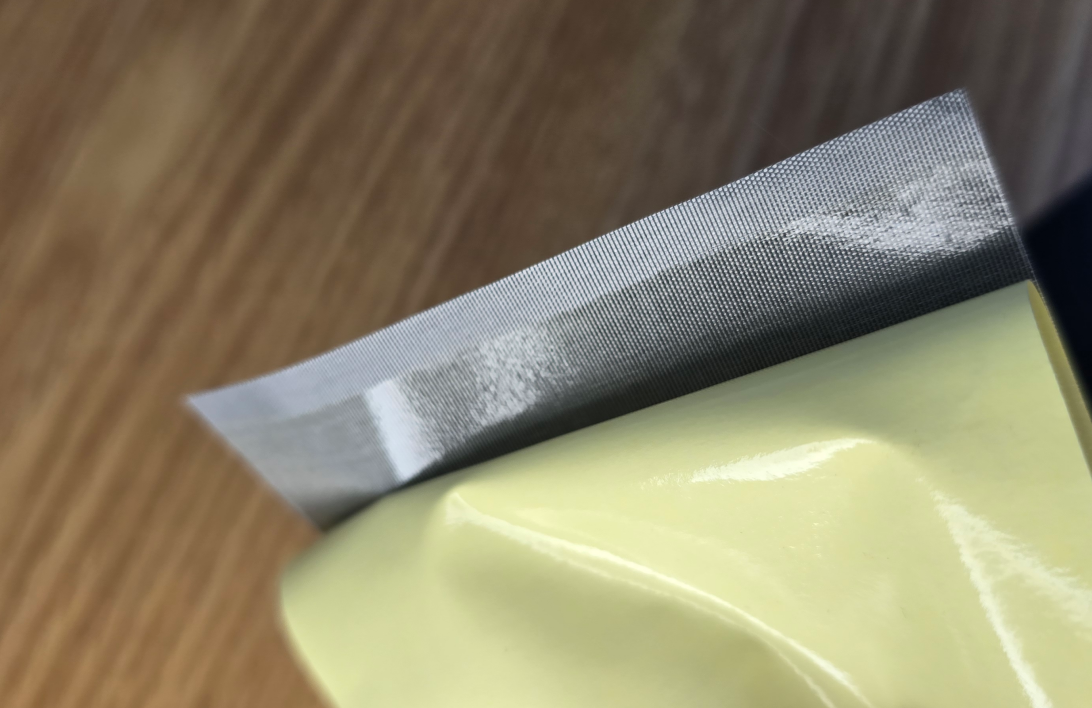

0.2mm black silicone coated fiberglass tape is engineered from high-tensile E-glass woven fabric coated with durable black liquid silicone rubber on one side and a high-performance pressure-sensitive adhesive on the reverse, laminated with a flat yellow release liner. The yellow release liner provides rigid backing and dimensional stability, preventing curling and deformation during manual alignment or high-speed die-cutting processes. The tape delivers an impermeable barrier against water, industrial oils, and harsh weather conditions while retaining flexibility across broad operating temperatures.
2. Core Technical Parameters
-
Base Fabric: Woven E-glass (fiberglass) filament cloth
-
Face Coating: Weather-resistant liquid silicone rubber (Black)
-
Adhesive System: High-temperature pressure-sensitive silicone adhesive
-
Liner Type: Flat yellow release liner (easy-peel)
-
Total Thickness: 0.2mm (nominal backing + adhesive)
-
Operating Temperature: -50°C to +260°C (intermittent up to +280°C)
-
Key Characteristics: Clean peeling with zero adhesive residue, dielectric strength, oil/moisture barrier, flame retardant, precision die-cuttable
3. Common Applications
-
Removable thermal insulation jackets and mattress exterior seam sealing and edge bonding
-
High-temperature HVAC flexible duct connectors, exhaust pipe joints, and air-leak wrapping
-
Electrical motor leads, transformer coils, and automotive wire harness heat insulation wrapping
-
Precision die-cut heat-resistant sealing gaskets, anti-vibration strips, and surface wear protection
