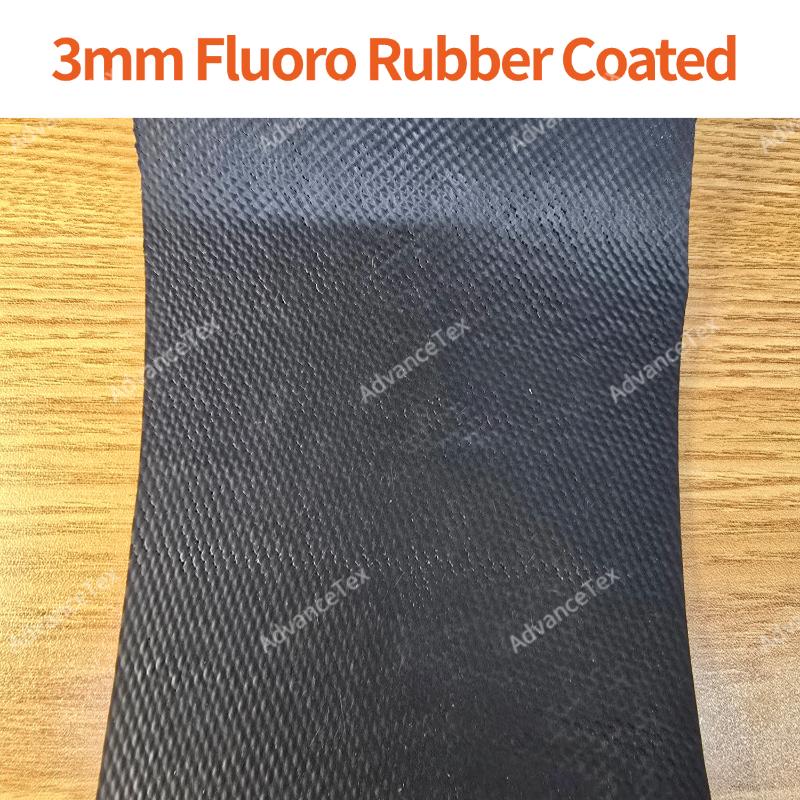

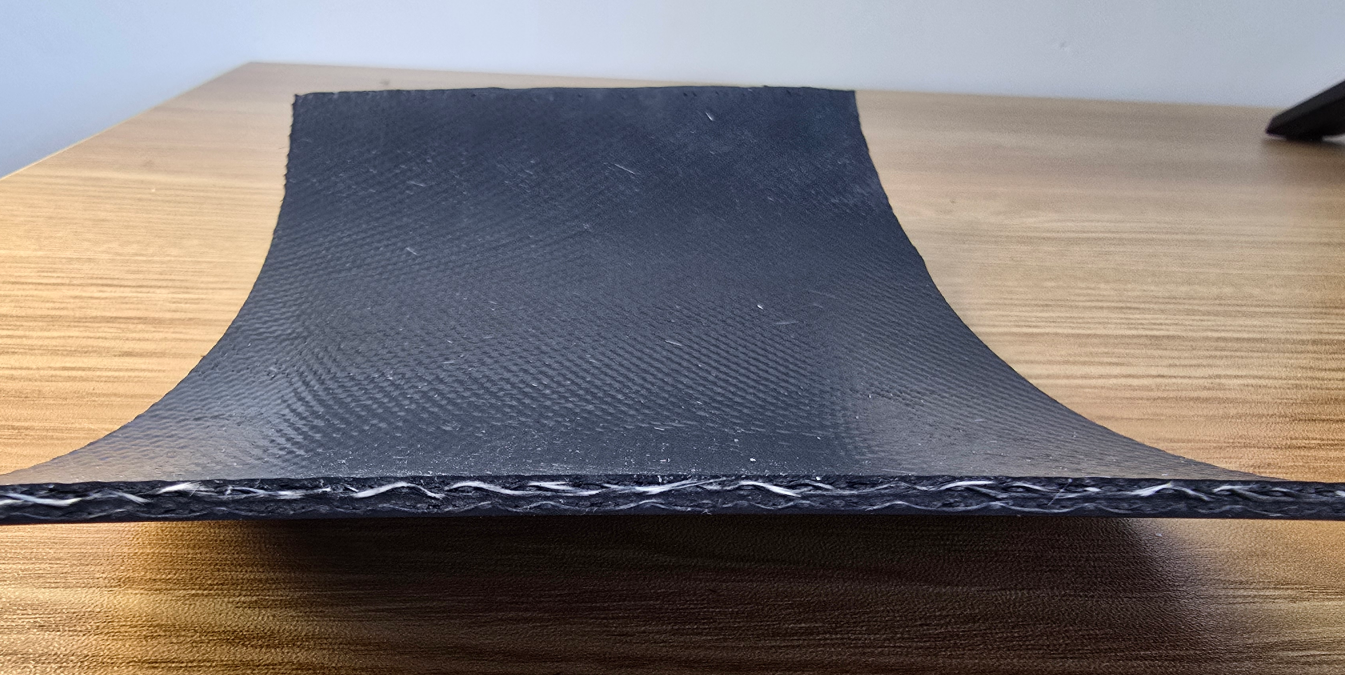

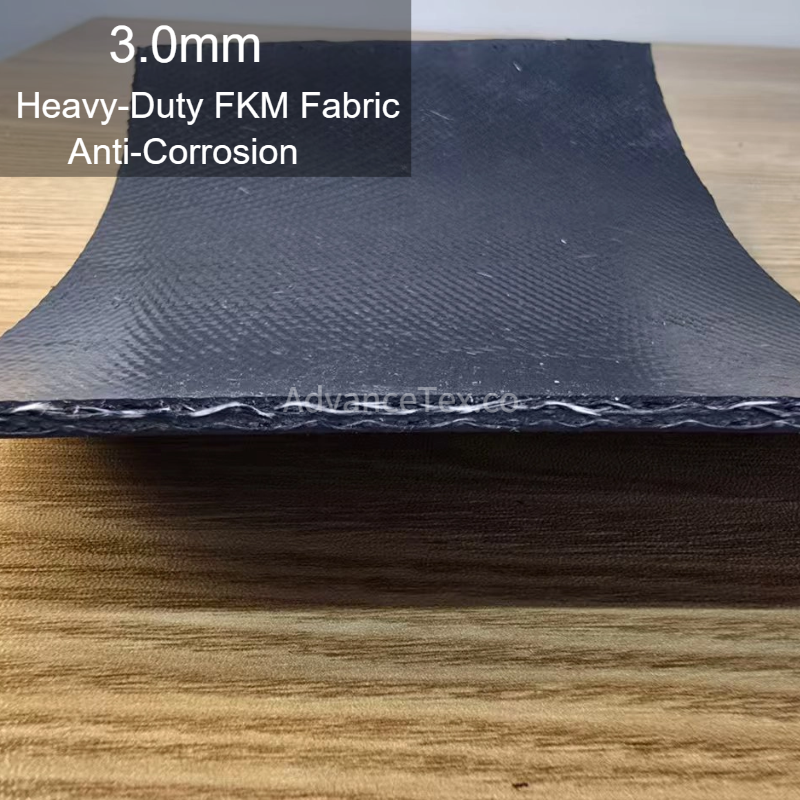

3.0mm Double Sided FKM Coated Fiberglass Fabric
1. Product Overview
3.0mm double-sided FKM coated fiberglass fabric is an engineered high-performance composite constructed from a 2-ply high-density woven E-glass substrate encapsulated symmetrically on both sides with vulcanized fluoroelastomer (FKM) rubber. The 2-ply reinforced internal structure provides exceptional tensile strength, multi-axial tear resistance, and blowout prevention under high dynamic mechanical loads and positive/negative duct pressures. The vulcanized FKM coating delivers outstanding resistance to harsh acidic condensates (including sulfuric, hydrochloric, and nitric acids), hydrocarbons, aromatic solvents, oils, and chemical fumes, providing reliable environmental isolation where standard silicone or elastomer coatings degrade.
2. Core Technical Parameters
-
Base Fabric: 2-ply high-density woven E-glass (fiberglass) filament cloth
-
Coating Structure: Double-sided fluoroelastomer (FKM / Viton-grade) rubber
-
Surface Color: Industrial Matte Black (both sides)
-
Nominal Thickness: 3.0mm
-
Operating Temperature: -20°C to +250°C (Intermittent/Peak up to +300°C)
-
Key Characteristics: Superior acid and chemical corrosion resistance, hydrocarbon and oil barrier, 2-ply high tensile and tear strength, gas-tight impermeable sealing, flame retardant, ozone and weathering resistance
3. Common Applications
-
Non-metallic fabric expansion joints and flexible duct connectors in power plant flue gas desulfurization (FGD) systems
-
Chemical processing exhaust ducting, incinerator ventilation sleeves, and acidic vapor containment barriers
-
Acid-resistant removable thermal insulation jackets, pump covers, and flange splash shields in petrochemical plants
-
Heavy-duty chemical resistant gaskets, tank seal covers, and corrosive splash barriers
