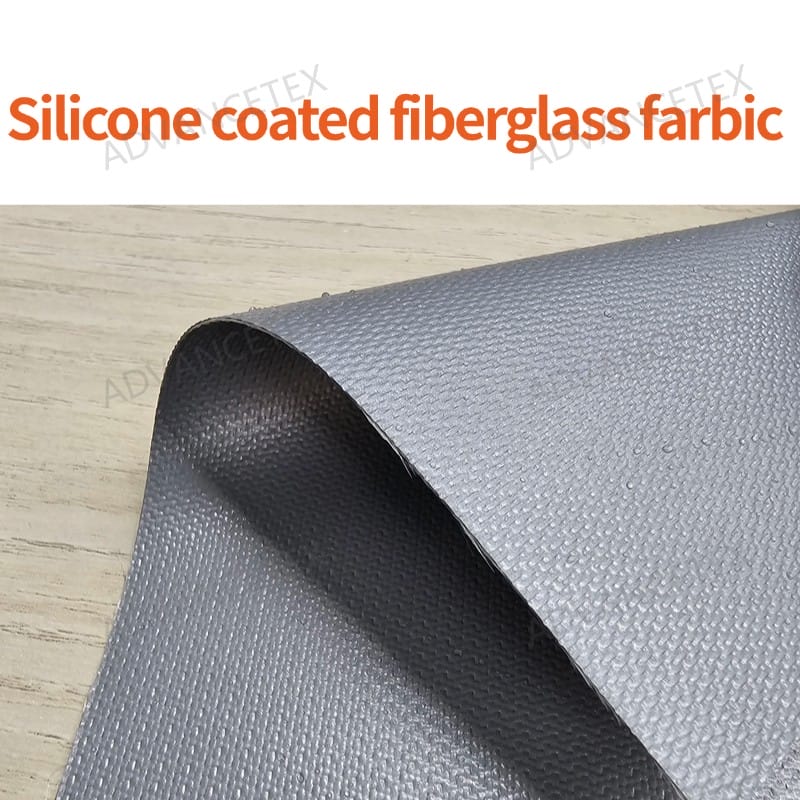

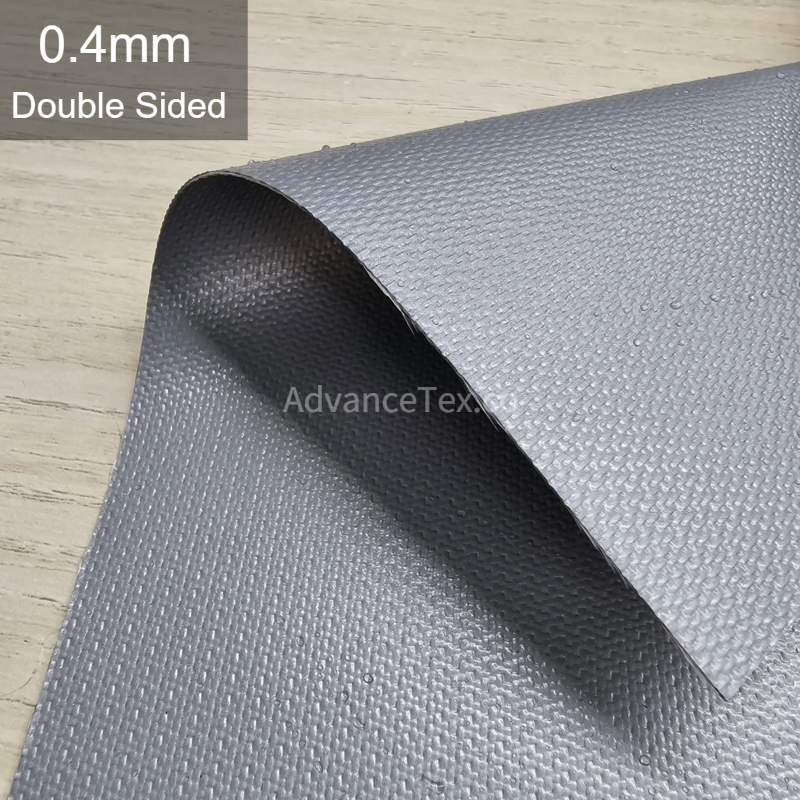

0.4mm Plain Weave Glossy Grey Double Sided Silicone Coated Fiberglass Fabric
1. Product Overview
0.4mm plain weave glossy grey double-sided silicone coated fiberglass fabric is an engineered industrial composite constructed from a tight, dimensionally stable plain-weave E-glass substrate coated symmetrically on both sides with high-grade liquid silicone rubber. The balanced plain-weave pattern provides high tensile strength and minimal distortion under continuous mechanical tension. The double-sided glossy grey finish delivers a smooth, low-friction surface that repels water, industrial oils, and chemical spills while enabling quick wipe-down cleaning. The bilateral encapsulation fully locks the fiberglass filaments to prevent fraying and particle release.
2. Core Technical Parameters
-
Substrate Weave: High-density symmetrical plain weave E-glass (fiberglass) cloth
-
Coating Structure: Double-sided liquid silicone rubber (Bilateral glossy smooth finish)
-
Surface Color: Glossy Industrial Grey (both sides)
-
Nominal Thickness: 0.4mm
-
Operating Temperature: -50°C to +260°C (Intermittent/Peak up to +280°C)
-
Key Characteristics: High dimensional stability, low stretch, dual-sided liquid/vapor barrier, flame retardant, weather and ozone resistant, non-fraying sealed edge, flexible stitchability
3. Common Applications
-
Outer and inner protective jacketing for removable thermal insulation covers, blankets, and valve jackets
-
High-temperature fabric expansion joints and flexible duct connectors requiring low-stretch structural backing
-
Industrial fire curtains, smoke barriers, and spark-deflecting welding curtains
-
Flange spray shields, high-temperature draft curtains, and die-cut heat-resistant sealing gaskets
