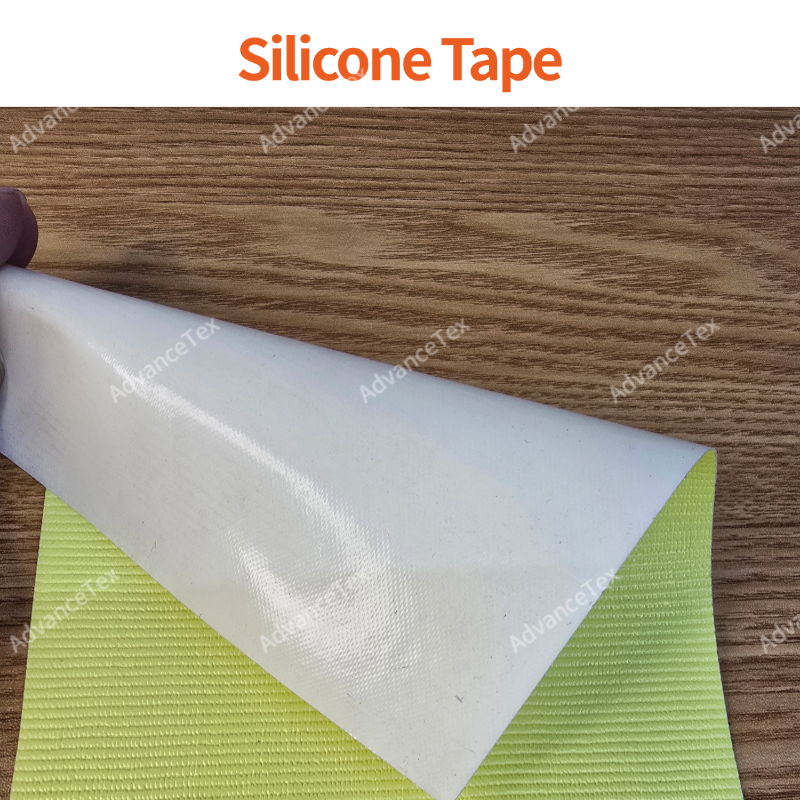

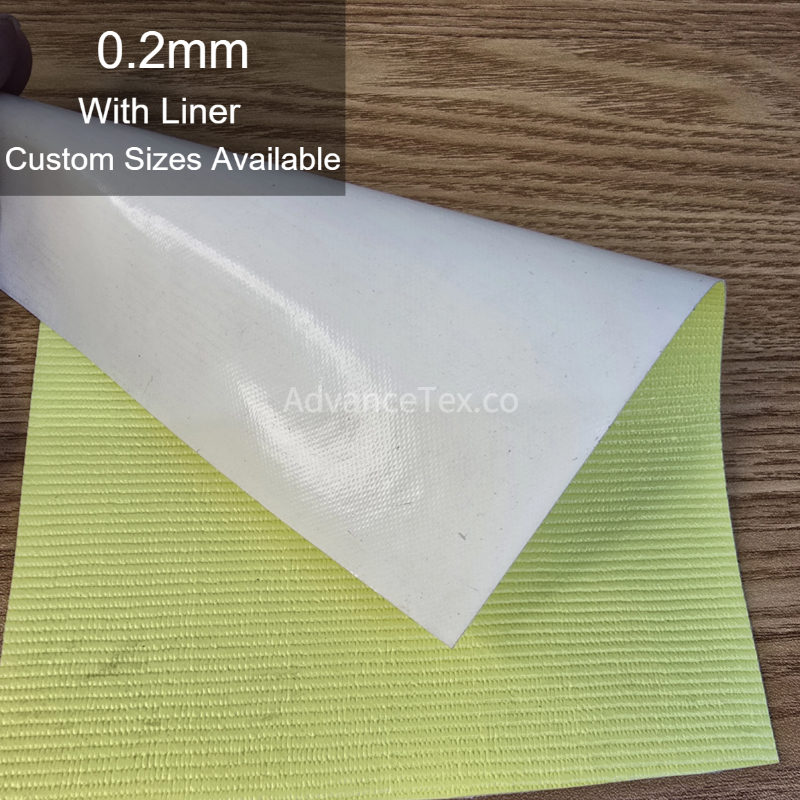

0.2mm White Silicone Coated Fiberglass Tape (Yellow Liner)
1. Product Overview
0.2mm white silicone coated fiberglass tape consists of a fine-weave E-glass fiberglass cloth substrate coated with high-purity white liquid silicone rubber, backed with a high-temperature pressure-sensitive silicone adhesive and protected by a flat yellow release liner. The yellow liner provides rigid dimensional stability, preventing curling and wrinkling during manual application or high-speed die-cutting. The white silicone surface offers an aesthetically clean finish, excellent resistance to environmental aging, moisture, and chemical splashes, while maintaining flexibility and flame-retardant performance under wide temperature fluctuations.
2. Core Technical Parameters
-
Base Fabric: Woven E-glass (fiberglass) filament cloth
-
Face Coating: Liquid silicone rubber compound (White)
-
Adhesive System: High-temperature pressure-sensitive silicone adhesive
-
Liner Type: Yellow release liner (flat, easy-peel)
-
Total Thickness: 0.2mm (nominal)
-
Operating Temperature: -50°C to +260°C (intermittent up to +280°C)
-
Key Characteristics: Residue-free removal, cleanroom-grade aesthetic, moisture/oil barrier, electrical insulation, flame retardant, precision die-cuttable
3. Common Applications
-
Removable thermal insulation jackets and mattress edge sealing in food, beverage, and pharmaceutical facilities
-
Seam sealing and air-leak prevention for cleanroom HVAC duct systems and high-temperature exhaust piping
-
Insulation wrapping and protection for electric heating elements, wire harnesses, and coil terminals
-
Custom die-cut heat-resistant sealing washers, gaskets, and cushioning strips for sensitive electronic equipment
