Silicone Coated Fiberglass Welding Blanket
1. Product Overview

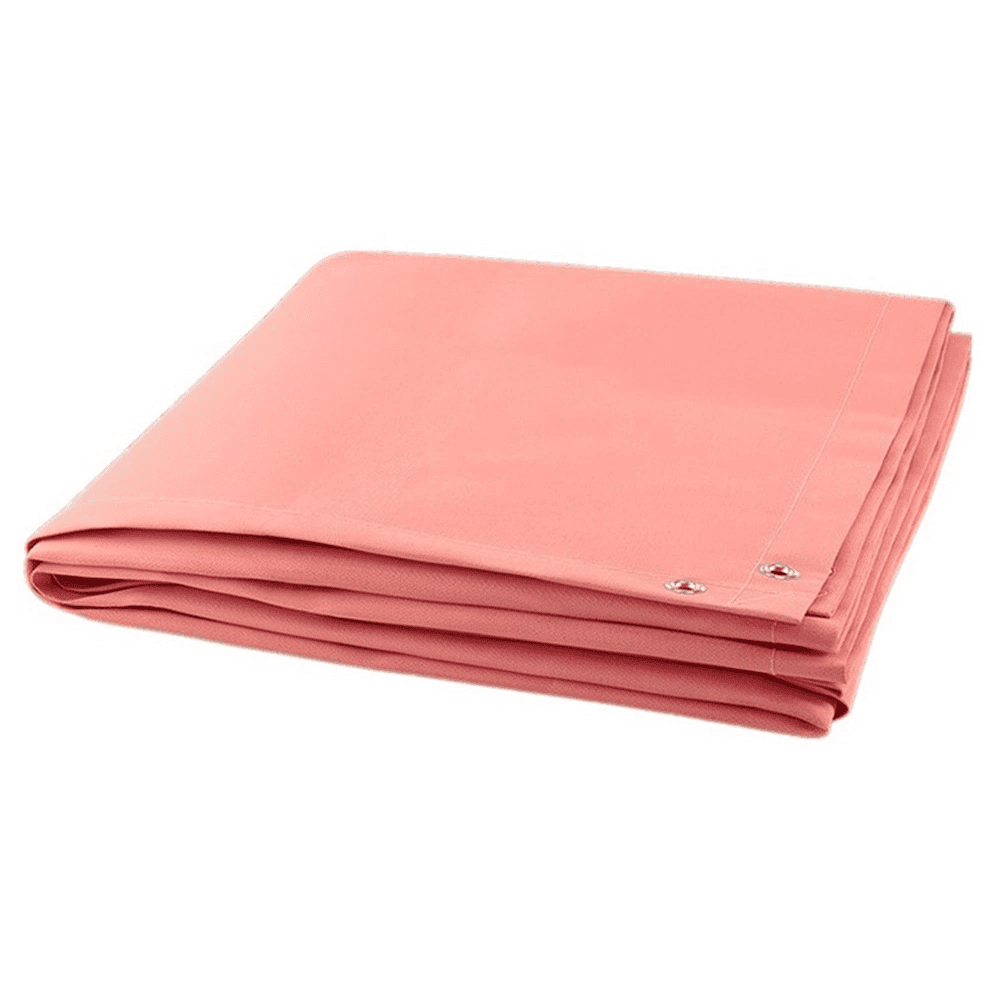

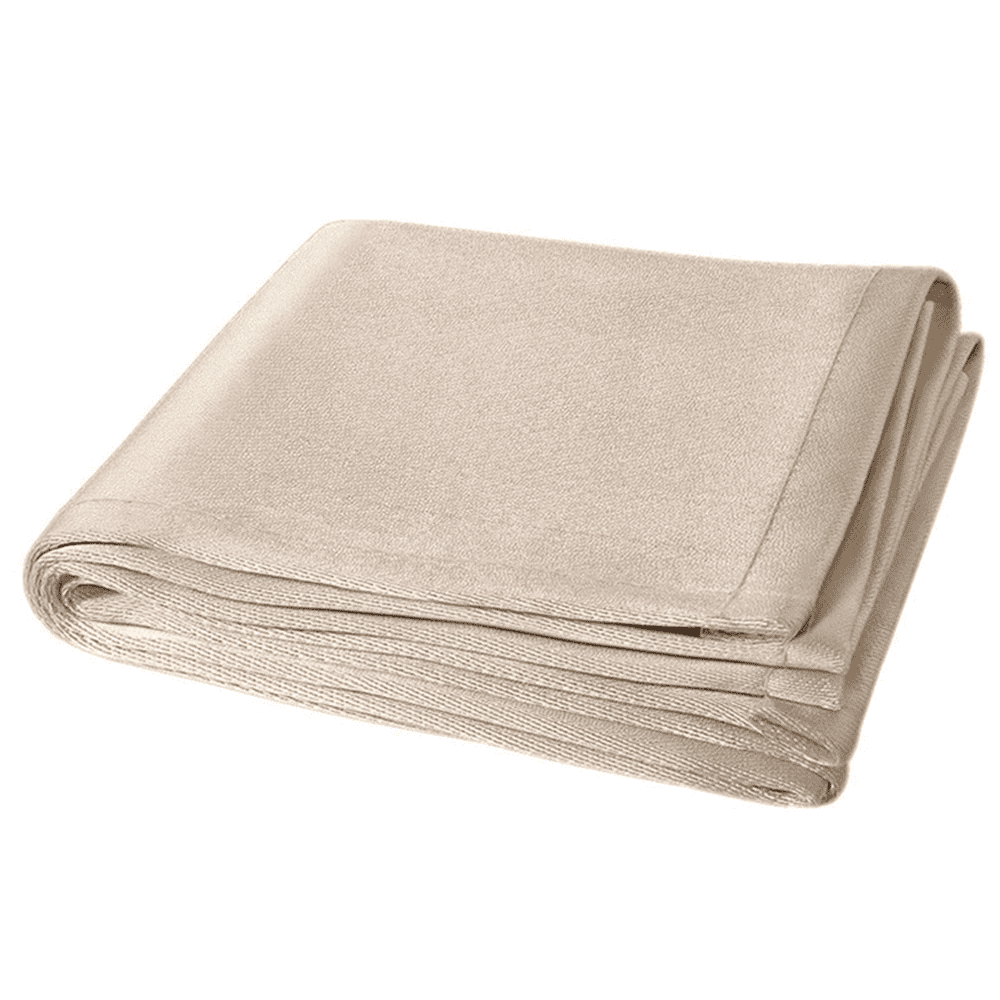

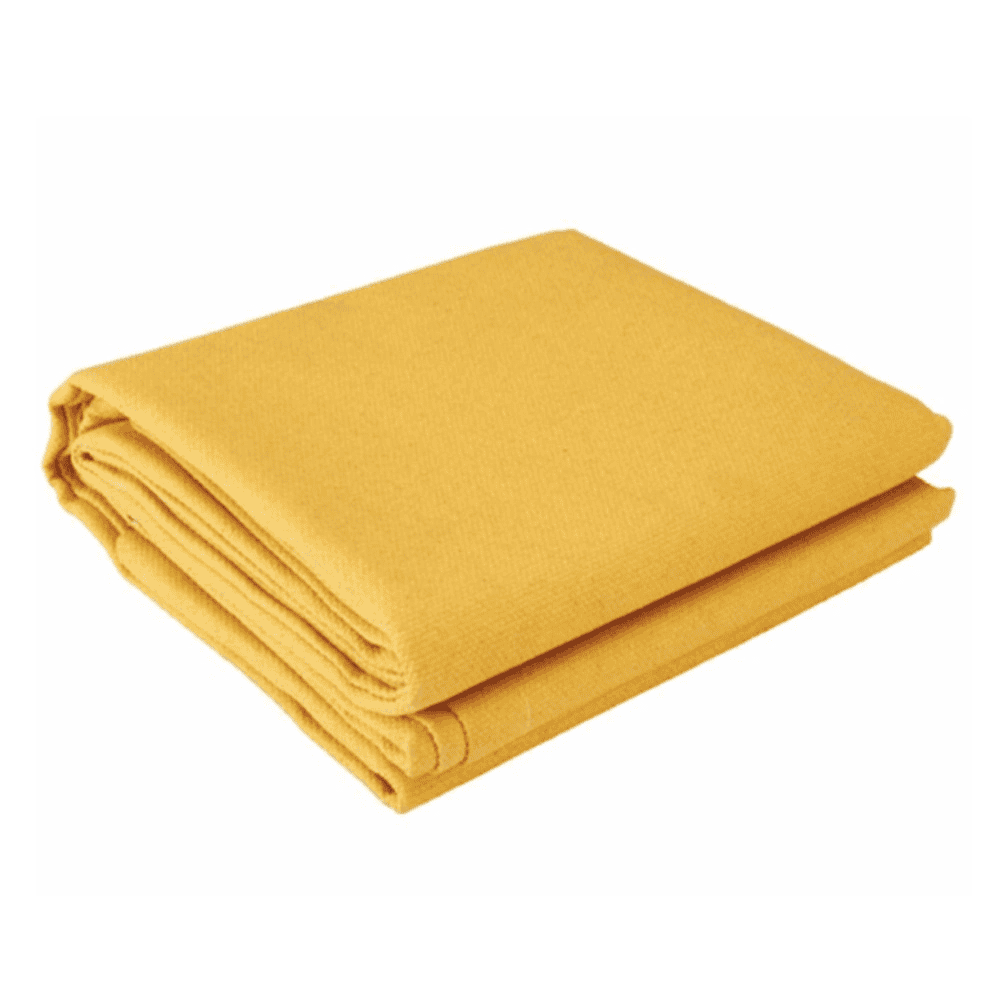

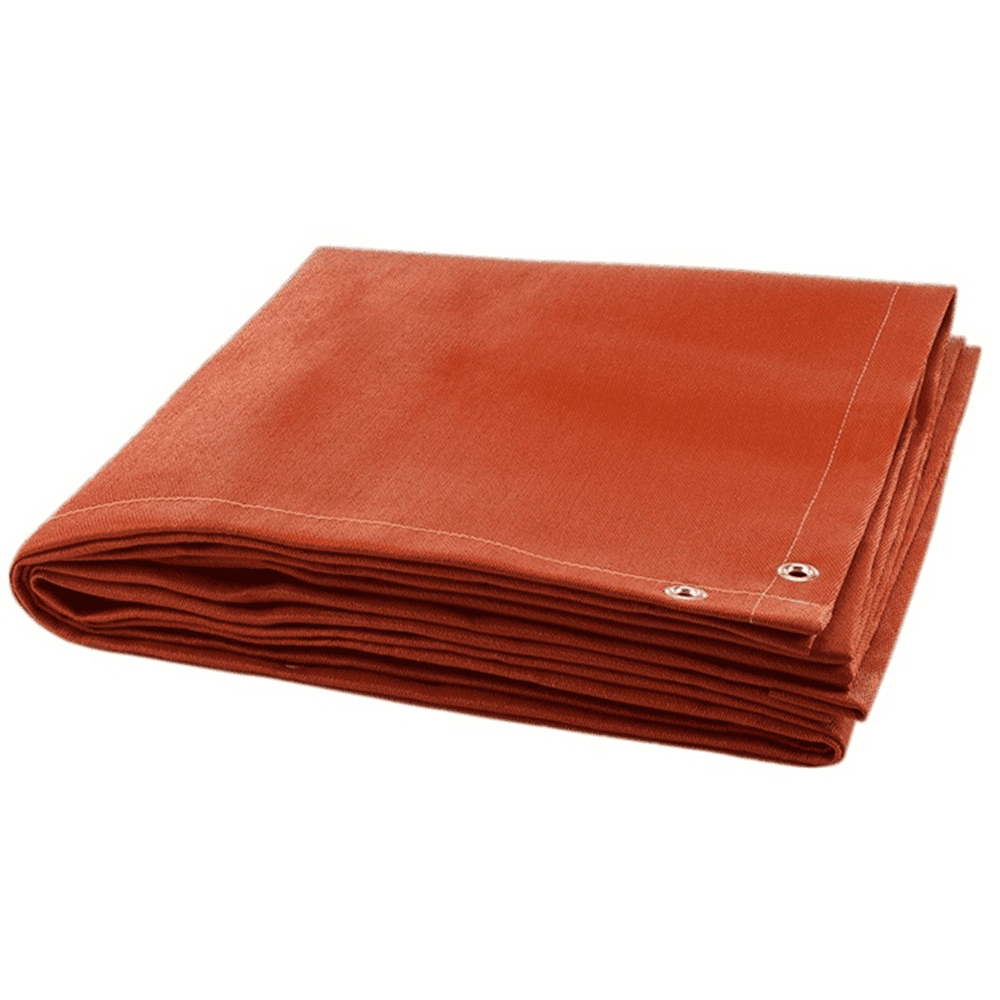

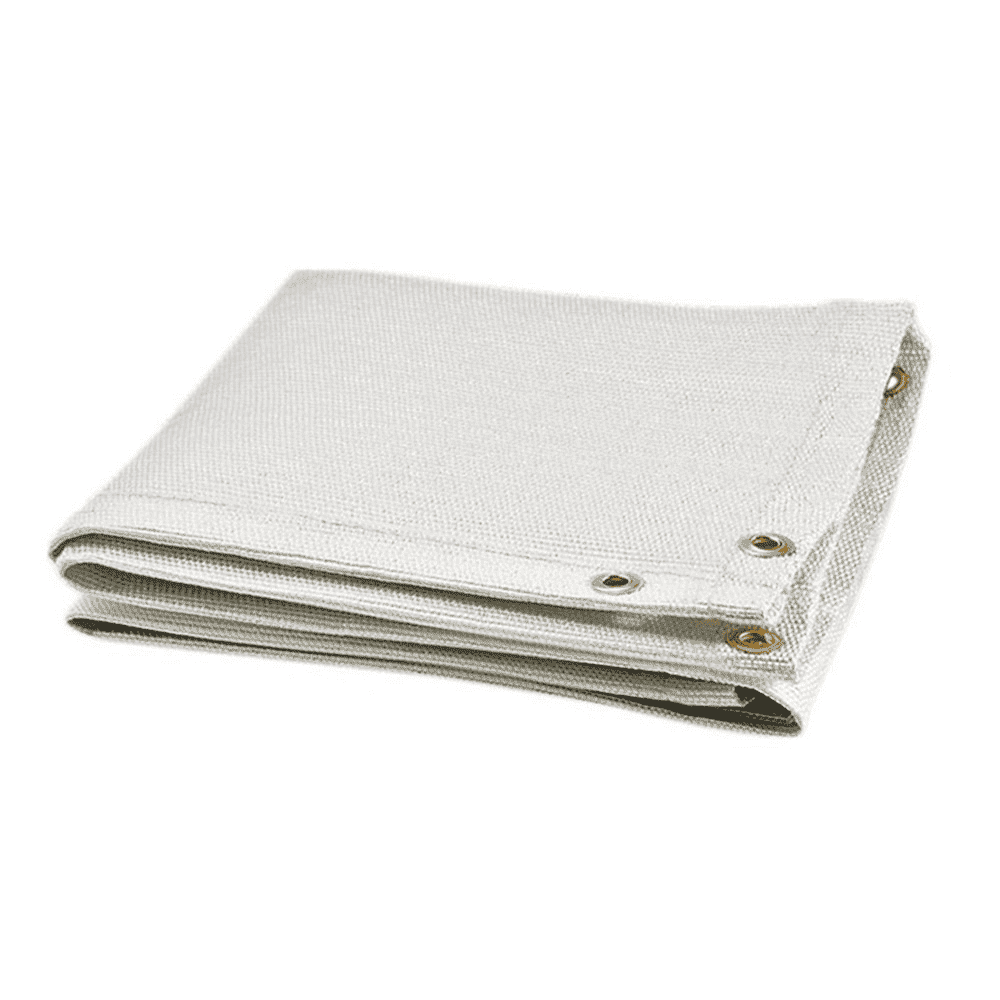

Silicone coated fiberglass welding blanket is an engineered safety barrier constructed from high-density woven E-glass cloth coated with industrial flame-retardant silicone rubber. The silicone encapsulation seals the fiberglass fibers to prevent mechanical skin irritation and fiber shedding while shedding oil, water, and grease. Engineered specifically for hot work zones, the dense composite structure stops high-velocity grinding sparks, welding spatter, and molten slag from penetrating or igniting surrounding equipment, sensitive machinery, and personnel areas. Blankets are finished with reinforced perimeter hems stitched with high-temperature fiberglass or aramid thread and fitted with heavy-duty brass grommets for secure rigging.
2. Core Technical Parameters
-
Base Substrate: High-density woven E-glass (fiberglass) fabric
-
Coating Layer: Flame-retardant silicone rubber (Single-sided or Double-sided)
-
Working Temperature: Silicone face -50°C to +260°C (Fiberglass substrate continuous 550°C, short-term molten spark deflection up to 1000°C)
-
Fabrication Details: Folded double-stitched perimeter hems, aramid/fiberglass sewing thread, heavy-duty brass grommets spaced at 30cm to 50cm intervals
-
Standard Thickness Options: 0.8mm to 1.5mm (Custom dimensions and roll sizes available)
-
Key Characteristics: Non-itch fiber containment, spark and slag deflection, water and oil barrier, vertical and horizontal drape flexibility, flame retardant, tear and abrasion resistant
3. Common Applications
-
Horizontal spark-catching drop cloths positioned under structural welding, cutting, and grinding zones
-
Vertical welding screen partitions and hanging fire containment curtains in metal fabrication shops and shipyards
-
Protective thermal covers draped over sensitive plant machinery, piping, valves, and electrical cables during hot work
-
Automotive body panel protection during welding, torch cutting, and frame straightening operations
