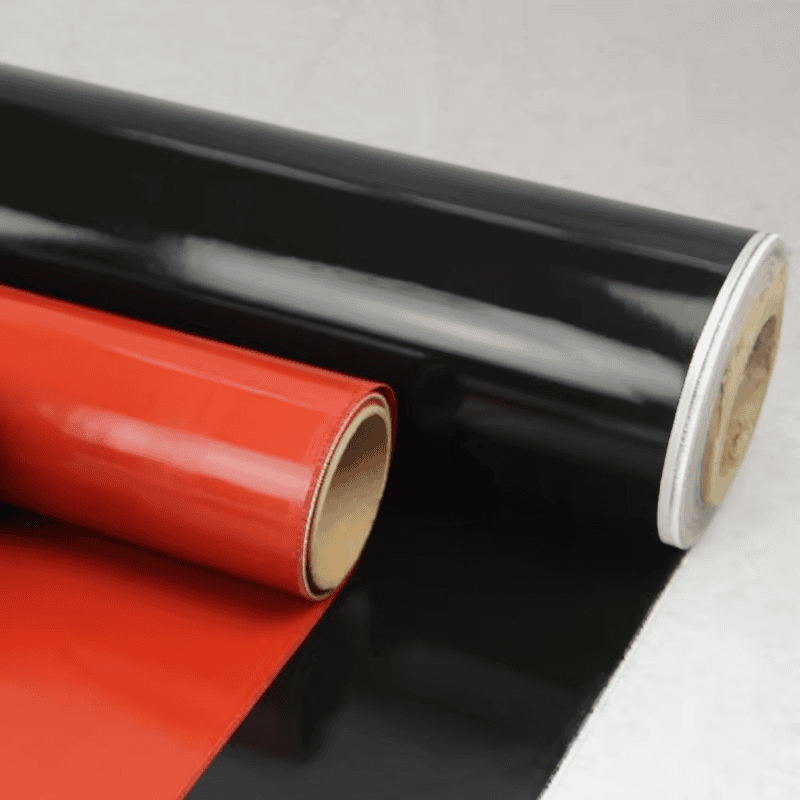

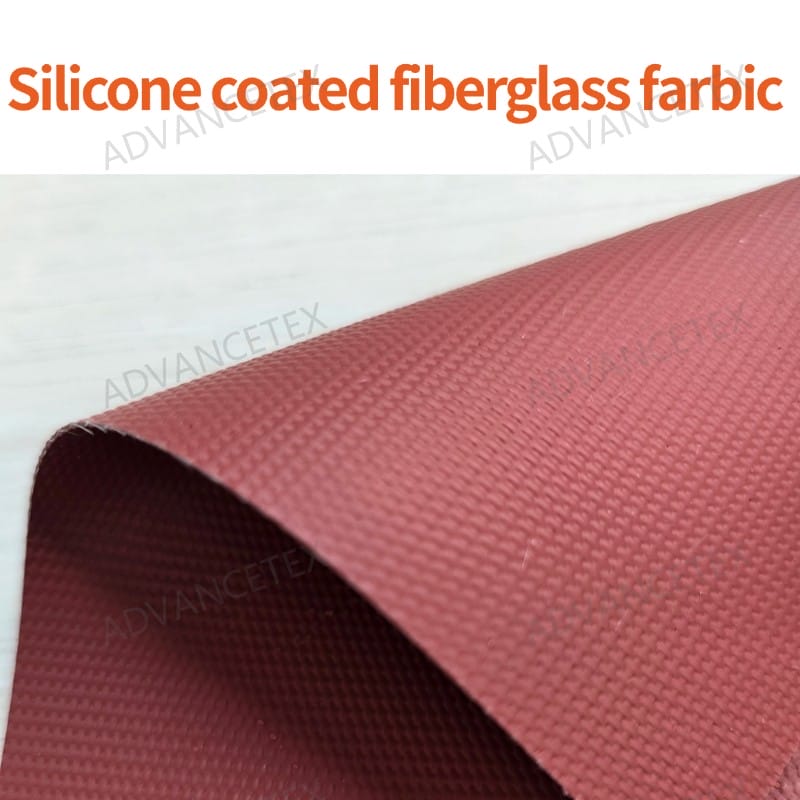

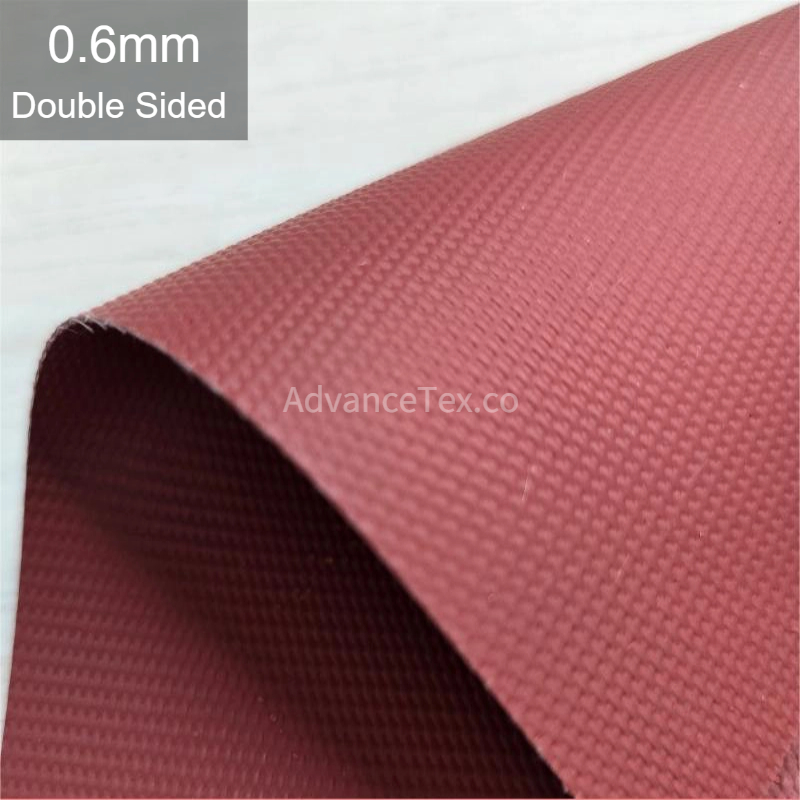

0.6mm Matte Red Double Sided Silicone Coated Fiberglass Fabric
1. Product Overview
0.6mm matte red double-sided silicone coated fiberglass fabric is an engineered industrial composite constructed from a high-density woven E-glass substrate encapsulated symmetrically on both sides with liquid silicone rubber. The satin matte red finish provides a non-reflective, glare-free surface suitable for safety-zoned installations and lighting-sensitive environments. The 0.6mm construction delivers exceptional tensile and tear resistance under continuous mechanical stress. Bilateral coating seals the fiberglass filaments completely to prevent fiber release and fraying, forming an impermeable barrier against water, steam, hydraulic fluids, and chemical splashes.
2. Core Technical Parameters
-
Base Fabric: Woven E-glass (fiberglass) filament cloth
-
Coating Structure: Double-sided liquid silicone rubber (Bilateral matte non-reflective finish)
-
Surface Color: Industrial Matte Red (both sides)
-
Nominal Thickness: 0.6mm
-
Operating Temperature: -50°C to +260°C (Intermittent/Peak up to +280°C)
-
Key Characteristics: Non-reflective matte texture, high tensile and tear strength, dual-sided moisture and oil barrier, flame retardant, weather and ozone resistant, non-fraying sealed edge, flexible sewability
3. Common Applications
-
Outer and inner jacketing for removable thermal insulation covers, blankets, and valve jackets on high-temperature piping
-
Industrial fire curtains, smoke barriers, and spark-deflecting welding drop blankets
-
Flexible duct connectors and fabric expansion joints in industrial exhaust and ventilation systems
-
Flange spray shields, high-temperature safety barriers, and die-cut heat-resistant sealing gaskets
