0.2mm Double Sided Silicone Coated Fiberglass Fabric (Grey/Black)
1. Product Overview

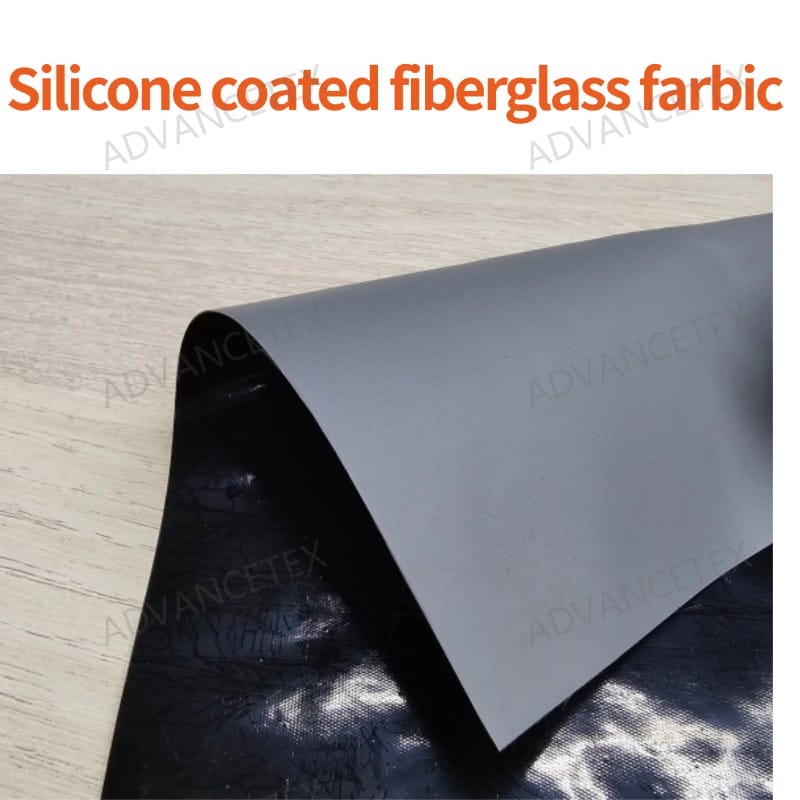

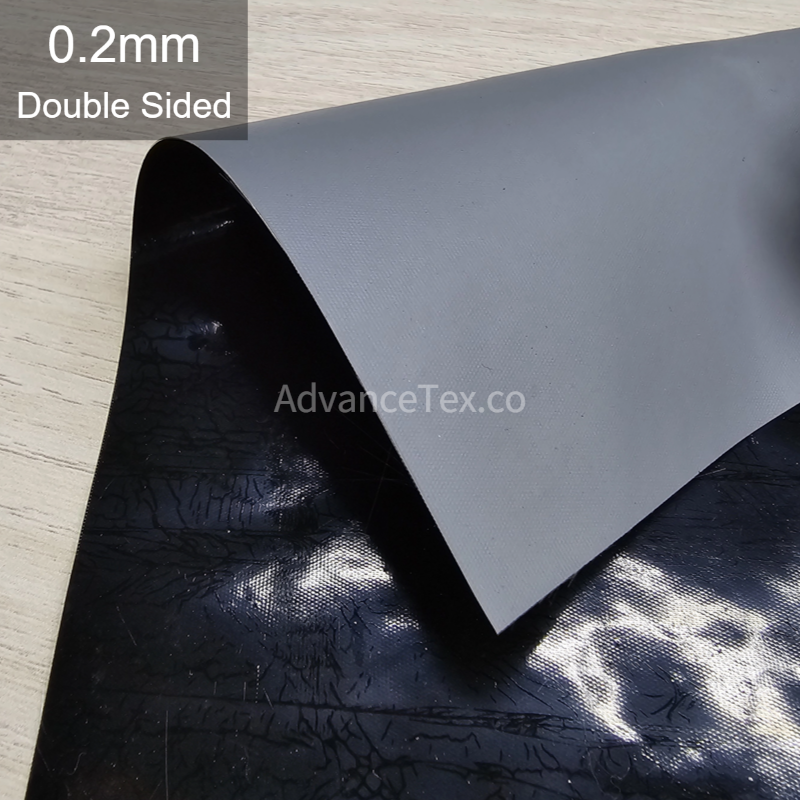

0.2mm double-sided silicone coated fiberglass fabric is a specialized technical composite combining high-strength E-glass woven fabric with liquid silicone rubber coatings in distinct colors on each side (grey face / black reverse). This dual-color configuration provides clear visual differentiation between hot-face and cold-face orientations during fabrication. The thin 0.2mm profile delivers exceptional flexibility, tight seam stitchability, complete impermeability to moisture and industrial oils, and continuous performance under dynamic thermal environments.
2. Core Technical Parameters
-
Base Fabric: Woven E-glass (fiberglass) filament cloth
-
Coating Structure: Double-sided liquid silicone rubber
-
Surface Colors: Grey (Face side) / Black (Reverse side)
-
Nominal Thickness: 0.2mm
-
Temperature Resistance: Continuous -50°C to +260°C (Intermittent/Peak up to +280°C)
-
Key Characteristics: Dual-color identification, lightweight & flexible, vapor and liquid barrier, oil/chemical resistant, flame retardant, non-fraying edges
3. Common Applications
-
Removable thermal insulation jackets and mattress covers requiring distinct interior/exterior visual identification
-
Flexible HVAC duct connectors, expansion joints, and vibration isolators in confined spaces
-
Smoke and fire containment curtains, high-temperature draft barriers, and welding protection screens
-
Die-cut heat-resistant sealing gaskets, flange covers, and equipment dust/splash shields
