0.4mm Glossy Blue Single Sided Silicone Coated Fiberglass Fabric
1. Product Overview

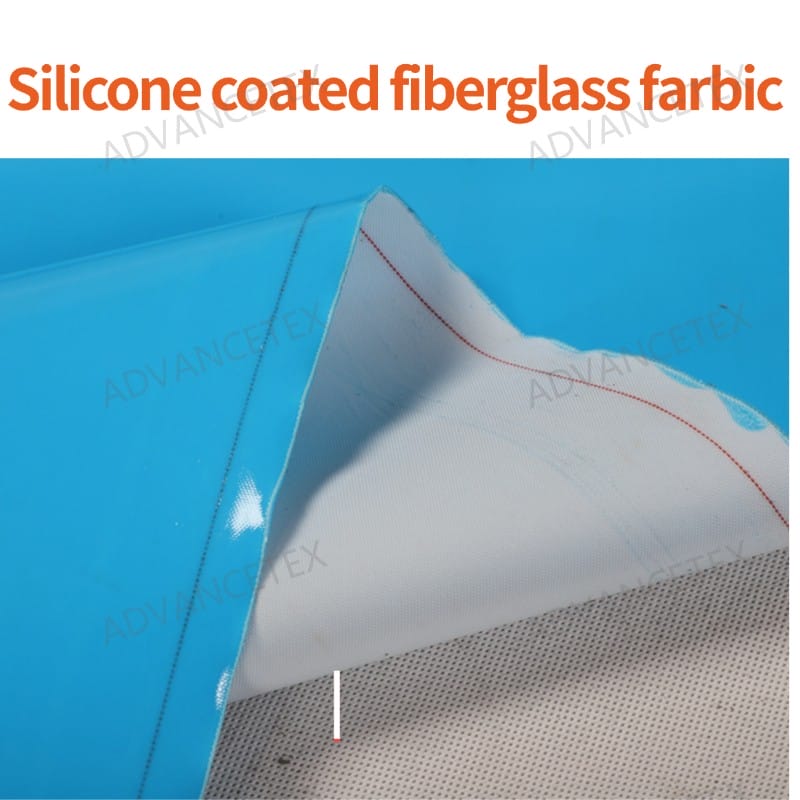

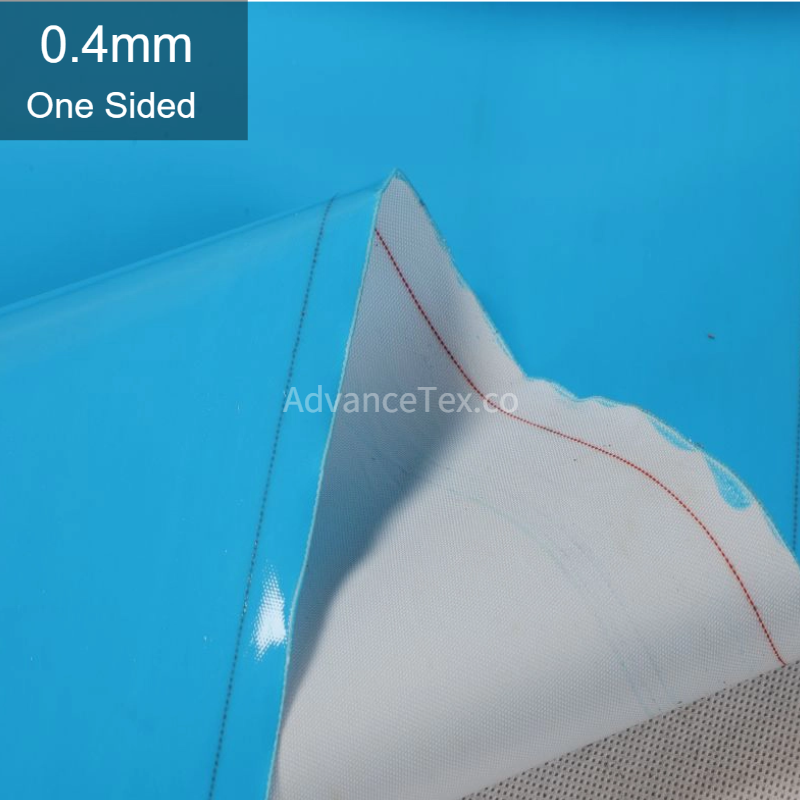

0.4mm single-sided glossy blue silicone coated fiberglass fabric is an engineered composite material manufactured by applying a high-grade liquid silicone rubber compound to one side of a high-tensile E-glass woven substrate. The vivid glossy blue face forms an impermeable barrier against water, oils, and chemical splashes while providing clear visual color-coding for pipeline identification (such as chilled water loops, cold process lines, or specialized plant zones). The raw fiberglass reverse side provides optimal mechanical bonding when adhering to thermal insulation batting, rock wool, or pressure-sensitive adhesive tapes.
2. Core Technical Parameters
-
Base Fabric: Woven E-glass (fiberglass) filament cloth
-
Coating Structure: Single-sided liquid silicone rubber (Glossy smooth finish)
-
Surface Color: Glossy Industrial Blue (coated face) / Natural White (uncoated reverse)
-
Nominal Thickness: 0.4mm
-
Operating Temperature: Coated face -50°C to +260°C (Fiberglass substrate up to +550°C)
-
Key Characteristics: Color-coded line identification, oil and moisture barrier, flame retardant, weather and ozone resistant, excellent reverse bonding compatibility, flexible sewability
3. Common Applications
-
Outer protective layer for removable thermal insulation covers and jackets on chilled water and process piping
-
Flexible duct connectors, expansion sleeves, and vibration joints in industrial HVAC systems
-
Protective sleeves, equipment spray shields, and dust covers requiring safety color zoning
-
Facing material laminated to needle-punched glass mats, aerogel blankets, or rock wool panels
