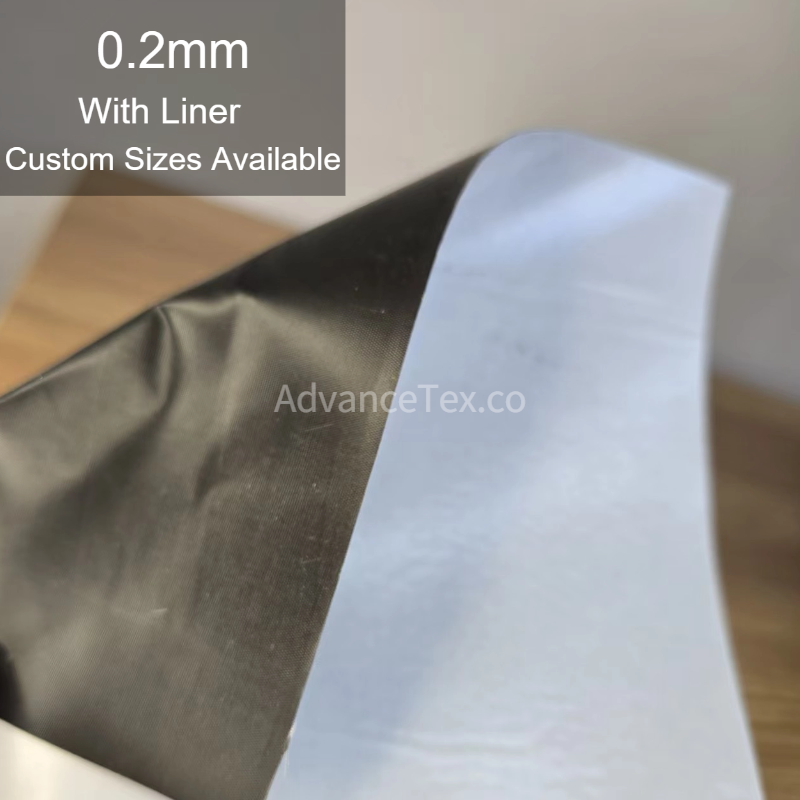

0.2mm Black Silicone Coated Fiberglass Tape (White Liner)
1. Product Overview
0.2mm black silicone coated fiberglass tape is engineered from high-tensile E-glass woven fabric coated with black silicone rubber on one side and a high-performance pressure-sensitive adhesive on the reverse, laminated with a smooth white release liner. The white liner ensures structural stability during wide-span application and die-cutting. The tape provides an impermeable barrier against moisture, oils, and weathering, delivering reliable insulation and flame retardancy across extreme temperatures without hardening or brittle failure.
2. Core Technical Parameters
-
Base Fabric: Woven E-glass (fiberglass) cloth
-
Substrate Coating: Weather-resistant liquid silicone rubber (Black)
-
Adhesive System: High-temperature pressure-sensitive silicone adhesive
-
Liner Type: White protective release liner (easy-peel)
-
Total Thickness: 0.2mm (nominal)
-
Operating Temperature: -50°C to +260°C
-
Key Characteristics: High dielectric strength, residue-free peeling, waterproof and oil-resistant, flame retardant, easy for precision die-cutting
3. Common Applications
-
Removable thermal insulation jackets seam sealing and edge bonding
-
High-temperature HVAC flexible duct joint wrapping and air-leak prevention
-
Electrical motor leads, transformer coils, and harness high-temperature insulation
-
Die-cut heat-resistant sealing gaskets, cushion strips, and abrasion-resistant surface protection
