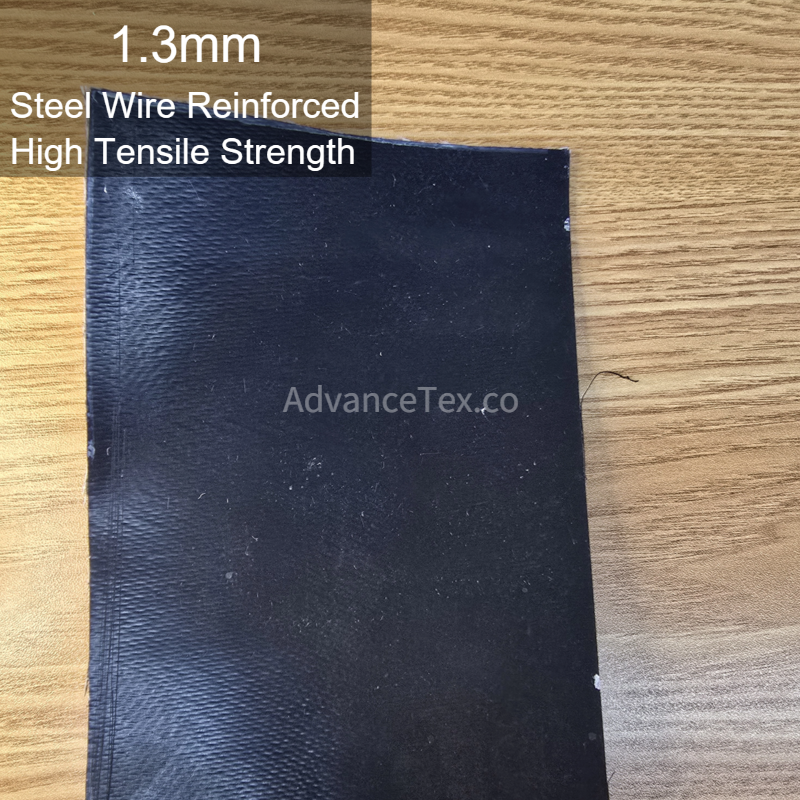

1.3mm Steel Wire Reinforced Black Single Sided Silicone Coated Fiberglass Fabric
1. Product Overview
1.3mm steel wire reinforced black single-sided silicone coated fiberglass fabric is an engineered composite constructed from a high-density E-glass textile interwoven with continuous stainless steel wire filaments, coated on one side with liquid silicone rubber. The internal steel wire grid provides high tensile strength, structural stability under dynamic mechanical pressure, and blowout resistance. The coated black face forms an impermeable barrier against water, oils, grease, and chemical fumes, while the uncoated textured reverse facilitates mechanical grip and adhesive bonding to insulation bats, ceramic fiber blankets, or metal framing.
2. Core Technical Parameters
-
Base Fabric: Woven E-glass cloth interwoven with stainless steel wire (304/316)
-
Coating Structure: Single-sided liquid silicone rubber (Smooth finish)
-
Surface Color: Industrial Black (coated face) / Natural Wire-Reinforced E-Glass (uncoated reverse)
-
Nominal Thickness: 1.3mm
-
Operating Temperature: Coated face -50°C to +260°C (Fiberglass & steel wire substrate up to +550°C)
-
Key Characteristics: High tensile and tear resistance, pressure blowout resistance, single-sided oil and moisture barrier, flame retardant, weather and ozone resistant, flexible sewability
3. Common Applications
-
Heavy fabric expansion joints and flexible duct sleeves operating under high pressure, vibration, and elevated temperatures
-
Flue gas exhaust connectors and industrial ducting compensation systems in power stations and boiler plants
-
Industrial fire curtains, deployable smoke containment barriers, and spark-deflecting welding drop blankets
-
High-temperature exhaust pipe wraps, turbine insulation covers, and mechanical flange spray shields
