0.4mm Plain Weave Glossy Grey Single Sided Silicone Coated Fiberglass Fabric
1. Product Overview

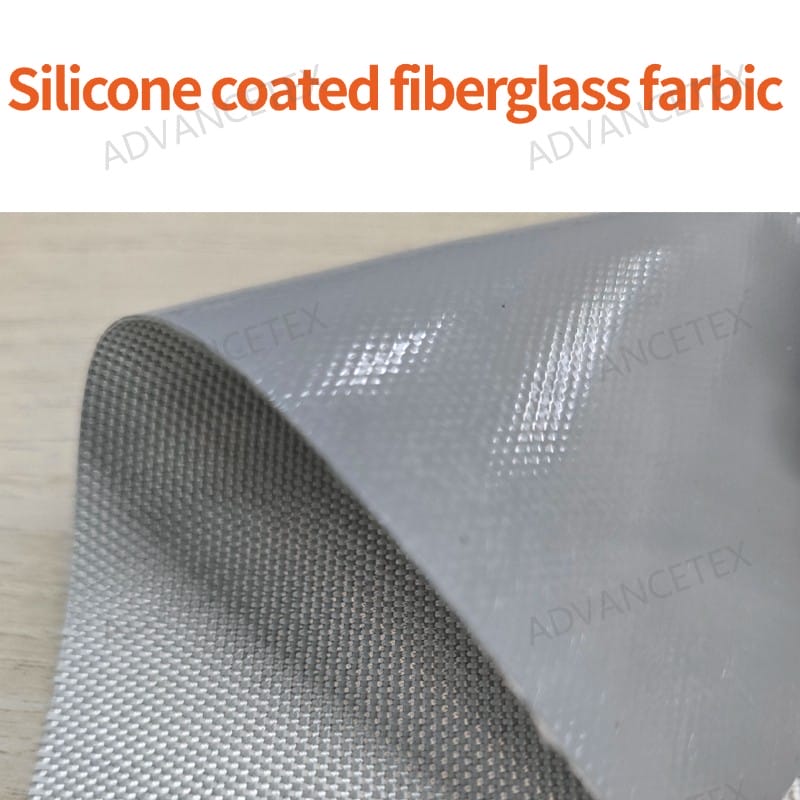

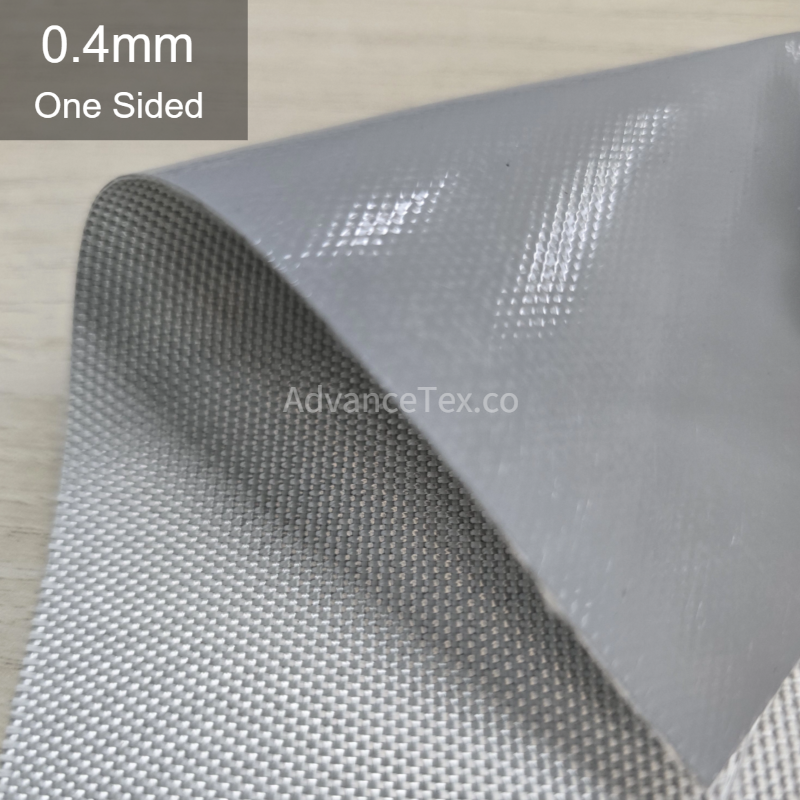

0.4mm plain weave glossy grey single-sided silicone coated fiberglass fabric is an engineered industrial composite constructed from a tight, dimensionally stable plain-weave E-glass substrate coated on one side with a specially formulated liquid silicone rubber compound. The symmetrical plain-weave structure provides high structural integrity and minimal elongation under tensile load. The glossy grey silicone face forms an impermeable barrier against moisture, industrial oils, and chemical spills, while the raw fiberglass reverse allows superior mechanical bonding with insulation blankets or adhesive backings.
2. Core Technical Parameters
-
Substrate Weave: Symmetrical plain weave E-glass (fiberglass) cloth
-
Coating Structure: Single-sided liquid silicone rubber (Glossy smooth finish)
-
Surface Color: Glossy Grey (coated face) / Natural White (uncoated reverse)
-
Nominal Thickness: 0.4mm
-
Operating Temperature: Coated face -50°C to +260°C (Fiberglass substrate up to +550°C)
-
Key Characteristics: Low stretch and distortion, high dimensional stability, waterproof and oil repellent face, excellent reverse bonding compatibility, flame retardant
3. Common Applications
-
Outer facing and weather barrier for removable thermal insulation covers, jackets, and valve blankets
-
Dimensionally stable industrial fire curtains, draft barriers, and welding protection screens
-
Protective jacket lamination with rock wool, aerogel blankets, or needle-punched fiberglass mats
-
Flexible HVAC duct connectors and expansion joints requiring low-stretch fabric framing
