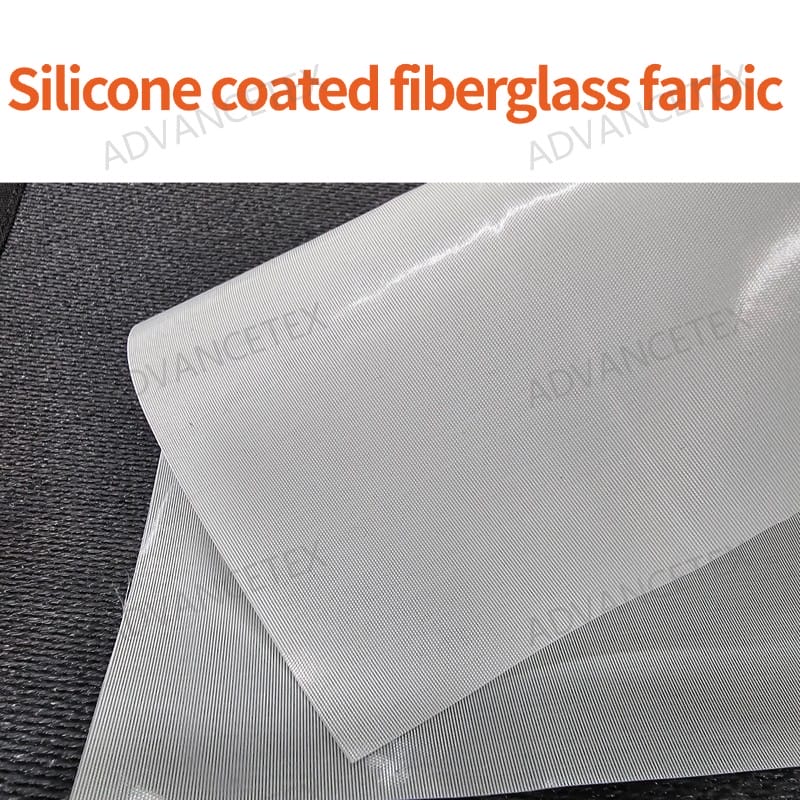

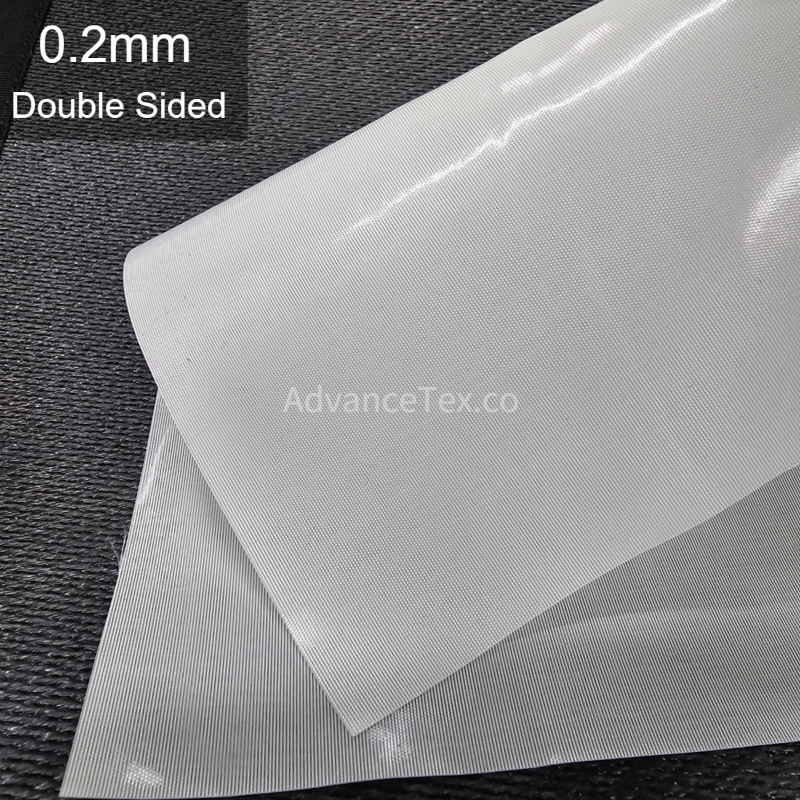

0.2mm Translucent Silicone Coated Fiberglass Fabric (Double Sided)
1. Product Overview
0.2mm translucent double-sided silicone coated fiberglass fabric is an engineered specialty composite featuring unpigmented liquid silicone rubber coated on both sides of a fine-weave E-glass filament substrate. This clear formulation allows high light transmission, enabling maintenance personnel to visually inspect underlying pipes, valves, instruments, and moving machinery without removing the insulation barrier. The fabric provides complete resistance to moisture, oils, and chemical vapors while retaining flexibility across wide temperature extremes.
2. Core Technical Parameters
-
Base Fabric: High-tensile woven E-glass (fiberglass) cloth
-
Coating Material: Unpigmented clear silicone rubber (Double-sided)
-
Nominal Thickness: 0.2mm (0.20mm)
-
Operating Temperature: -50°C to +260°C (Intermittent/Peak up to +280°C)
-
Key Characteristics: High light transmission, visual inspection capability, airtight & waterproof, flame retardant, ozone and UV resistant, ultra-flexible
3. Common Applications
-
Visual inspection windows and covers for removable thermal insulation jackets on valves and instruments
-
Translucent flexible duct connectors and expansion sleeves in pharmaceutical and food cleanrooms
-
Observation port sealing gaskets, sight glass heat shields, and autoclave draft curtains
-
Industrial cleanroom partitions, laser/welding barrier curtains, and machine protective sleeves requiring interior visibility
