0.4mm Satin Weave Glossy Grey Single Sided Silicone Coated Fiberglass Fabric
1. Product Overview

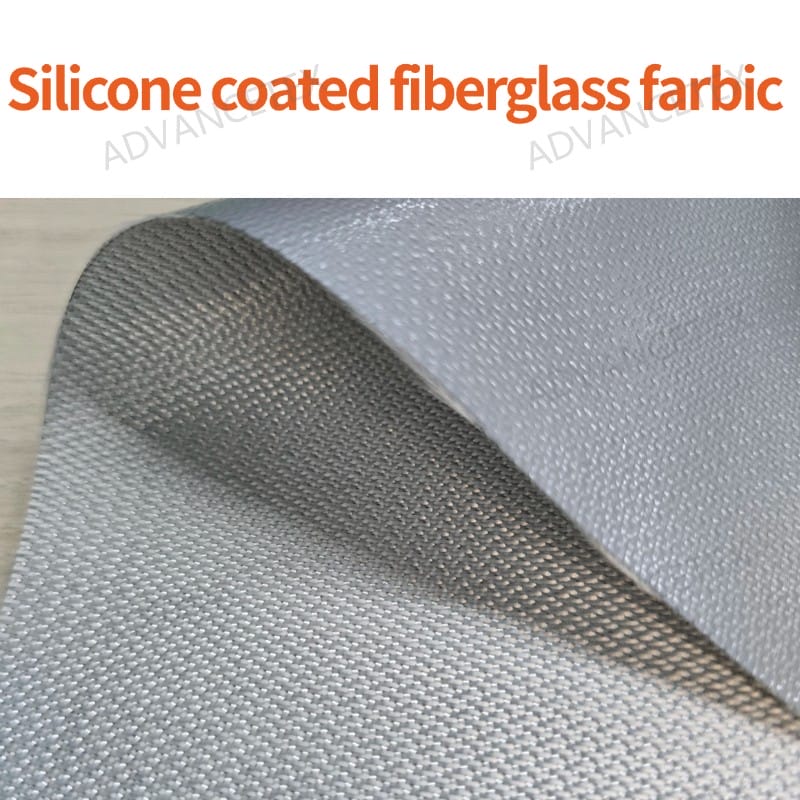

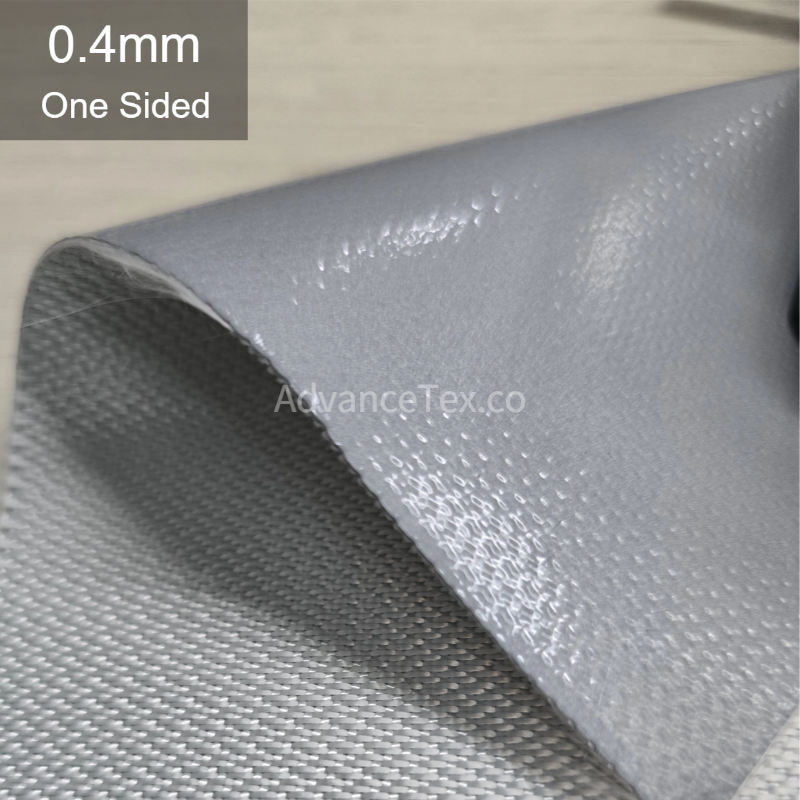

0.4mm satin weave glossy grey single-sided silicone coated fiberglass fabric is an engineered technical composite constructed from a high-density satin weave E-glass substrate coated on one side with a specially formulated liquid silicone rubber compound. The satin weave architecture allows the fabric to flex and drape naturally over complex contours, sharp bends, and irregular geometries without buckling or creasing. The glossy grey silicone face delivers an impermeable barrier against water, oils, and chemical splashes with a clean, wipeable finish, while the exposed fiberglass reverse provides strong mechanical anchorage for insulation batting and thermal adhesives.
2. Core Technical Parameters
-
Substrate Weave: High-density satin weave E-glass (fiberglass) cloth
-
Coating Structure: Single-sided liquid silicone rubber (Glossy reflective finish)
-
Surface Color: Glossy Grey (coated face) / Natural White (uncoated reverse)
-
Nominal Thickness: 0.4mm
-
Operating Temperature: Coated face -50°C to +260°C (Fiberglass substrate up to +550°C)
-
Key Characteristics: Superior drapability and pliability, contour conforming, liquid and oil barrier, flame retardant, non-fraying sealed edge, excellent reverse bonding
3. Common Applications
-
Removable thermal insulation jackets and mattress covers for complex valves, pumps, flanges, and turbine housings
-
Flexible thermal shields and exhaust manifold insulation covers in marine and automotive systems
-
Single-sided protective facings laminated to ceramic fiber, silica aerogel, or needle-punched glass mats
-
High-temperature expansion joints and flexible duct sleeves requiring dynamic movement and tight contouring
