0.4mm Satin Weave Matte Grey Double Sided Silicone Coated Fiberglass Fabric
1. Product Overview

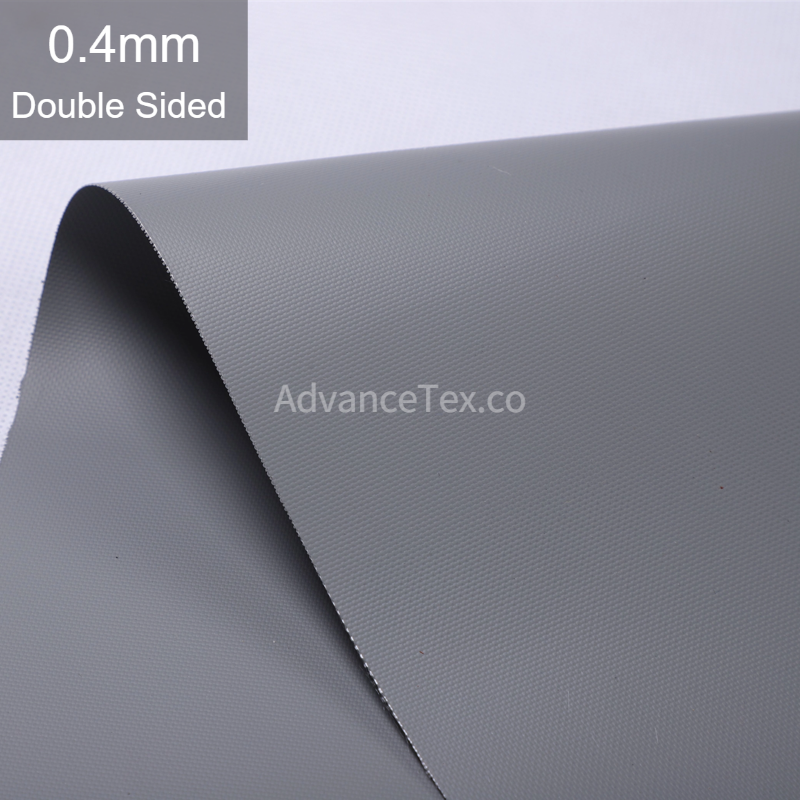

0.4mm satin weave matte grey double-sided silicone coated fiberglass fabric is an engineered industrial composite constructed from a high-density satin weave E-glass substrate coated symmetrically on both sides with liquid silicone rubber. The satin weave architecture provides exceptional flexibility and multi-directional conformability, allowing the fabric to drape smoothly across complex pipe contours, valve bodies, and curved turbine casings without folding or puckering. The double-sided matte grey finish eliminates surface glare and reflection, creating a durable, non-porous barrier against moisture, steam, industrial oils, and chemical splashes with excellent flame retardancy.
2. Core Technical Parameters
-
Substrate Weave: High-density satin weave E-glass (fiberglass) cloth
-
Coating Structure: Double-sided liquid silicone rubber (Bilateral matte non-reflective finish)
-
Surface Color: Industrial Matte Grey (both sides)
-
Nominal Thickness: 0.4mm
-
Operating Temperature: -50°C to +260°C (Intermittent/Peak up to +280°C)
-
Key Characteristics: High drapability and pliability, non-reflective matte texture, dual-sided vapor/liquid barrier, flame retardant, weather and ozone resistant, non-fraying sealed edge, flexible sewability
3. Common Applications
-
Removable thermal insulation jackets, blankets, and covers for complex valves, pumps, flanges, and turbine housings
-
Acoustic barrier wraps and compressor sound-attenuation jackets requiring anti-glare, low-reflection facings
-
High-temperature fabric expansion joints and flexible duct sleeves operating across dynamic, non-linear movements
-
Industrial fire curtains, equipment splash guards, and die-cut heat-resistant sealing gaskets
