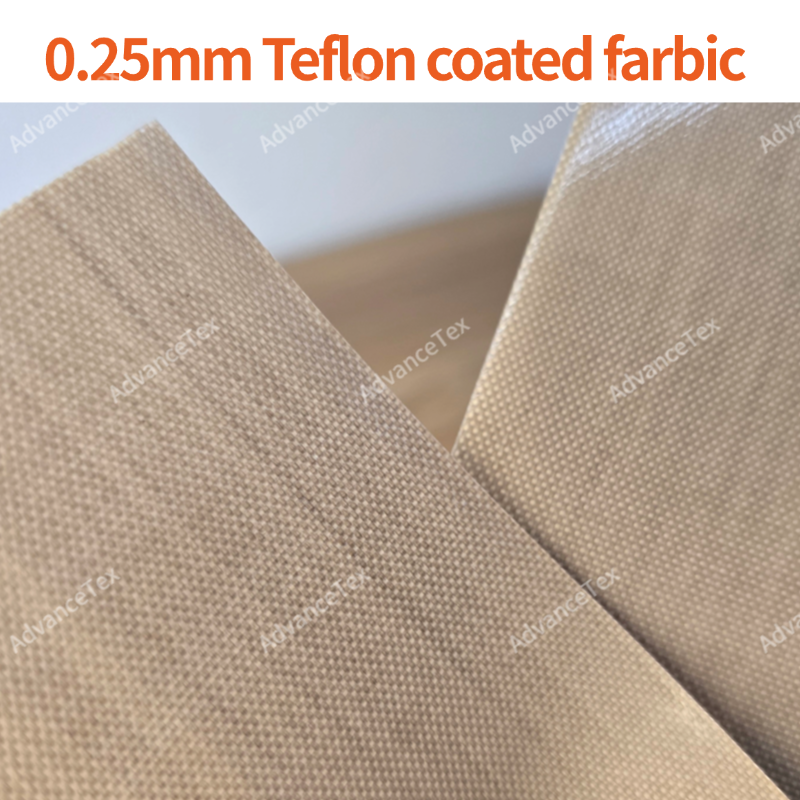

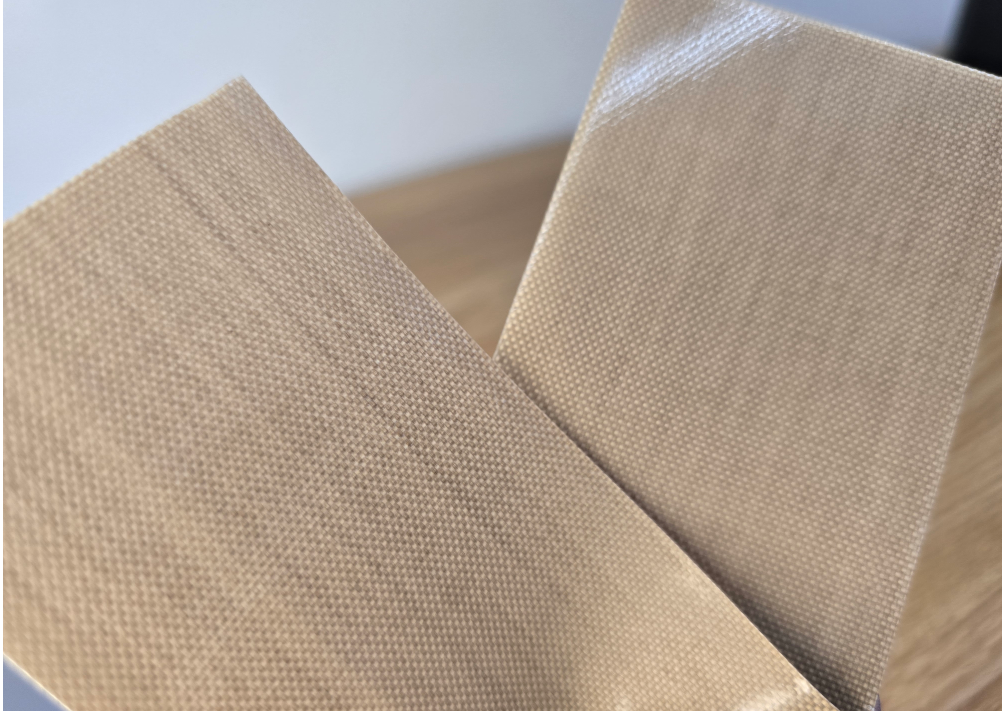

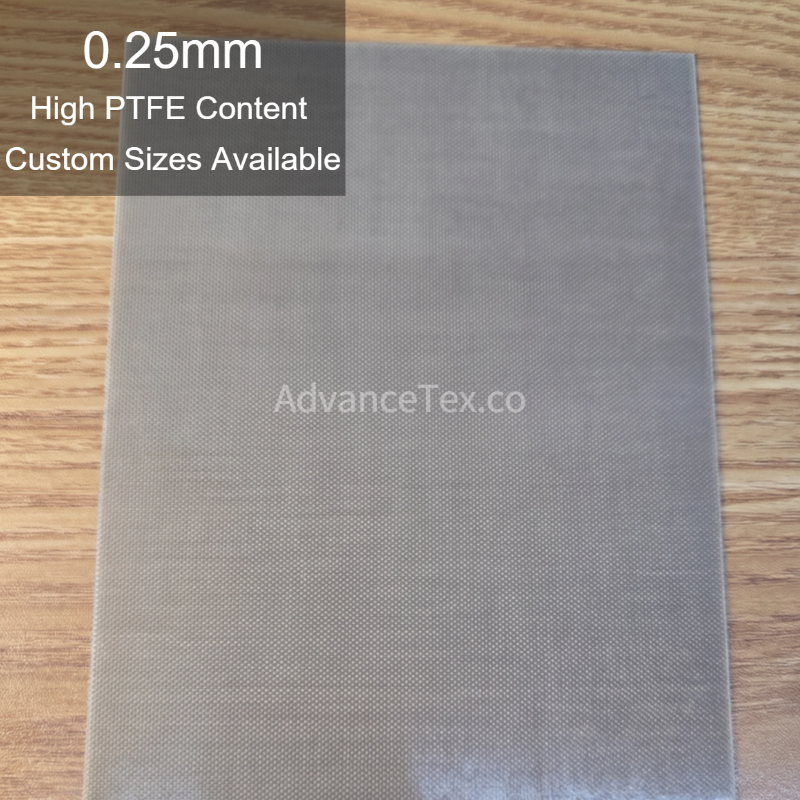

0.25mm PTFE Coated Fiberglass Fabric
1. Product Overview
0.25mm PTFE coated fiberglass fabric is an engineered industrial composite constructed from a high-density woven E-glass substrate impregnated and sintered with high-grade polytetrafluoroethylene (PTFE) dispersion. The reinforced 0.25mm thickness profile delivers high tensile strength, puncture resistance, and extended flex-fatigue life under dynamic mechanical stress. The non-porous fluoropolymer surface ensures clean release against molten polymers, viscous adhesives, and hot plastics under mechanical pressure, while the internal woven fiberglass matrix maintains dimensional stability without stretching or shrinking under elevated working temperatures.
2. Core Technical Parameters
-
Base Substrate: High-density woven E-glass (fiberglass) filament fabric
-
Coating Material: Sintered polytetrafluoroethylene (PTFE / Teflon) dispersion
-
Nominal Thickness: 0.25mm
-
Standard Color: Industrial Light Brown / Amber (Black antistatic option available)
-
Operating Temperature: -70°C to +260°C (Intermittent up to +300°C)
-
Key Characteristics: Non-stick release surface, low friction coefficient, high tensile and tear durability, chemically inert to harsh acids and alkalis, high dielectric strength, dimensional stability
3. Common Applications
-
Buffer release sheets and protective platen covers for solar photovoltaic (PV) module vacuum laminators
-
Heavy-duty continuous heat-sealing belts and contact strips for high-speed packaging machinery, flow-wrappers, and bag sealers
-
Reusable release liners for composite autoclave molding, carpet manufacturing, and rubber vulcanization presses
-
Food-grade non-stick conveyor belts for commercial baking ovens, tortilla presses, and continuous food freezing tunnels
