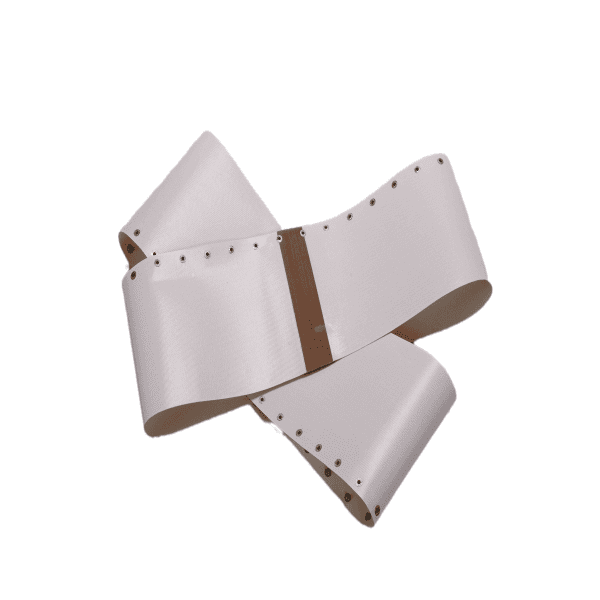

0.8mm White PTFE Coated Fiberglass Conveyor Belt
1. Product Overview
0.8mm white PTFE coated fiberglass conveyor belt is an engineered conveying composite constructed from a high-density woven E-glass textile impregnated and sintered with white polytetrafluoroethylene (PTFE) dispersion. The clean white fluoropolymer surface provides high chemical purity and non-marking release against sticky food products, confectionery syrups, and thermal packaging films. With a reinforced 0.80mm structural profile, the belt delivers high tensile load-bearing capacity, puncture resistance, and extended flex-fatigue life under sustained mechanical tension and high-temperature processing.
2. Core Technical Parameters
-
Base Substrate: High-density woven E-glass (fiberglass) filament fabric
-
Coating Material: Sintered white polytetrafluoroethylene (PTFE / Teflon) dispersion
-
Nominal Belt Thickness: 0.80mm
-
Standard Color: Clean White (non-pigmented, non-marking)
-
Operating Temperature: -70°C to +260°C (Intermittent up to +300°C)
-
Chemical Properties: Chemically inert
-

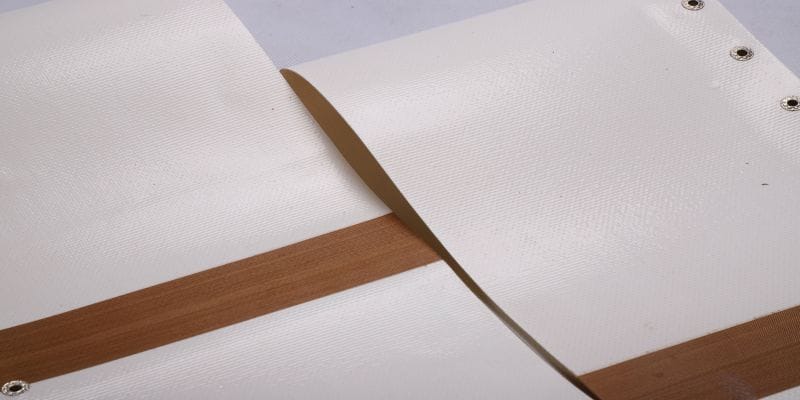

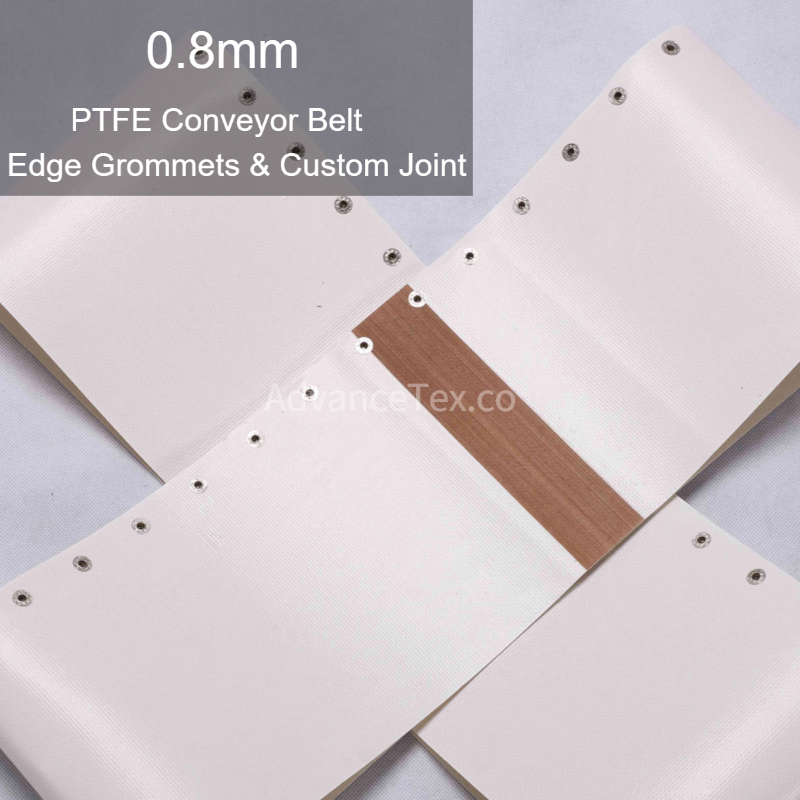

Splicing & Edge Treatments: Overlap heat-sealed splice, staggered bullnose/finger joint, stainless steel mechanical clipper (alligator) joint with PTFE cover flap; heat-sealed PTFE film borders, sewn Kevlar borders, brass tracking eyelets/grommets, silicone/Kevlar guide ropes
-
Key Characteristics: Non-stick release surface, high tensile and tear strength, dimensional stability, resistant to fats, oils, and sanitizing chemicals, high tracking stability
3. Common Applications
-
Endless conveying belts for commercial baking ovens, tortilla presses, and continuous food freezing/cooling tunnels
-
Industrial drying and curing conveyor lines for non-woven fabrics, textiles, and printed materials requiring clean surface support
-
High-temperature heat-shrink packaging tunnels and large-scale blister packaging lines
-
Chemical-resistant and non-contaminating material handling belts for specialized manufacturing environments
