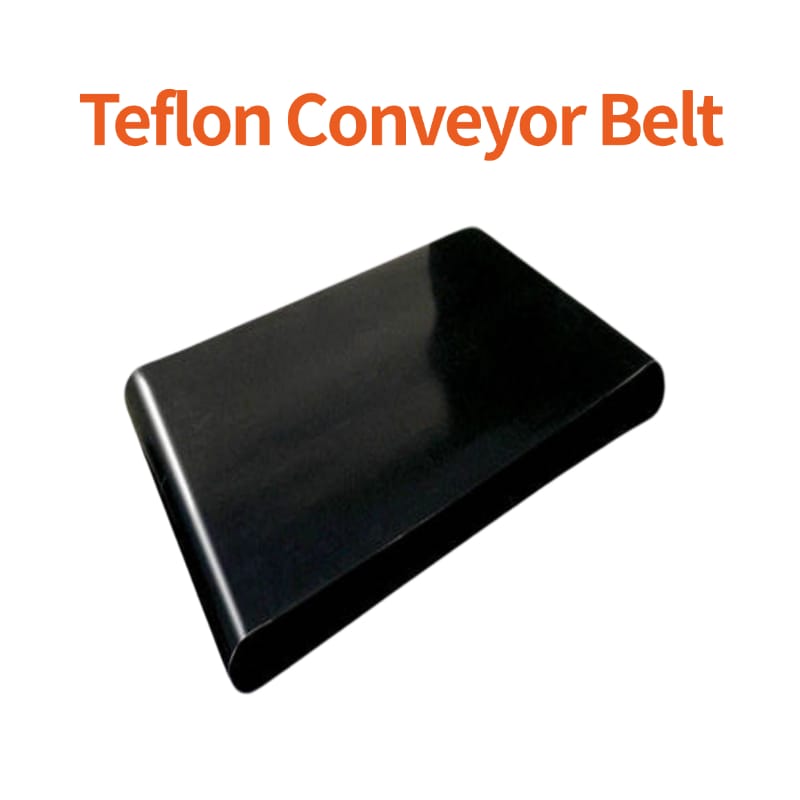

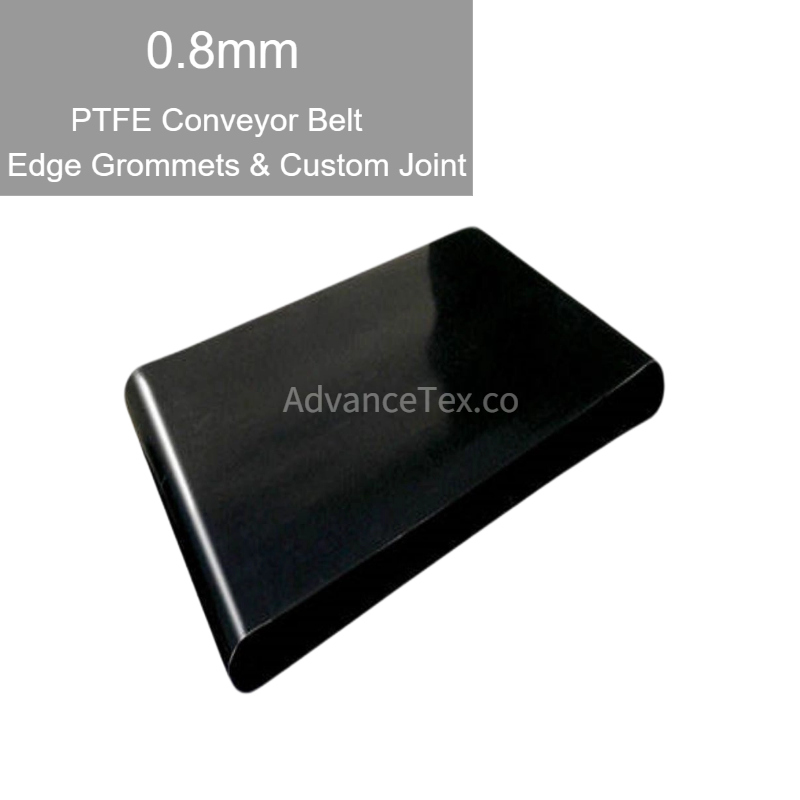

0.8mm Black Anti-Static PTFE Coated Fiberglass Conveyor Belt
1. Product Overview
0.8mm black anti-static PTFE coated fiberglass conveyor belt is an engineered conveying composite constructed from a high-density woven E-glass textile impregnated and sintered with carbon-loaded polytetrafluoroethylene (PTFE) dispersion. The integrated conductive carbon structure provides continuous electrostatic dissipation during high-speed operation, preventing static clinging of lightweight fabrics and eliminating electrostatic spark hazards in solvent-rich curing tunnels. With a reinforced 0.80mm thickness profile, the belt delivers high tensile load-bearing capacity, puncture resistance, and extended flex-fatigue life under sustained roller tension.
2. Core Technical Parameters
-
Base Substrate: High-density woven E-glass (fiberglass) filament fabric
-
Coating Material: Sintered black conductive polytetrafluoroethylene (PTFE / Teflon) dispersion
-
Nominal Belt Thickness: 0.80mm
-
Surface Resistivity: 10⁶ to 10⁹ Ω/sq (Electrostatic dissipative / Anti-static)
-
Operating Temperature: -70°C to +260°C (Intermittent up to +300°C)
-
Splicing & Edge Treatments: Overlap heat-sealed splice, finger splice, stainless steel mechanical clipper (alligator) joint; heat-sealed PTFE film borders, sewn Kevlar borders, brass tracking eyelets/grommets, silicone/Kevlar guide ropes
-
Key Characteristics: Static dissipation, non-stick release surface, low friction coefficient, high tensile strength, dimensional stability, chemical and solvent resistance
3. Common Applications
-
Continuous belts for rotary garment fusing machines, collar/cuff pressers, and textile lamination lines
-
Electrostatic-dissipative conveying belts for sensitive electronic parts, printed circuit boards (PCBs), and powder coating curing ovens
-
High-temperature transport belts for UV, infrared (IR), and hot-air shrinkage tunnels in automated packaging lines
-
Chemical and solvent drying conveyors requiring anti-static spark prevention and high mechanical tracking stability
