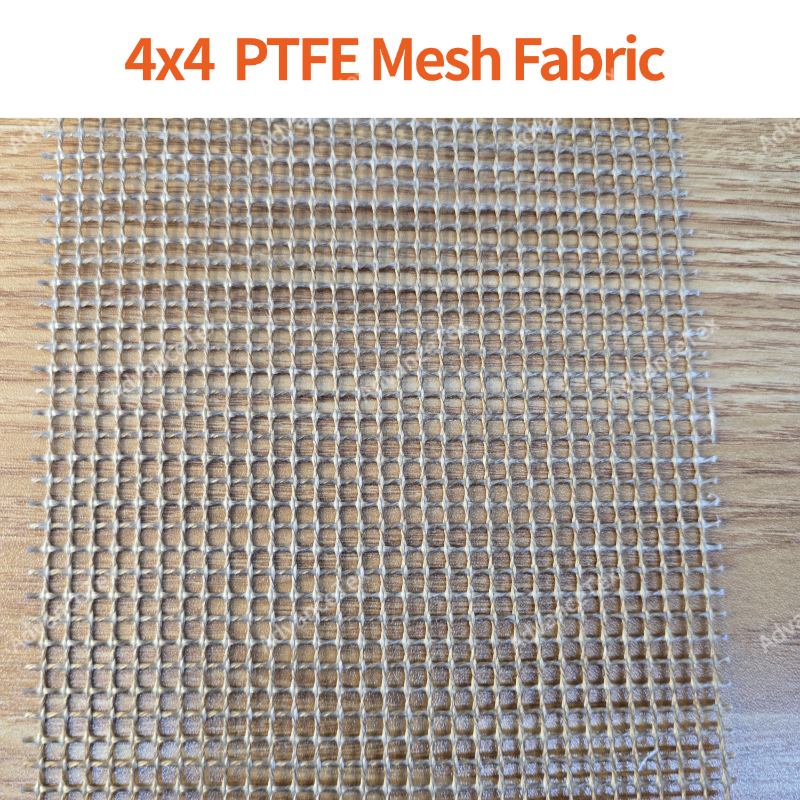

4x4mm PTFE Coated Fiberglass Open Mesh Fabric
1. Product Overview
4x4mm PTFE coated fiberglass open mesh fabric is the standard industrial conveying medium constructed from high-tensile woven E-glass yarns coated and sintered with polytetrafluoroethylene (PTFE) dispersion. The 4x4mm square aperture provides consistent airflow permeability and thermal transfer while providing physical support to prevent conveyed parts and fabrics from sagging. The non-stick fluoropolymer surface prevents inks, adhesives, and polymer residues from adhering to the yarns, while the dimensionally stable fiberglass core resists elongation, tracking deviation, and thermal degradation under continuous conveyor tension.
2. Core Technical Parameters
-
Mesh Aperture: 4mm x 4mm (Square open grid)
-
Base Substrate: High-tensile woven E-glass (fiberglass) mesh yarn
-
Coating Material: Sintered polytetrafluoroethylene (PTFE / Teflon) dispersion
-
Standard Color: Industrial Amber Brown (Black antistatic option available)
-
Operating Temperature: -70°C to +260°C (Intermittent up to +300°C)
-

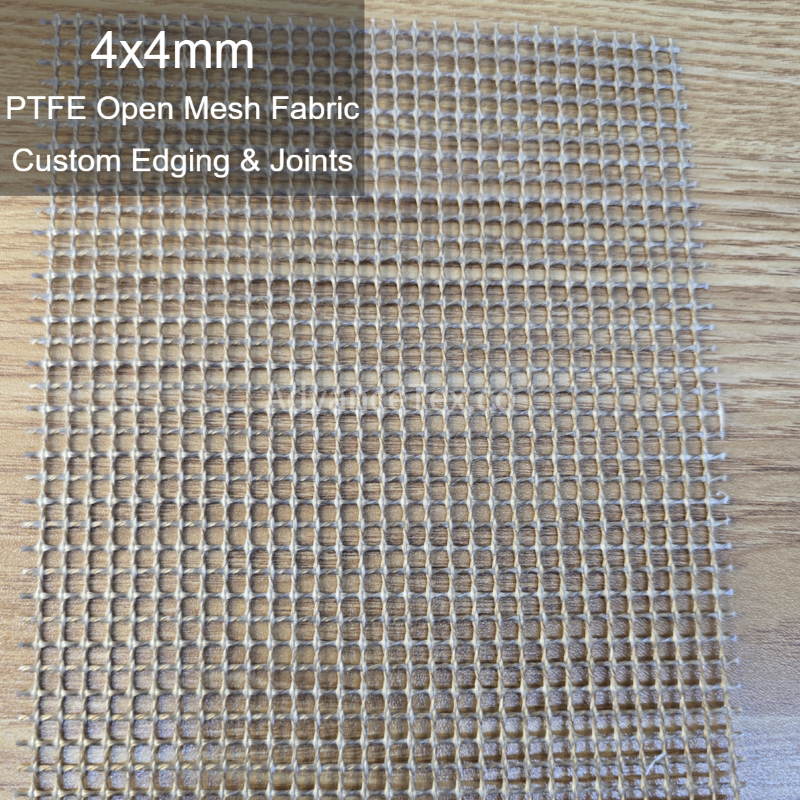

Edge & Joint Options: PTFE film edging, Kevlar sewn edging, bullnose joints, spiral joints, and stainless steel clipper splices
-
Key Characteristics: High airflow permeability, efficient heat circulation, non-stick release surface, low thermal mass, dimensional stability, chemical and solvent resistant
3. Common Applications
-
Continuous conveyor belts for textile screen printing dryers, relaxed dryers, and non-woven fabric curing tunnels
-
High-temperature transport belts in ultraviolet (UV), infrared (IR), and hot-air curing lines
-
Heat-shrink packaging machine conveyor belts and continuous wrapping tunnels
-
Reusable food baking, cooling, and freezing conveyor belts for commercial processing equipment
