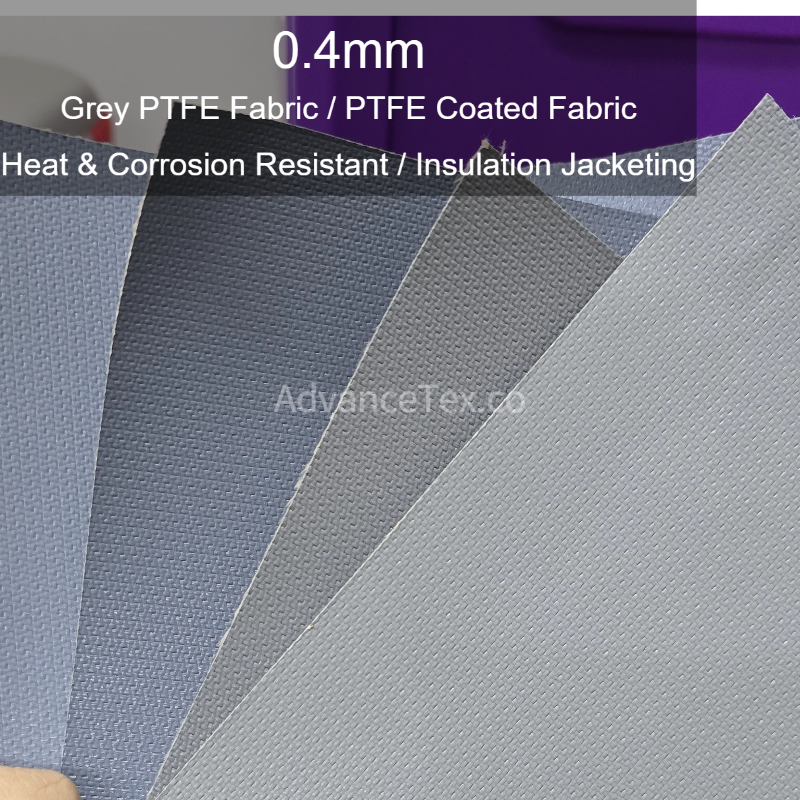

0.4mm Grey Single Sided PTFE Coated Fiberglass Fabric
1. Product Overview
0.4mm grey single-sided PTFE coated fiberglass fabric is an engineered composite designed primarily as an external protective facing for high-performance removable insulation systems. The woven E-glass substrate is coated on one side with high-grade polytetrafluoroethylene (PTFE) resin, imparting hydrophobic, oleophobic, and UV-resistant characteristics to shield internal insulation mats against moisture ingress and chemical splashes. The untreated reverse side retains the raw mechanical texture of the fiberglass fabric, facilitating optimal grip, sewing stability, and adhesive bonding with ceramic fiber or needle-punched glass mat cores.
2. Core Technical Parameters
-
Base Fabric: Woven E-glass (fiberglass) filament cloth
-
Coating Structure: Single-sided PTFE (Polytetrafluoroethylene) dispersion coating
-
Surface Color: Industrial Grey (coated face) / Natural E-Glass White (uncoated reverse)
-
Nominal Thickness: 0.4mm
-
Operating Temperature: Coated face -70°C to +260°C (Fiberglass substrate up to +550°C)
-
Key Characteristics: Universal chemical inertness (acids, alkalis, solvents), non-stick wipe-clean surface, zero water absorption, flame retardant, weather and ozone resistant, flexible stitchability
3. Common Applications
-
Outer jacketing and weather barrier for removable thermal insulation blankets, covers, and valve jackets in chemical and petrochemical plants
-
Flexible protective covers for industrial pumps, turbines, heat exchangers, and marine exhaust systems
-
Chemical spray shields and flange wraps in corrosive acid/alkali piping networks
-
Anti-corrosion protective wraps for outdoor exhaust ductwork, industrial scrubbers, and cleanroom thermal lines
