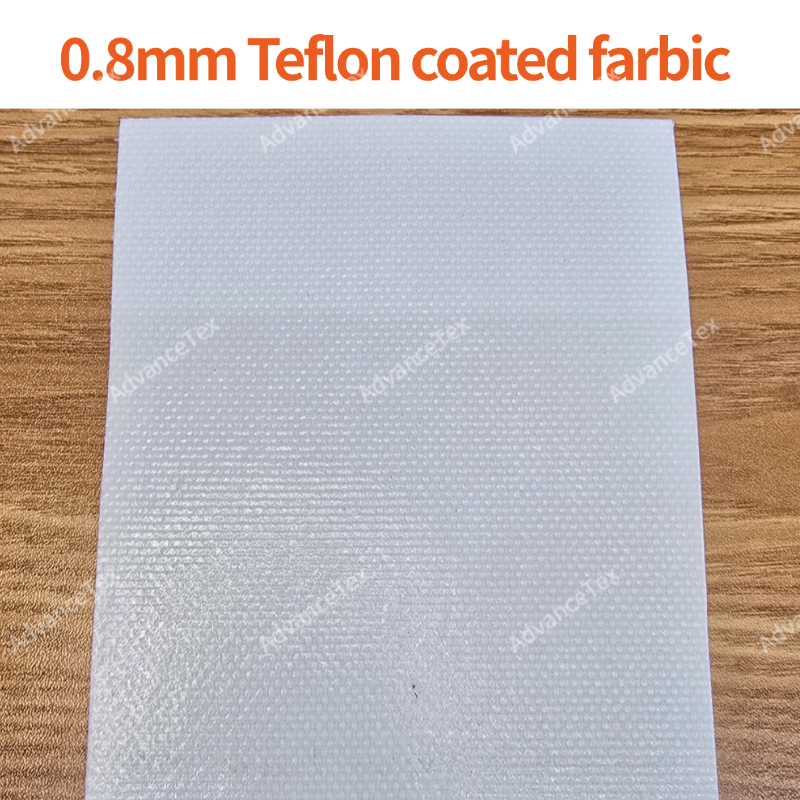

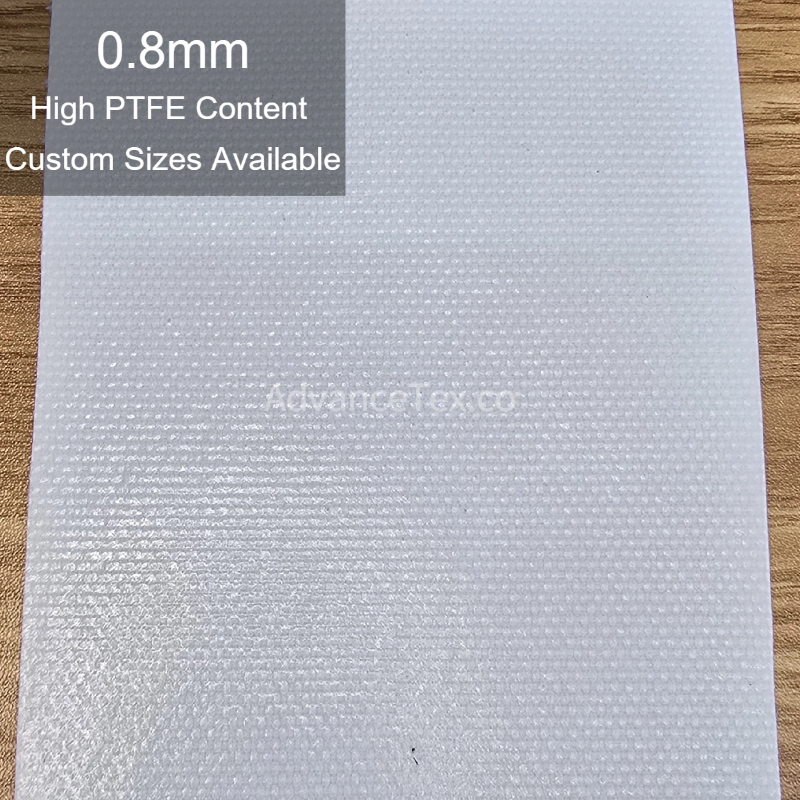

0.8mm White PTFE Coated Fiberglass Fabric
1. Product Overview
0.8mm white PTFE coated fiberglass fabric is an engineered industrial composite constructed from a heavy-duty woven E-glass substrate impregnated and sintered with high-grade white polytetrafluoroethylene (PTFE) dispersion. With an 0.80mm structural profile, it provides high tensile load-bearing capacity, puncture resistance, and extended flex-fatigue life under continuous mechanical tension and thermal stress. The non-porous fluoropolymer surface ensures clean release against molten polymers, viscous adhesives, and hot foods, while the dense internal glass fabric matrix prevents elongation and mechanical distortion across continuous operations.
2. Core Technical Parameters
-
Base Substrate: Heavy-duty woven E-glass (fiberglass) filament fabric
-
Coating Material: Sintered white polytetrafluoroethylene (PTFE / Teflon) dispersion
-
Nominal Thickness: 0.80mm
-
Standard Color: Clean White (non-pigmented, non-marking)
-
Operating Temperature: -70°C to +260°C (Intermittent up to +300°C)
-
Key Characteristics: Non-stick release surface, low friction coefficient, high tensile and tear strength, dimensional stability, chemically inert to harsh acids and alkalis, high dielectric strength
3. Common Applications
-
Base belting material for endless or seamed conveyor belts in continuous industrial drying, curing, and baking ovens
-
Reusable heavy-duty release sheets and platen protection for composite molding, rubber vulcanization, and laminate pressing
-
Chemical-resistant flexible sleeves and expansion joint covers for hot flue gas ducts and industrial exhaust lines
-
High-temperature protective thermal curtains and sliding barrier liners for harsh manufacturing environments
