PTFE Coated Fiberglass Solar Stringer Conveyor Belt
1. Product Overview

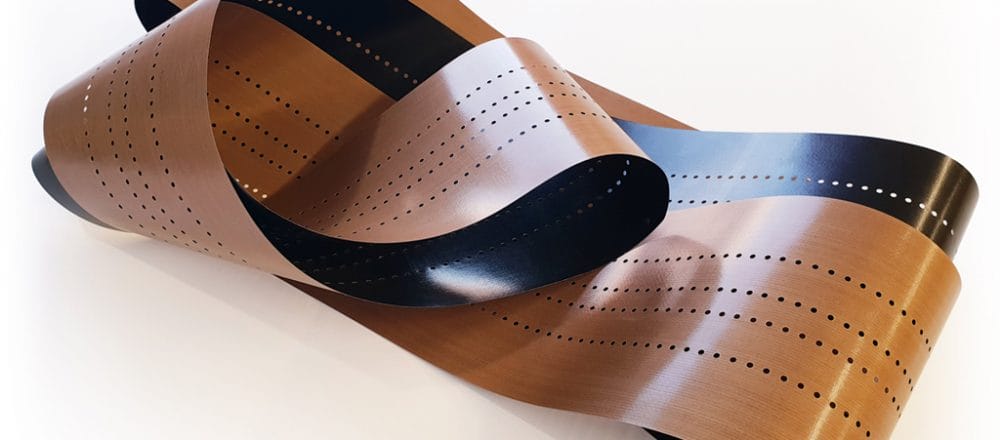

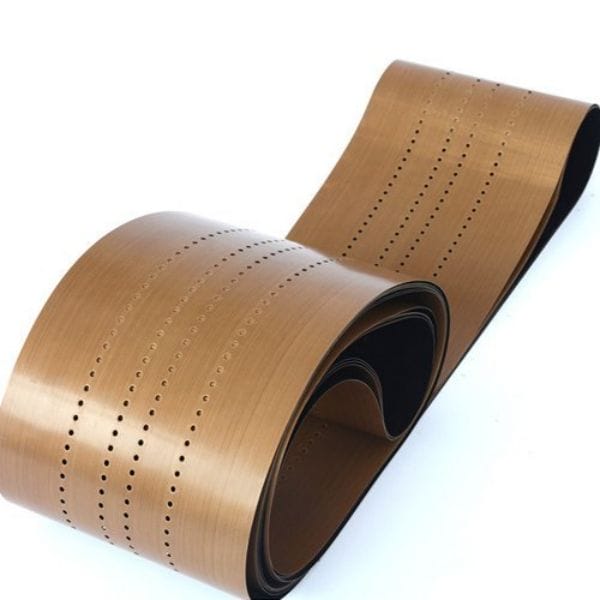

PTFE coated fiberglass solar stringer conveyor belts are precision-fabricated conveying components engineered specifically for automated photovoltaic (PV) solar cell stringer and soldering machines. Constructed from a high-density woven E-glass substrate impregnated with PTFE and integrated with an anti-static carbon-loaded zone, these belts feature precisely arrayed CNC-punched perforations. The perforation pattern enables reliable vacuum suction to hold fragile silicon wafers securely in place during high-speed indexing, while the non-stick fluoropolymer surface prevents flux and solder residues from adhering during thermal soldering cycles.
2. Core Technical Parameters
-
Base Substrate: High-density woven E-glass (fiberglass) filament fabric
-
Coating Material: Sintered polytetrafluoroethylene (PTFE / Teflon) with anti-static carbon zone
-
Perforation Design: Precision CNC-punched vacuum suction holes (custom pitch, diameter, and layout to match stringer suction beds)
-
Surface Resistivity: 10⁶ to 10⁹ Ω/sq (Electrostatic dissipative / Anti-static)
-
Operating Temperature: -70°C to +260°C
-
Joint Configuration: Ultra-smooth flat seamless joint or specialized thermal splice (prevents micro-cracks and wafer breakage)
-
Key Characteristics: Vacuum suction compatibility, electrostatic dissipation, non-stick flux-resistant surface, flat tracking profile, thermal dimensional stability
3. Common Applications
-
Automated solar cell stringer machines and photovoltaic module manufacturing soldering lines
-
High-precision vacuum hold-down conveyors and delicate electronic component handling systems requiring thermal resistance and static protection
