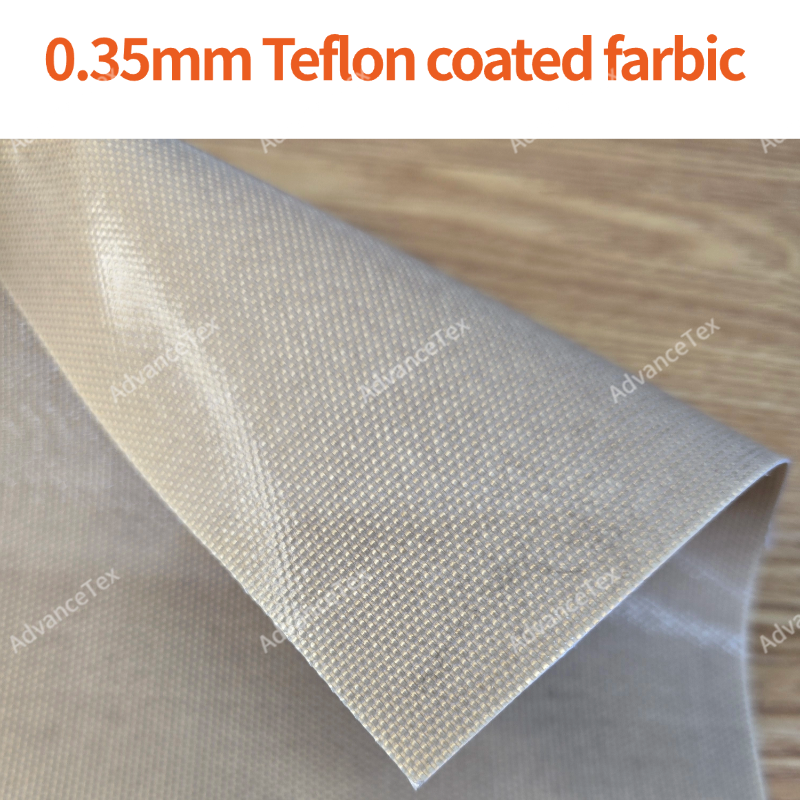

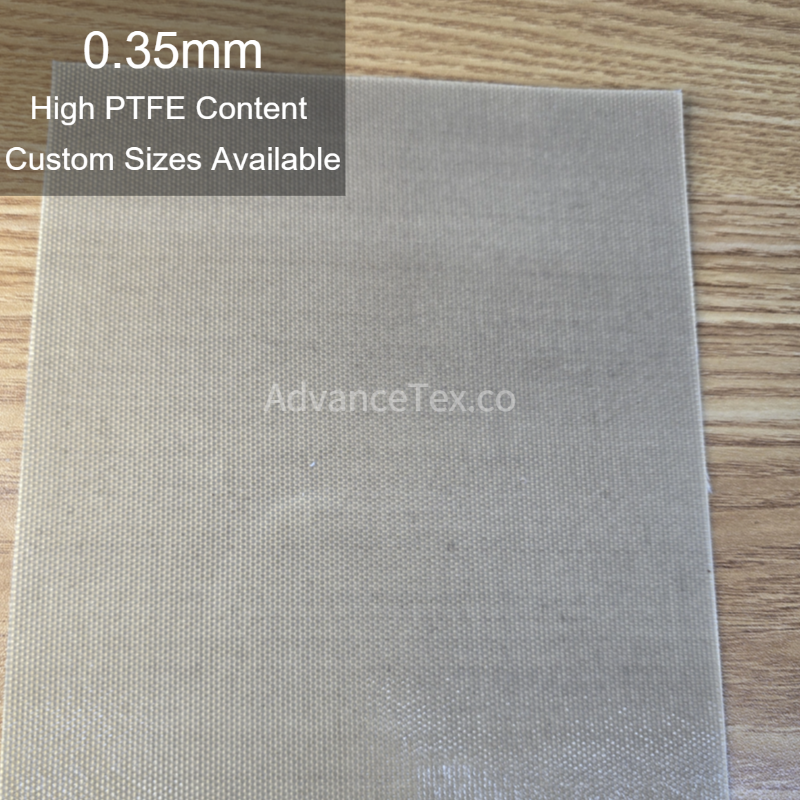

0.35mm PTFE Coated Fiberglass Fabric
1. Product Overview
0.35mm PTFE coated fiberglass fabric is an engineered industrial composite constructed from a high-density woven E-glass substrate impregnated and sintered with high-grade polytetrafluoroethylene (PTFE) dispersion. The high-tension 0.35mm thickness profile provides high tensile load-bearing capacity, puncture resistance, and extended flex-fatigue life under severe mechanical pressure and thermal cycling. The non-porous fluoropolymer encapsulation ensures complete non-stick release against hot melted plastics, viscous resins, and adhesives, while the dense internal glass fabric matrix prevents thermal elongation and mechanical distortion across continuous operations.
2. Core Technical Parameters
-
Base Substrate: High-density woven E-glass (fiberglass) filament fabric
-
Coating Material: Sintered polytetrafluoroethylene (PTFE / Teflon) dispersion
-
Nominal Thickness: 0.35mm
-
Standard Color: Industrial Light Brown / Amber (Black antistatic option available)
-
Operating Temperature: -70°C to +260°C (Intermittent up to +300°C)
-
Key Characteristics: Non-stick release surface, low friction coefficient, high tensile and tear durability, chemically inert to harsh acids and alkalis, high dielectric strength, dimensional stability
3. Common Applications
-
Buffer release sheets and high-durability platen covers for solar photovoltaic (PV) module vacuum laminators
-
Heavy-duty continuous conveyor belts for industrial drying, hot-air shrinkage tunnels, and food processing ovens
-
Reusable release liners for composite autoclave molding, carpet manufacturing, and rubber vulcanization presses
-
Protective welding platen covers for PVC door/window profile fabrication and plastic extrusion lines
