0.5mm Black Anti-Static PTFE Coated Fiberglass Fabric
1. Product Overview

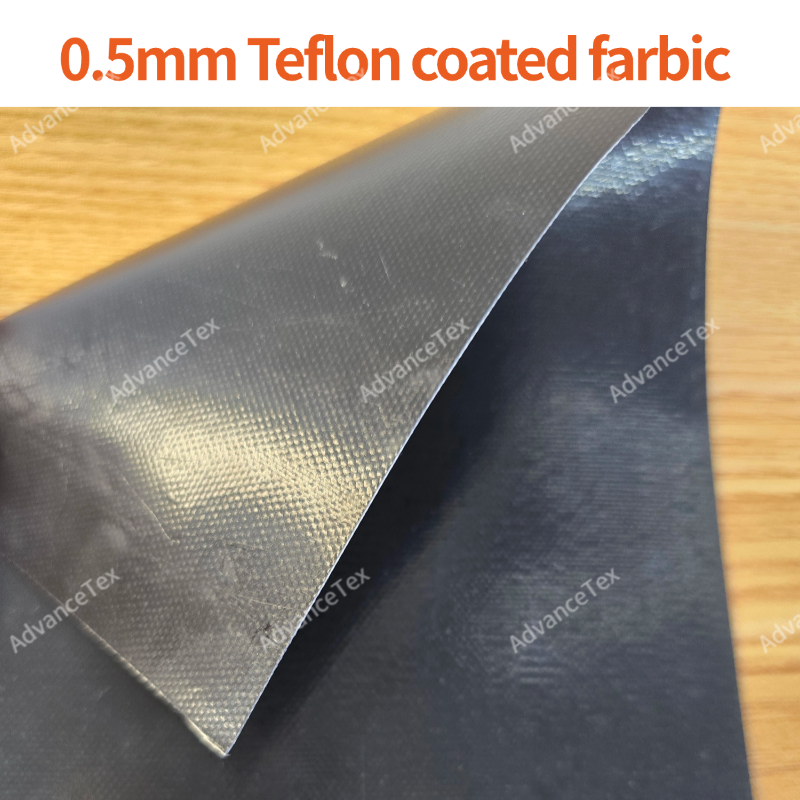

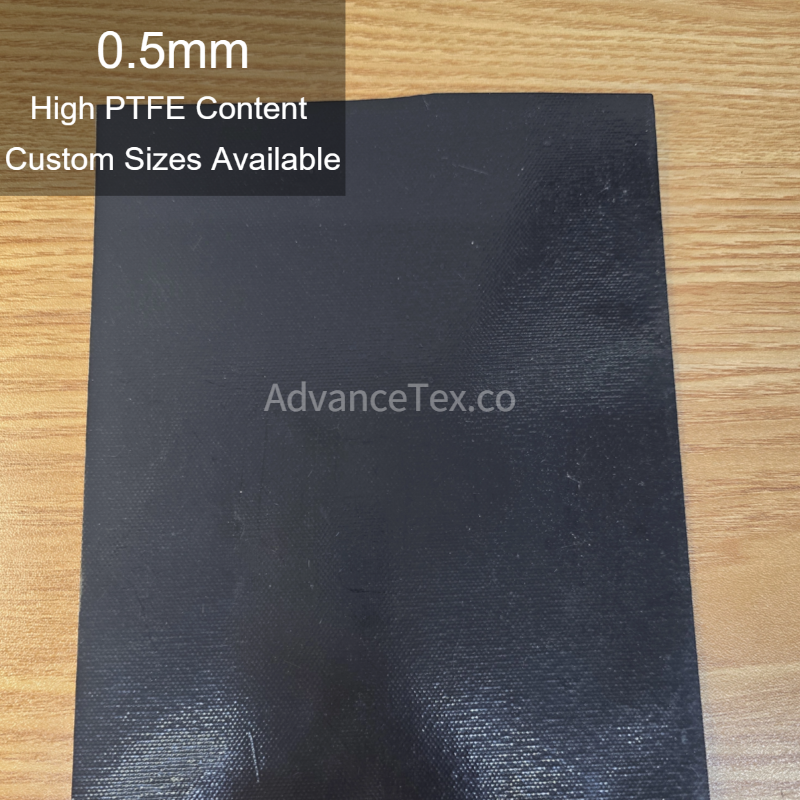

0.5mm black anti-static PTFE coated fiberglass fabric is an engineered industrial composite constructed from a heavy-weight woven E-glass substrate impregnated and sintered with carbon-loaded polytetrafluoroethylene (PTFE) fluoropolymer dispersion. The integrated conductive carbon formulation provides continuous electrostatic dissipation during high-speed web movement, eliminating static charge accumulation, ink misting, and spark hazards in solvent-rich environments. With a reinforced 0.50mm thickness profile, it delivers high structural rigidity, mechanical wear resistance, and flex-fatigue life while retaining a non-stick, chemically inert surface resistant to printing inks, industrial solvents, and hot polymers.
2. Core Technical Parameters
-
Base Substrate: Heavy-weight woven E-glass (fiberglass) filament fabric
-
Coating Material: Sintered black conductive polytetrafluoroethylene (PTFE / Teflon) dispersion
-
Nominal Thickness: 0.50mm
-
Standard Color: Industrial Matte Black
-
Surface Resistivity: 10⁶ to 10⁹ Ω/sq (Electrostatic dissipative / Anti-static)
-
Operating Temperature: -70°C to +260°C (Intermittent up to +300°C)
-
Key Characteristics: Electrostatic dissipation, non-stick release surface, low friction coefficient, high tensile and tear strength, dimensional stability, chemical and solvent inertness
3. Common Applications
-
Flexible ink baffles, doctor blade side seals, and splash containment strips for high-speed gravure and flexographic printing presses
-
Heat-retaining and anti-static containment curtains for industrial heat-shrink tunnels and packaging machinery
-
Heavy-duty conveyor belts and release sheets for drying, curing, and fusing processes involving static-sensitive materials
-
Anti-static sliding liners and protective covers for chutes, vibratory feeders, and hoppers handling flammable powders or electronic components
