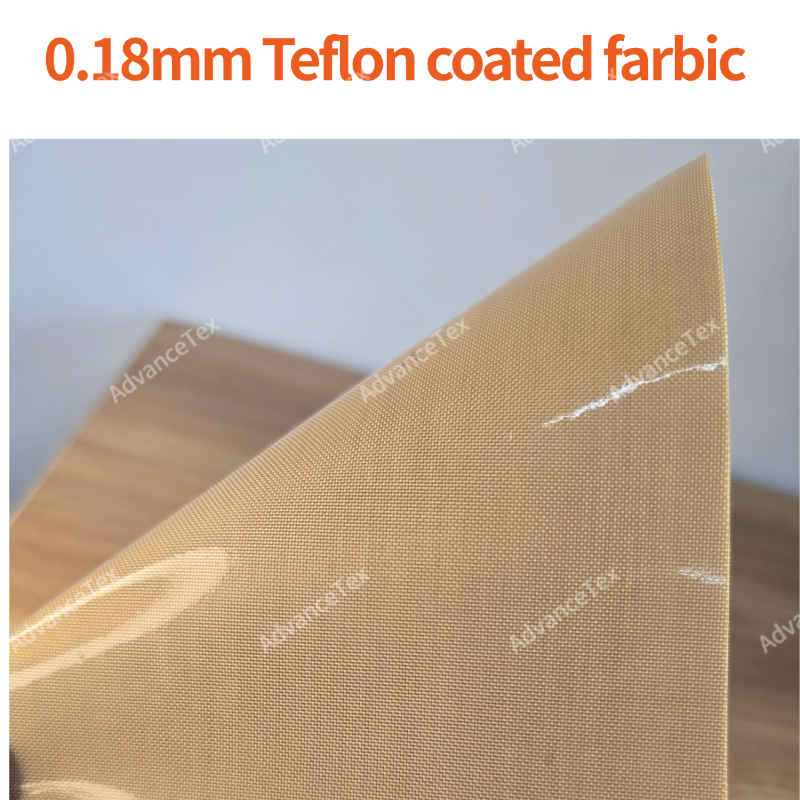

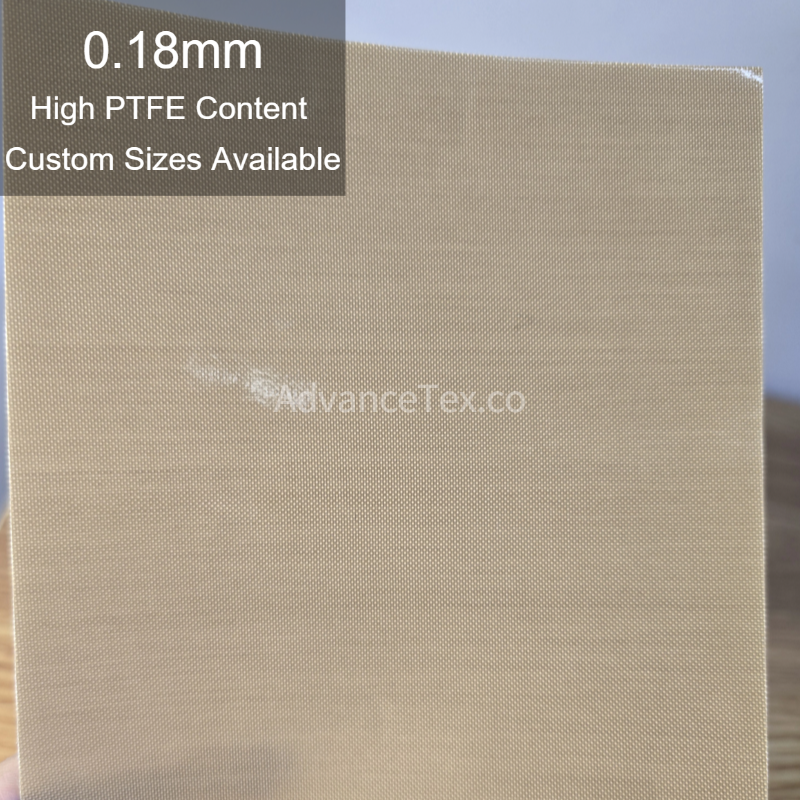

0.18mm PTFE Coated Fiberglass Fabric
1. Product Overview
0.18mm PTFE coated fiberglass fabric is an engineered industrial composite constructed from a high-density woven E-glass substrate impregnated and sintered with high-grade polytetrafluoroethylene (PTFE) dispersion. With a reinforced 0.18mm profile, it provides higher tensile strength, greater puncture resistance, and extended flex-fatigue life compared to thinner grades while retaining efficient heat conduction. The non-porous fluoropolymer surface ensures clean release against molten polymers, viscous adhesives, and hot plastics under mechanical pressure, while the internal glass matrix prevents elongation and thermal shrinkage across continuous operations.
2. Core Technical Parameters
-
Base Substrate: High-density woven E-glass (fiberglass) filament fabric
-
Coating Material: Sintered polytetrafluoroethylene (PTFE / Teflon) dispersion
-
Nominal Thickness: 0.18mm
-
Standard Color: Industrial Light Brown / Amber (Black antistatic option available)
-
Operating Temperature: -70°C to +260°C (Intermittent up to +300°C)
-
Key Characteristics: Non-stick release surface, low friction coefficient, high tensile and tear durability, chemically inert to harsh acids and alkalis, high dielectric strength, dimensional stability
3. Common Applications
-
Buffer release sheets and protective platen covers for solar photovoltaic (PV) module vacuum laminators
-
Wear-resistant heat-sealing contact strips and release barriers for packaging machinery, blister packaging, and form-fill-seal units
-
Reusable release liners for composite autoclave molding, epoxy resin curing, and hot-press lamination
-
Food-grade non-stick conveyor belts for baking tunnels, tortilla presses, and continuous cooling systems
