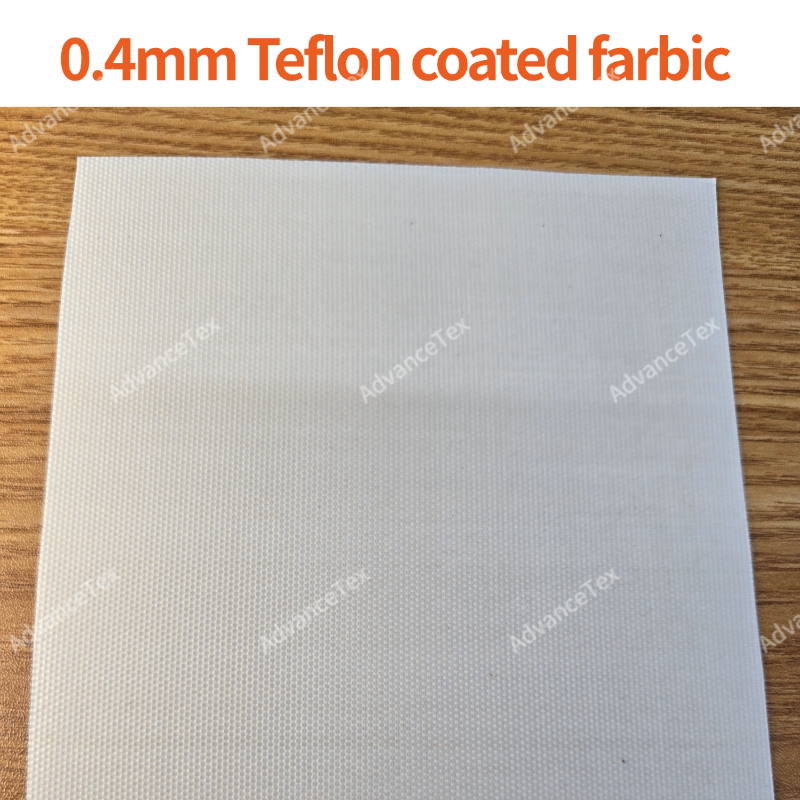

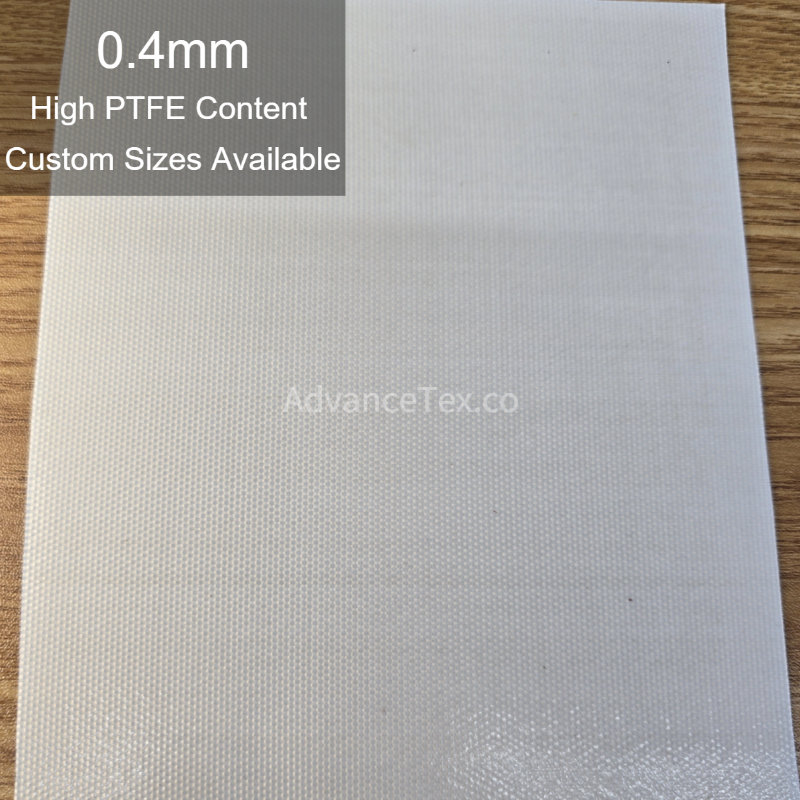

0.4mm White PTFE Coated Fiberglass Fabric
1. Product Overview
0.4mm white PTFE coated fiberglass fabric is an engineered industrial composite constructed from a high-density woven E-glass substrate impregnated and sintered with white polytetrafluoroethylene (PTFE) dispersion. The pigment-free, non-contaminating white fluoropolymer surface provides high chemical purity and clean non-stick release against viscous syrups, dough, cooking oils, and medical packaging films. The reinforced 0.40mm woven fiberglass carcass provides dimensional stability, low thermal elongation, and high tensile and tear strength under continuous belt tension and thermal cycling.
2. Core Technical Parameters
-
Base Substrate: High-density woven E-glass (fiberglass) filament fabric
-
Coating Material: Sintered white polytetrafluoroethylene (PTFE / Teflon) dispersion
-
Nominal Thickness: 0.40mm
-
Standard Color: Clean White (non-pigmented, non-marking)
-
Operating Temperature: -70°C to +260°C (Intermittent up to +300°C)
-
Chemical Properties: Chemically inert
-
Key Characteristics: Non-stick release surface, low friction coefficient, high tensile and tear durability, resistant to fats, oils, and sanitizing chemicals, high dielectric strength, dimensional stability
3. Common Applications
-
Continuous non-stick conveyor belts for automated bakery ovens, cooling tunnels, tortilla presses, and confectionery processing
-
High-purity release sheets and heat-sealing platen covers for pharmaceutical packaging, medical pouch sealing, and sterile blister packaging
-
Buffer release sheets and non-marking platen covers for solar photovoltaic (PV) module lamination and cleanroom hot-press equipment
-
Reusable food drying trays, freeze-drying shelf liners, and microwave heating belts
