Industrial PTFE Coated Fiberglass Fabric (Teflon Cloth)
1. Product Overview
Industrial PTFE coated fiberglass fabric (commonly known as Teflon cloth) is an engineered composite constructed from a dimensionally stable woven E-glass textile substrate impregnated and sintered with high-grade polytetrafluoroethylene (PTFE) fluoropolymer dispersion. The non-stick fluoropolymer encapsulation imparts low friction, moisture resistance, and universal chemical inertness across continuous operating temperatures. The internal fiberglass matrix prevents elongation, shrinkage, and mechanical deformation under high tension and heat. It is widely used across packaging, thermal lamination, and food manufacturing as a durable release barrier and conveying medium.
2. Core Technical Parameters
-
Base Substrate: Precision woven E-glass (fiberglass) filament fabric
-
Coating Material: Sintered polytetrafluoroethylene (PTFE / Teflon) dispersion
-
Thickness Range: 0.08mm to 1.0mm (Standard options: 0.13mm, 0.18mm, 0.25mm, 0.35mm)
-

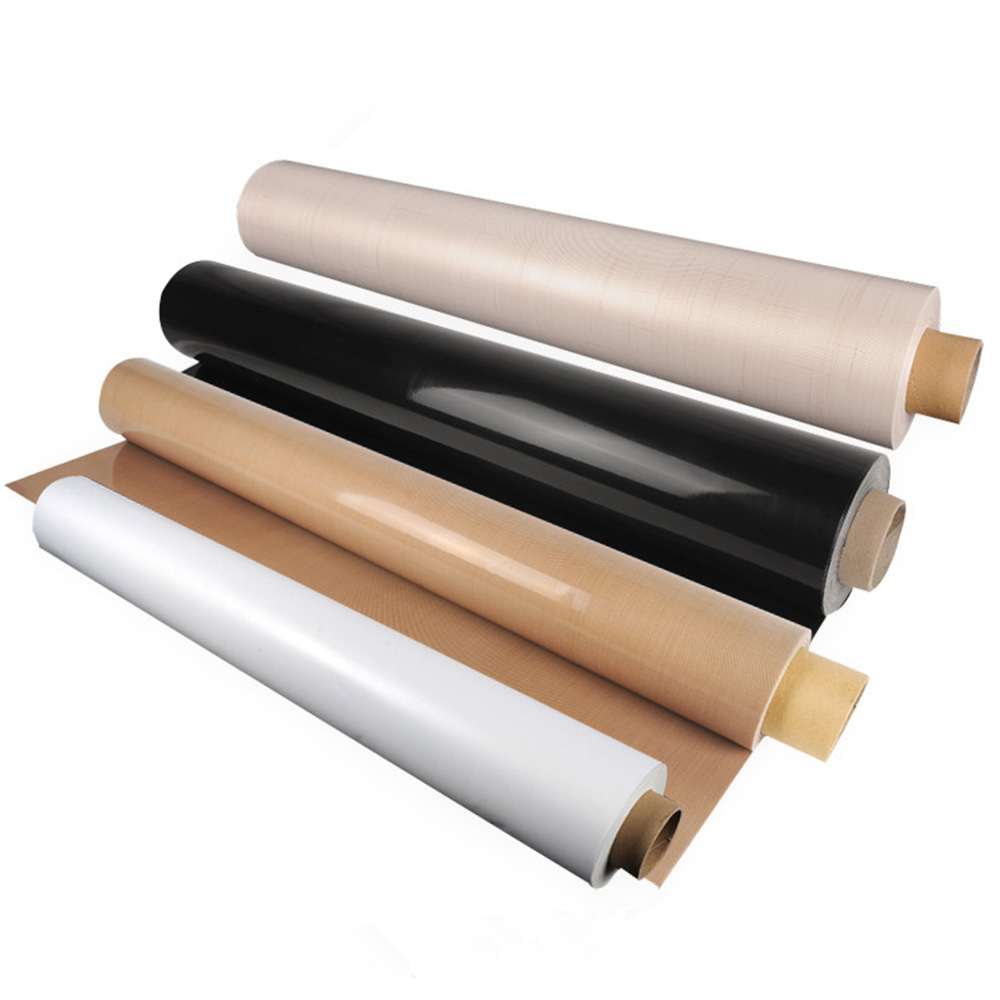

Standard Colors: Industrial Brown (Amber/Beige), Black (Antistatic option), Pure White
-
Operating Temperature: -70°C to +260°C (Intermittent up to +300°C)
-
Key Characteristics: Non-stick release surface, low friction coefficient, chemically inert to acids and alkalis, high dielectric strength, dimensional stability, non-toxic food-contact compliant
3. Common Applications
-
Non-stick release sheets and heat-sealing belts for plastic bag manufacturing, L-bar sealers, and form-fill-seal packaging machinery
-
Conveyor belts for food baking, drying, grilling, and automated frozen dough conveying tunnels
-
Reusable release sheets for solar panel vacuum lamination, aerogel blanket pressing, and composite autoclave curing
-
High-temperature electrical insulation tapes, transformer wrapping, and chemical barrier expansion joint linings
