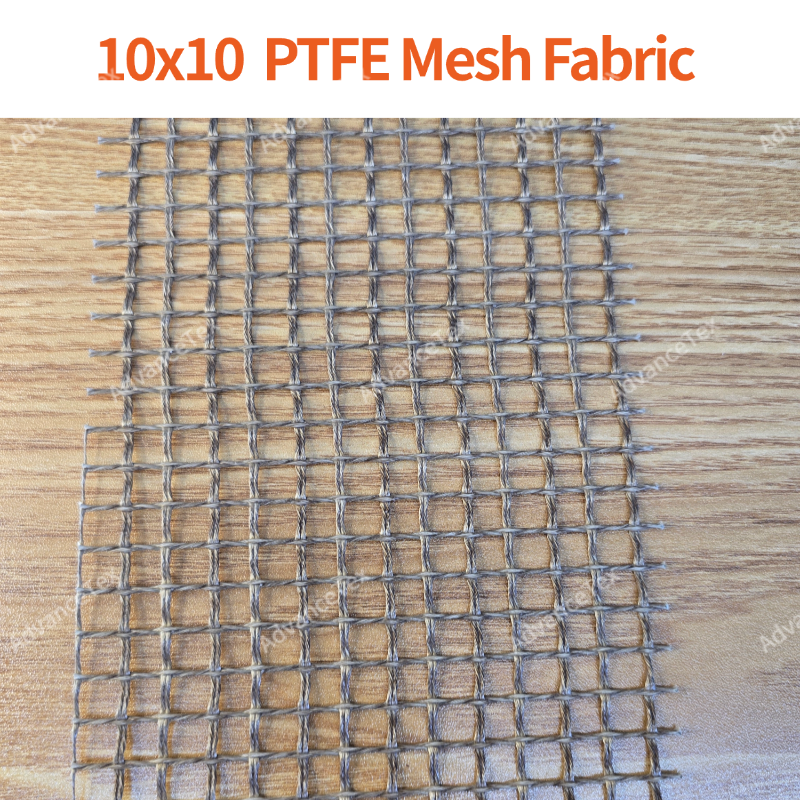

10x10mm PTFE Coated Fiberglass Open Mesh Fabric
1. Product Overview
10x10mm PTFE coated fiberglass open mesh fabric is an engineered industrial conveying textile constructed from high-tensile woven E-glass yarns coated and sintered with high-grade polytetrafluoroethylene (PTFE) dispersion. The large 10x10mm aperture provides high open area for airflow and liquid drainage, accelerating moisture evaporation and reducing thermal drying times. The non-stick fluoropolymer encapsulation prevents adhesives, resins, and wet residues from sticking to the grid, while the dimensionally stable fiberglass core resists stretching, tracking deviation, and thermal degradation under continuous conveyor tension.
2. Core Technical Parameters
-
Mesh Aperture: 10mm x 10mm (Square open grid)
-
Base Substrate: High-tensile woven E-glass (fiberglass) mesh yarn
-
Coating Material: Sintered polytetrafluoroethylene (PTFE / Teflon) dispersion
-
Standard Color: Industrial Amber Brown (Black antistatic option available)
-
Operating Temperature: -70°C to +260°C (Intermittent up to +300°C)
-

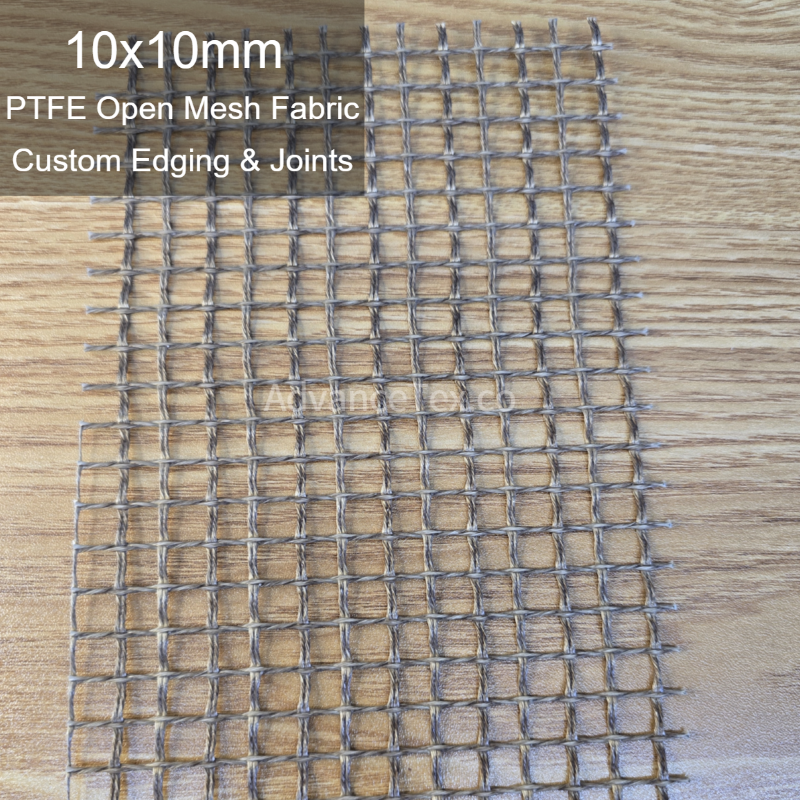

Edge & Joint Options: PTFE film edging, Kevlar sewn edging, bullnose joints, spiral joints, and stainless steel clipper splices
-
Key Characteristics: High airflow permeability, efficient fluid drainage, non-stick release surface, low thermal mass, dimensional stability, chemical and solvent resistant
3. Common Applications
-
Continuous conveyor belts for textile drying machines, relaxed dryers, and non-woven fabric curing tunnels
-
Industrial washing, rinsing, and fluid-drainage conveyor lines for chemical and mechanical parts processing
-
Drying and cooling conveyor belts for large-format materials, carpets, and coarse particle processing
-
UV, IR, and RF drying tunnel belts requiring high thermal penetration and air circulation
