Union and Flange Insulation Jackets
1. Product Overview

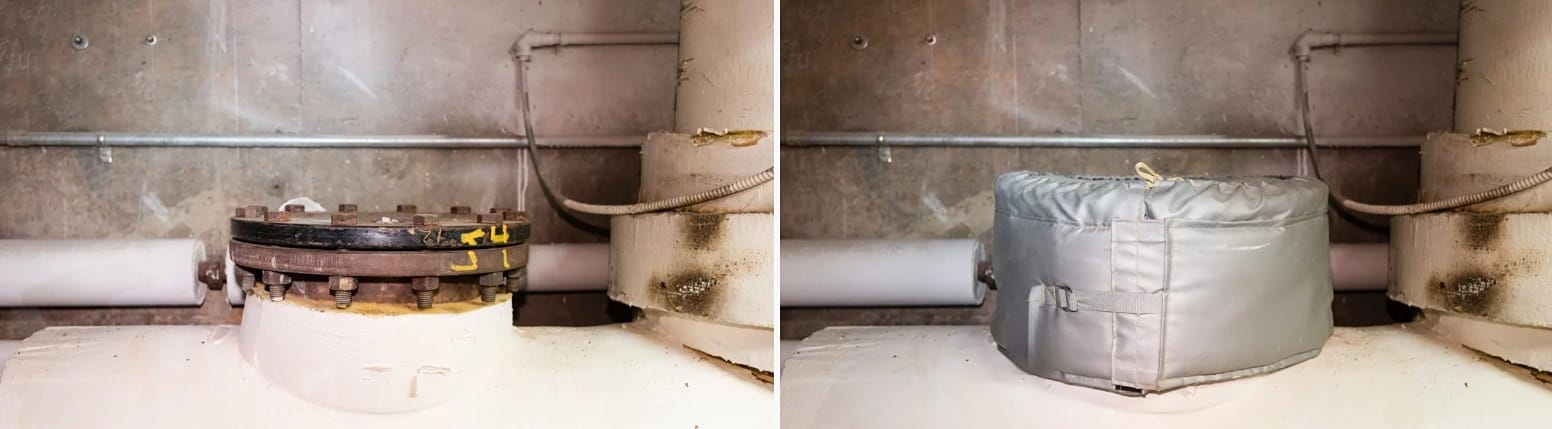

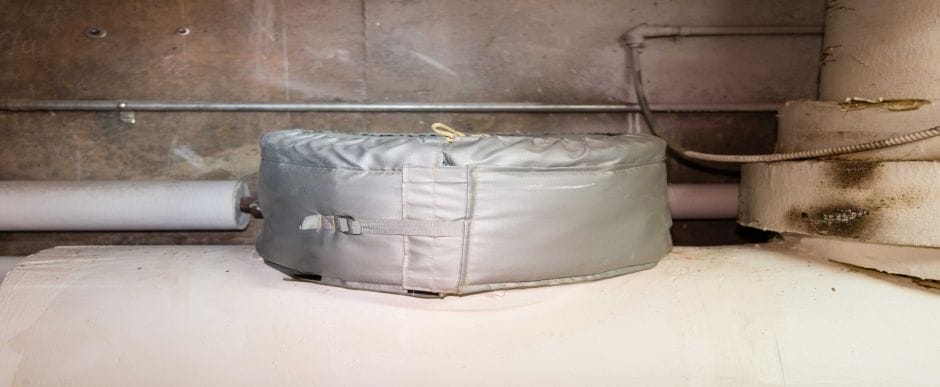

Union and flange insulation jackets are custom-fabricated removable thermal covers engineered specifically to fit industrial pipe flanges, unions, bolted connection points, and joints across complex piping networks. Because flanges and unions are critical connection points that undergo disproportionate mechanical stress and require regular bolt tensioning or leakage inspections, traditional rigid stay-in-place insulation is impractical. Constructed from high-temperature resistant coated fiberglass outer fabrics and filled with high-efficiency thermal insulation blankets, these removable jackets eliminate severe radiant heat loss, prevent thermal bridging, and allow hassle-free detachment and reinstallation for routine maintenance without system downtime.
2. Core Technical Parameters
-
Outer & Inner Fabric: High-temperature resistant PTFE, silicone, or vermiculite-coated fiberglass fabrics
-
Insulation Core: High-density needled fiberglass wool or ceramic fiber felt (custom thicknesses available)
-
Operating Temperature: Up to 550°C (1022°F) or higher depending on industrial piping requirements
-
Fastening System: Heavy-duty Velcro flaps, retention straps, stainless steel D-rings, and lacing anchors
-
Key Characteristics: Custom-contoured fit for flange and union geometries, removable and reusable, rapid installation, excellent thermal efficiency, weather and chemical resistant
3. Common Applications
-
Industrial steam systems, high-pressure gas lines, and fluid transportation networks featuring bolted pipe flanges and unions
-
Chemical processing plants, oil refineries, and power generation facilities requiring stress-free thermal management on connection joints
-
Maintenance-heavy piping environments where frequent inspection and retightening of flange bolts are required
