Condensate Pump Insulation Jackets
1. Product Overview

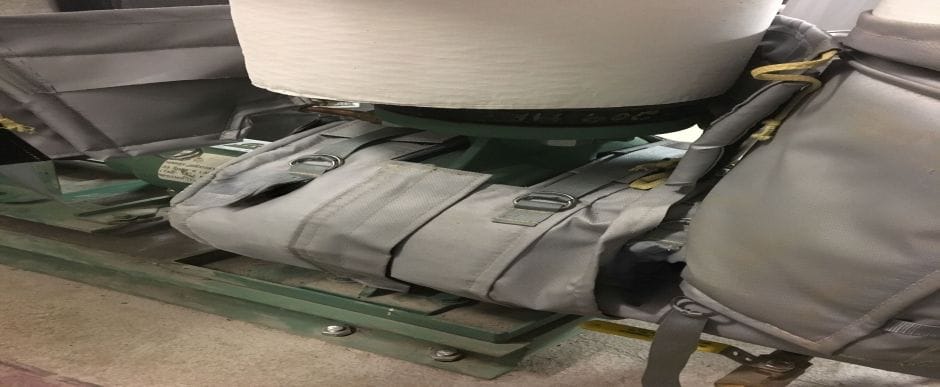

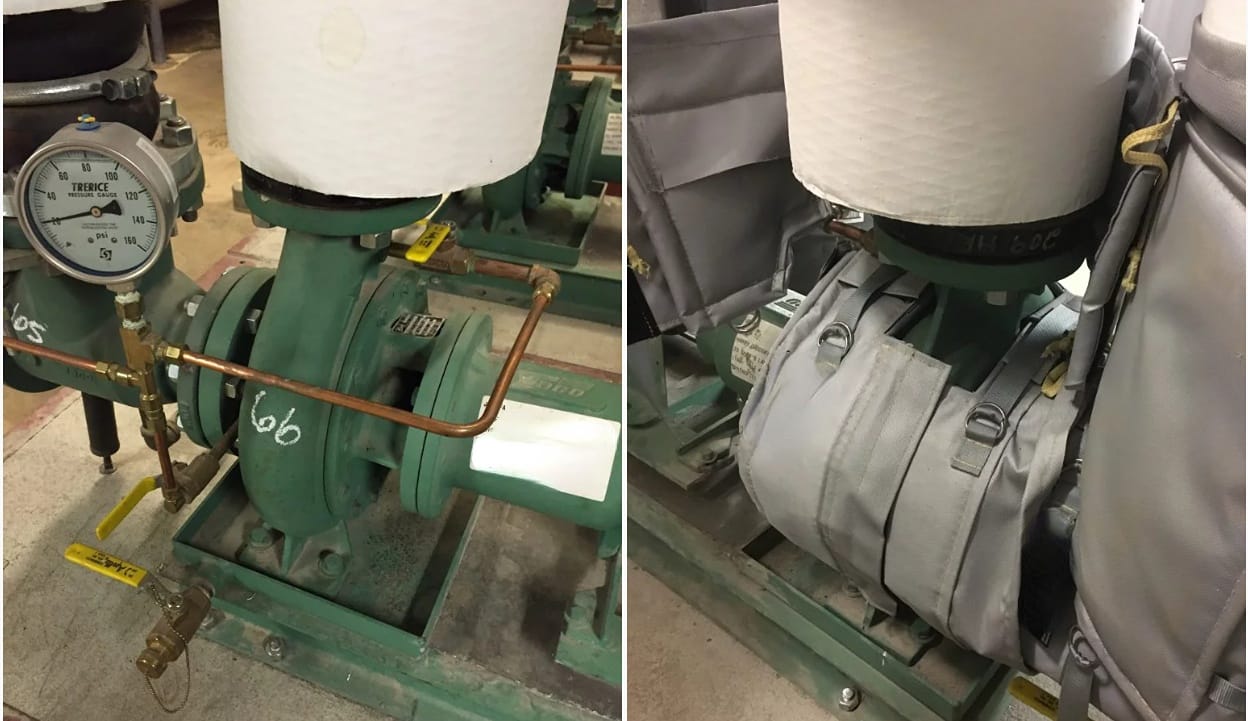

Condensate pump insulation jackets are custom-fabricated removable thermal covers engineered specifically to fit industrial condensate pumps, boiler feed pumps, and associated piping connections. In steam systems, maintaining the temperature of recovered condensate is vital for overall plant energy efficiency. Constructed from high-temperature resistant coated fiberglass outer fabrics and filled with high-efficiency thermal insulation blankets, these jackets prevent heat dissipation, reduce fuel consumption, and protect workers from accidental contact burns while allowing quick detachment for pump servicing and mechanical maintenance.
2. Core Technical Parameters
-
Outer & Inner Fabric: High-temperature resistant PTFE, silicone, or vermiculite-coated fiberglass fabrics
-
Insulation Core: High-density needled fiberglass wool or ceramic fiber felt (custom thicknesses available)
-
Operating Temperature: Up to 550°C (1022°F) depending on system thermal requirements
-
Fastening System: Heavy-duty Velcro flaps, robust retention straps, and stainless steel D-rings
-
Key Characteristics: Custom contoured pump fit, removable and reusable, rapid installation, excellent thermal efficiency, weather and chemical resistant
3. Common Applications
-
Steam distribution networks, power generation plants, and district heating systems featuring condensate return pumps
-
Chemical processing facilities, pulp and paper mills, and heavy manufacturing plants requiring boiler efficiency optimization
-
Commercial buildings and industrial boiler rooms where pump freeze protection and personnel safety are required
