Pipe Reducer Insulation Jackets
1. Product Overview

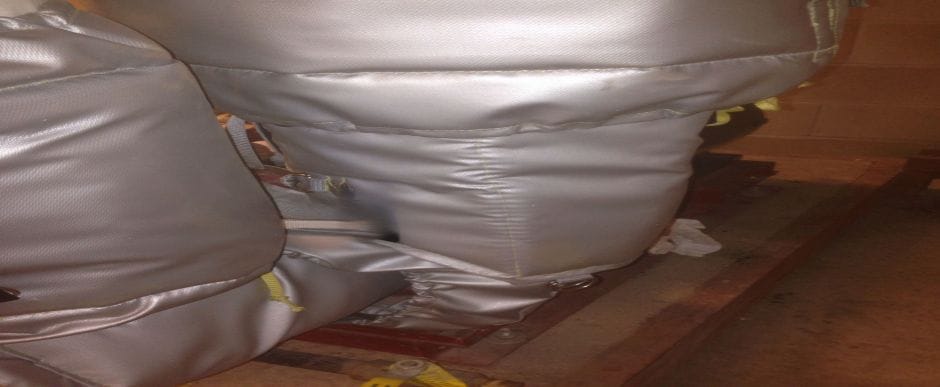

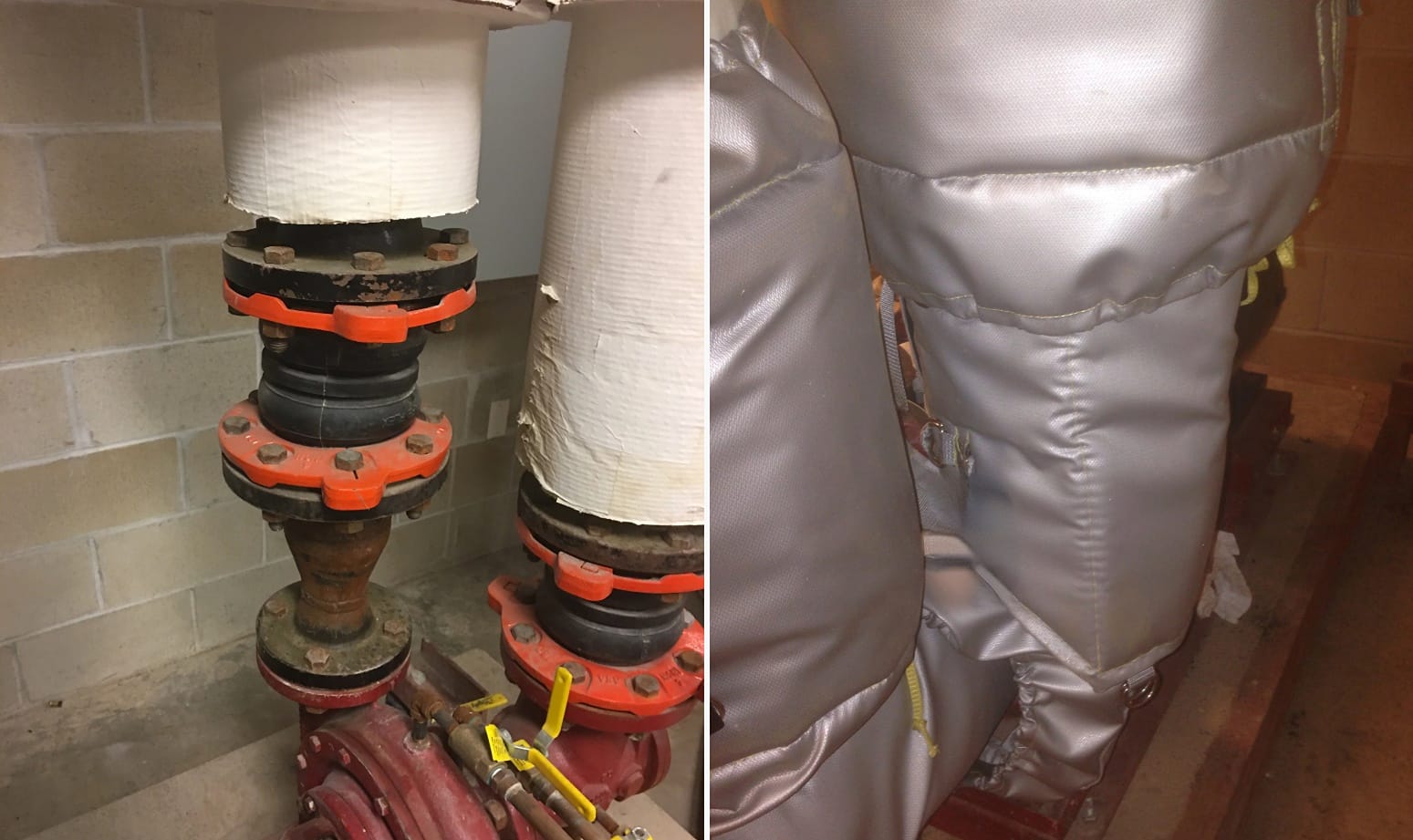

Pipe reducer insulation jackets are custom-fabricated removable thermal covers engineered specifically to fit industrial pipe reducers, eccentric/concentric couplings, and tapered diameter transitions in complex piping networks. Because pipe reducers feature large surface areas and irregular geometries that connect pipes of varying diameters, traditional stay-in-place insulation is extremely time-consuming and difficult to install. Constructed from high-temperature resistant coated fiberglass outer fabrics and filled with high-efficiency thermal insulation blankets, these removable jackets eliminate massive radiant heat loss, lower plant energy consumption, and allow hassle-free detachment and reinstallation for routine pipe inspections.
2. Core Technical Parameters
-
Outer Fabric: 0.4 mm grey single-sided PTFE-coated fiberglass
-
Insulation Core: Fiberglass wool, thickness to suit the operating temperature
-
Operating Temperature: Designed to the equipment surface temperature; we have built jackets for surfaces up to about 350°C. Please ask us about higher temperatures.
-
Fastening System: Heavy-duty Velcro flaps, retention straps, and stainless steel D-rings or lacing anchors
-
Key Characteristics: Custom-contoured fit for tapered reducer geometries, removable and reusable, rapid installation, excellent thermal efficiency, weather and chemical resistant
3. Common Applications
-
Industrial steam heating systems, large fluid distribution networks, and power generation piping featuring diameter transitions
-
Chemical processing plants, oil refineries, and heavy manufacturing facilities requiring heat loss mitigation on irregular pipe fittings
-
Maintenance-heavy piping environments where frequent inspection of pipe connections and reducers is required
