Ball Valve Insulation Covers
1. Product Overview

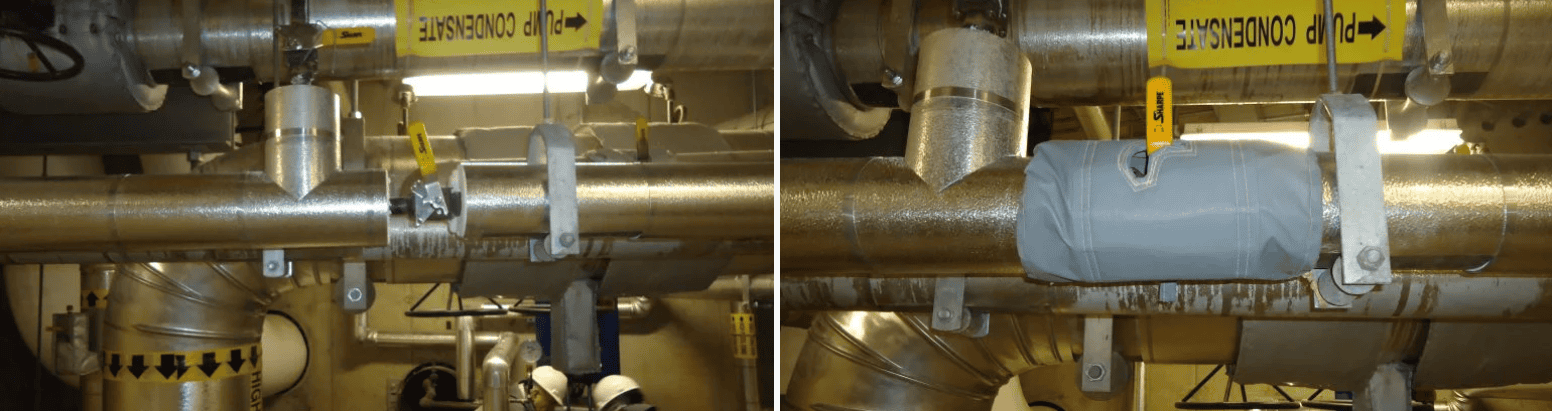

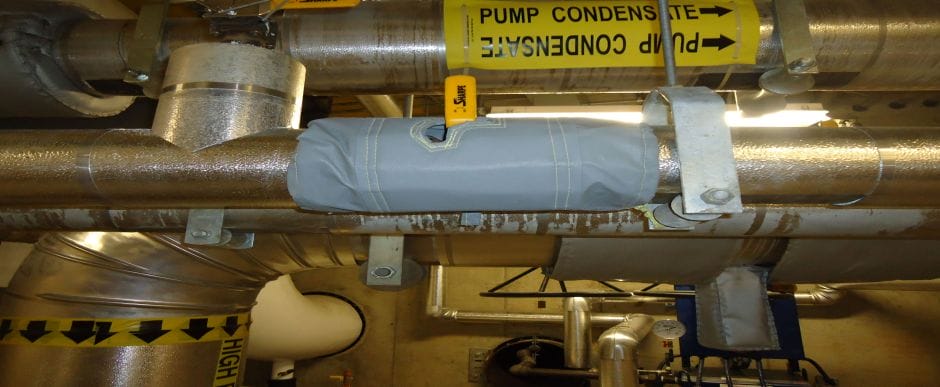

Ball valve insulation covers are custom-fabricated removable thermal jackets engineered specifically to fit industrial ball valves, handle levers, pneumatic actuators, and associated flange connections. Constructed from high-temperature resistant coated fiberglass outer fabrics and filled with high-efficiency thermal insulation blankets, these covers prevent radiant heat loss, lower plant energy consumption, and protect maintenance personnel from accidental contact burns. Designed with custom cutouts for operating handles and secure Velcro or strap fastening systems, they can be easily detached and reinstalled for routine valve servicing without disturbing surrounding pipe insulation.
2. Core Technical Parameters
-
Outer & Inner Fabric: High-temperature resistant PTFE, silicone, or vermiculite-coated fiberglass fabrics
-
Insulation Core: High-density needled fiberglass wool or ceramic fiber felt (custom thicknesses available)
-
Operating Temperature: Up to 550°C (1022°F) depending on material configuration
-
Fastening System: Heavy-duty Velcro flaps, retention straps, and custom cutouts for handles or actuators
-
Key Characteristics: Removable and reusable, custom-contoured valve fit, excellent thermal efficiency, weather and chemical resistant, personnel burn protection
3. Common Applications
-
Industrial process piping, steam distribution networks, and chemical plants featuring quarter-turn ball valves
-
HVAC systems, power generation facilities, and manufacturing plants requiring energy-saving thermal insulation on valves
-
Maintenance-heavy piping environments where frequent valve operation and inspection are required
