Product Overview

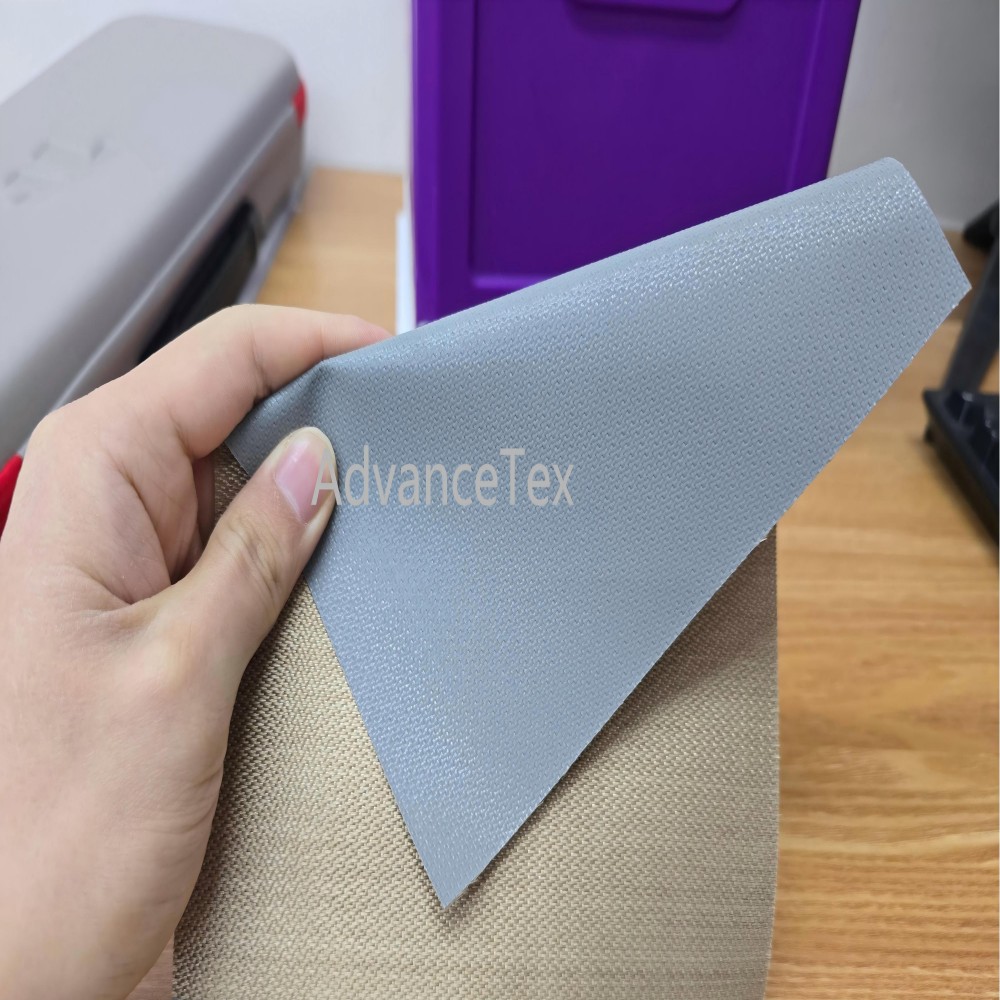

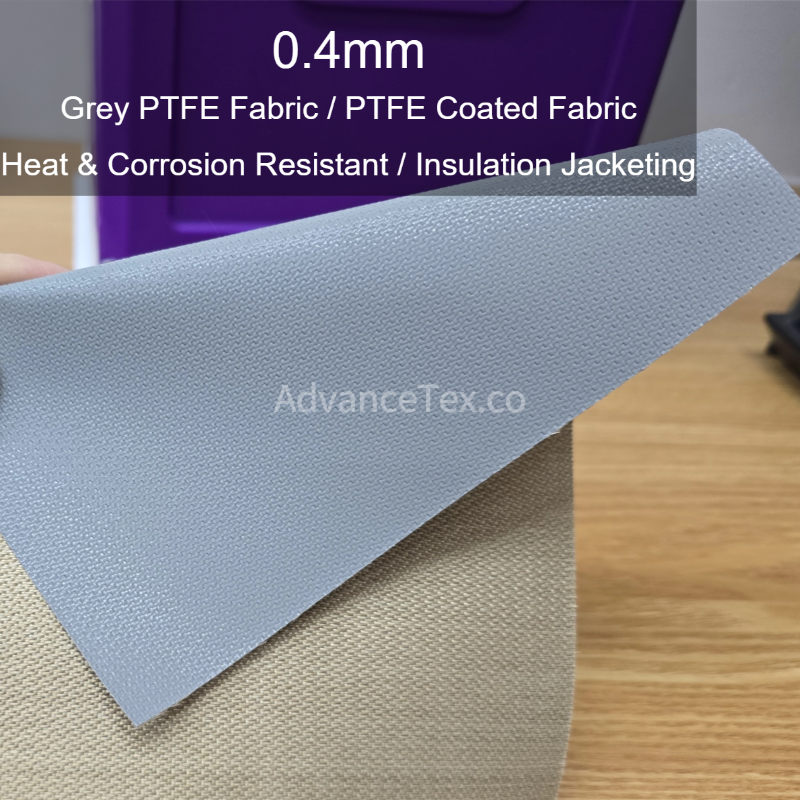

This ADP-004 variant features a silver grey PTFE coating applied strictly to a natural tan woven fiberglass substrate. Engineered with a nominal weight of 610 g/m², the uncoated natural reverse side provides flexibility and mechanical friction during industrial sewing processes, facilitating the fabrication of custom removable insulation jackets.
2. Key Specifications
-
Coating Color: Silver Gray (Top Side)
-
Base Fabric: Natural Tan Woven Fiberglass (Bottom Side)
-
Weight: 610 g/m²
-
Thickness: 0.40 mm
-
Temperature Resistance: -70°C to +260°C
3. Typical Applications
-
Removable Insulation Jackets & Covers
-
Valve & Flange Insulation Pads
-
High-Temperature Equipment Blankets

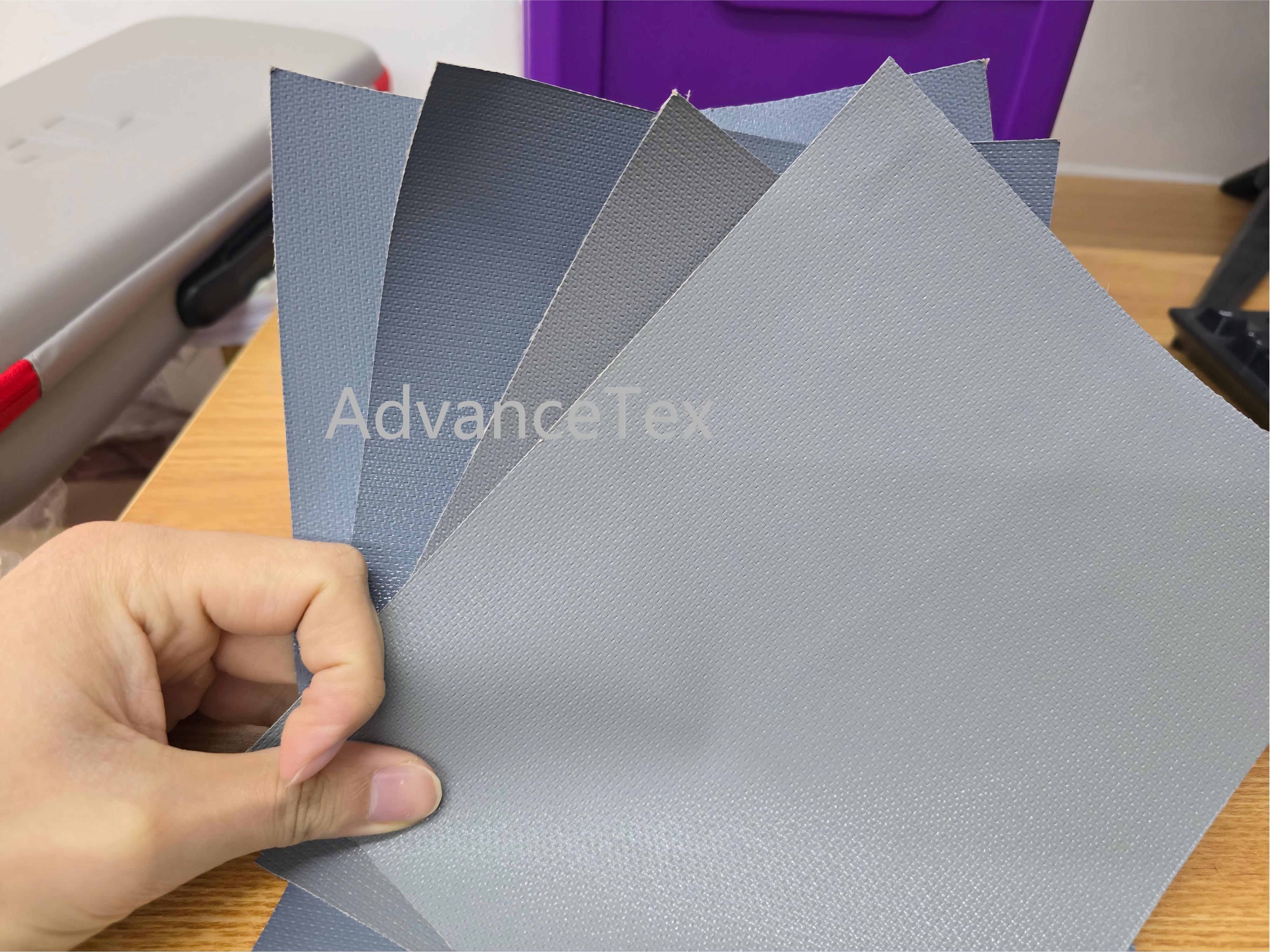

Compare the Four Grades
| Model | Coated face | Reverse side | Weight |
|---|---|---|---|
| ADP-001 | Dark grey | Black fiberglass | 570-580 g/m² |
| ADP-002 | Medium grey | Natural tan fiberglass | 560-580 g/m² |
| ADP-003 | Light grey | Natural tan fiberglass | 570-580 g/m² |
| ADP-004 | Silver grey | Natural tan fiberglass | 610 g/m² |
All four grades: 0.40 mm nominal thickness, PTFE on one side, coated-face service range -70°C to +260°C (manufacturer's stated range).
ADP-001 has a black base so cut edges do not show light-colored fibers. ADP-002 to 004 have a natural base; choose by the color your jackets require.
Free swatches
A4 swatches of all four grades are free; the buyer covers shipping.
Get a quote faster
Email jacky@advancetex.co with:
- What you are making (e.g. valve jackets, heated jackets)
- Grade or color, and quantity (m² or rolls)
- Destination country
- A photo of your current fabric, if you are replacing one
